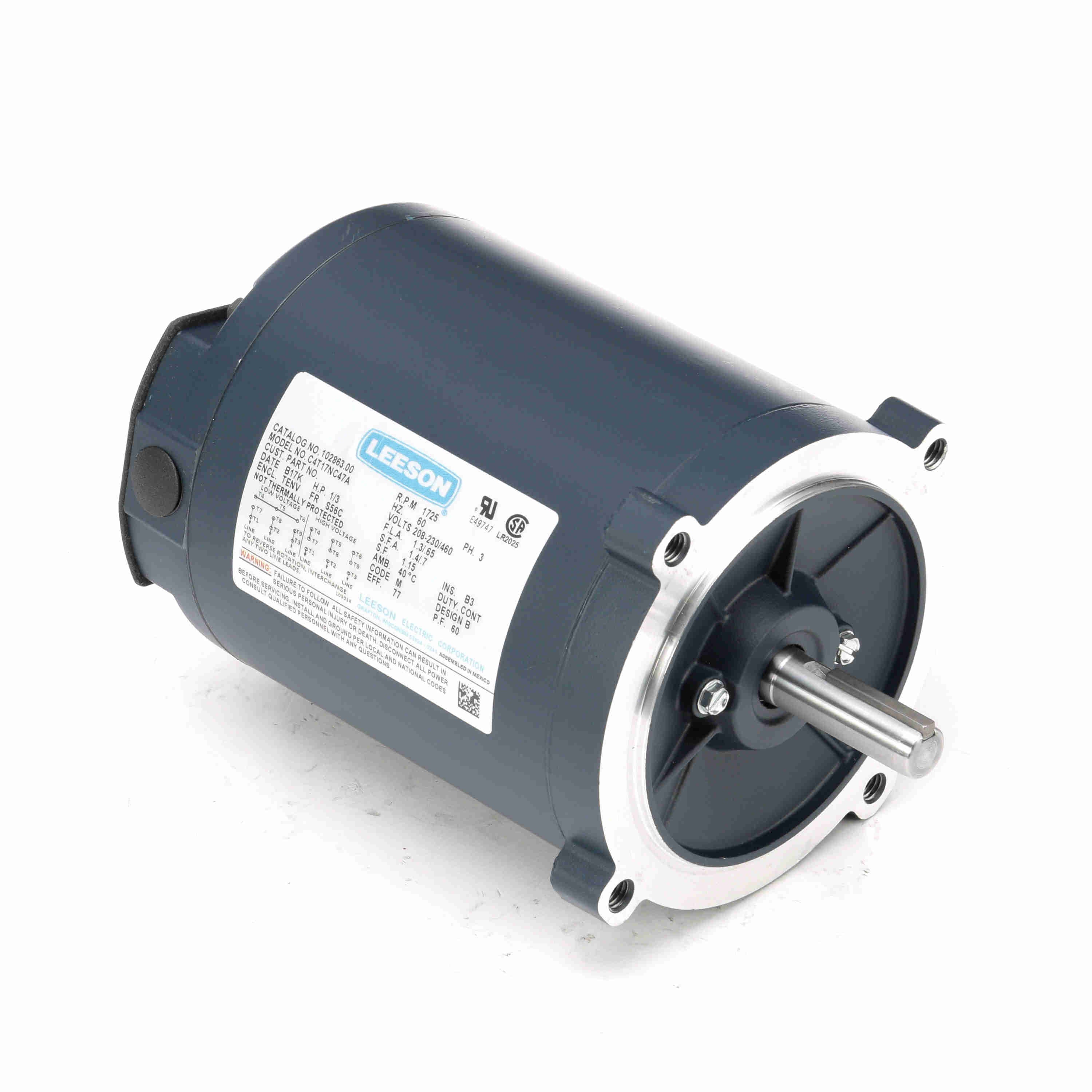

Leeson 102863.00 General Purpose Motor, 0.33 HP, 3 Ph, 60 Hz, 208-230/460 V, 1800 RPM, S56C Frame

Leeson 102863 General Purpose Motor, 0.33 HP, 3 Ph, 60 Hz, 208-230/460 V, 1800 RPM, S56C Frame

KEY FEATURES
UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
Heavy-duty, rolled steel construction ensures motor durability.
Permanently lubricated sealed bearings extend the lifetime of the motor.
Suitable for belt-driven or fan-on-shaft applications.

General Specifications
• Packaged Length: 13.75 IN
• Packaged Height: 8.75 IN
• Packaged Width: 7.88 IN
• Weight: 19.00 LB
• Country of Origin: Mexico

Nameplate Specifications
• Output HP: 0.33 Hp
• Frequency: 60 Hz
• Current: 1.3/0.65 A
• Service Factor: 1.15
• Efficiency: 77 %
• Duty: Continuous
• Design Code: B
• Frame: S56C
• Thermal Protection: No Protection
• Drive End Bearing Size: 6203
• UL: Recognized
• CE: N
• Number of Speeds: 1
• Output KW: 0.25 kW
• Voltage: 208-230/460 V
• Speed: 1725 rpm
• Phase: 3
• Power Factor: 60
• Insulation Class: B
• KVA Code: M
• Enclosure: Totally Enclosed Non Ventilated
• Ambient Temperature: 40 °C
• Opp Drive End Bearing Size: 6203
• CSA: Y
• IP Code: 43

Technical Specifications
• Electrical Type: Squirrel Cage Induction Run
• Poles: 4
• Resistance Main: 11.27 Ohms
• Motor Orientation: Horizontal
• Opp Drive End Bearing: Ball
• Shaft Type: NEMA 56
• Frame Length: 5.50 in
• Shaft Extension: 1.88 in
• Starting Method: Across The Line
• Rotation: Reversible
• Mounting: Round
• Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Overall Length: 9.56 in
• Shaft Diameter: 0.625 in
• Assembly/Box Mounting: F1 ONLY
