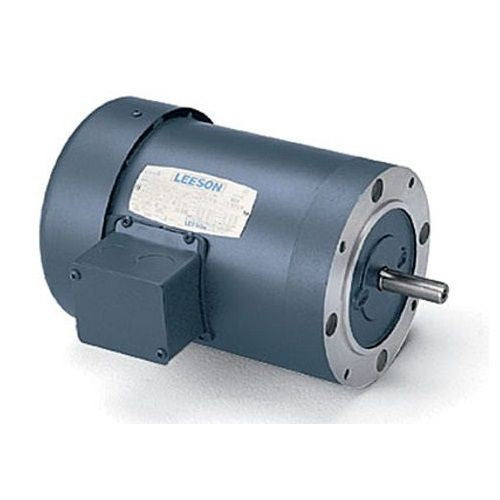

Leeson 102860 208-230/460V3Ph 1/2 Hp 1725 Rpm Motor

Product Description

The LEESON 102860 is a 208-230/460V3Ph 1/2 Hp 1725 Rpm Motor. This general-purpose motor is designed for applications where exposure is limited to water, dust, or mild corrosives. It operates on a three-phase power supply and delivers 0.50 horsepower. The motor features a totally enclosed fan-cooled enclosure and is suitable for continuous duty applications.

• UL recognized component listing and CSA certification ensures safety for various applications.
• Continuous duty cycle design allows maximum operation at the rated power specifications.
• Shielded ball bearings for direct coupled applications.

Product Highlights

This Leeson motor is ideal for pumps, compressors, fans, blowers, conveyors, machine tools and other industrial applications.

Product Information

Standard Information

• Brand: LEESON
• Manufacturer Part Number: 102860
• Country of Origin: Mexico

Technical Specifications

• Phase: 3
• Output HP: 0.50 Hp
• Output KW: 0.37 kW
• Voltage: 230/460 V
• Speed: 1725 rpm
• Service Factor: 1.15
• Frame: S56C
• Enclosure: Totally Enclosed Fan Cooled
• Thermal Protection: No Protection
• Efficiency: 73 %
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: 2.0/1.0 A
• Power Factor: 62
• Duty: Continuous
• Insulation Class: B
• Design Code: B
• KVA Code: L
• Drive End Bearing Size: 6203
• Opp Drive End Bearing Size: 6203
• UL: Recognized
• CSA: Y
• CE: N
• IP Code: 43
• Number of Speeds: 1
• Electrical Type: Squirrel Cage Induction Run
• Starting Method: Across The Line
• Poles: 4
• Rotation: Reversible
• Resistance Main: 8.91 Ohms
• Mounting: Round
• Motor Orientation: Horizontal
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: NEMA 56
• Overall Length: 10.19 in
• Frame Length: 5.50 in
• Shaft Diameter: 0.625 in
• Shaft Extension: 1.88 in
• Assembly/Box Mounting: F1 ONLY
• Frame Size NEMA: S56C
• Mount NEMA: C Face No Base
• Enclosure NEMA: TEFC
• Enclosure IEC: IP43
• Voltage Rating: 208 to 230/460 VAC
• Amperage Rating: 2.1 to 2.2/1.1 A
• Bearing Type: Ball
• Temperature Rating: 40 deg C
• Type: Type TF Continuous Duty
• Application: Pumps, Compressors, Fans, Blowers, Conveyors, Machine Tools and Other Industrial Applications
• Standard & Approvals: CSA Certified, UL Listed
• Horsepower: 0.5 hp
• Manufacturer: Leeson
• Part Number: 102860.00
