Product Description

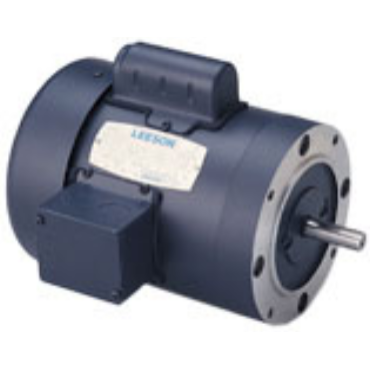

Leeson 101765.00 is a single-phase AC motor designed for general purpose applications. This motor features a totally enclosed fan cooled design, making it suitable for various environments. It operates at a power rating of 1/4 horsepower with a speed of 1,725 rpm.
- Enclosed design for better protection
- Constructed with rolled steel frame material
- High efficiency with a service factor of 1.15
Product Highlights
This motor is ideal for HVAC systems, pumps, and other machinery that require reliable performance. The high temperature, moisture-resistant copper windings and dynamically balanced rotor ensure smooth operation.
Product Information
Standard Information
-
Brand: Leeson
-
Model No.: 101765
Technical Specifications
-
Power: 1/4 HP
-
Voltage Rating: 115/208-230 V
-
RPM: 1725
-
Phase: Single Phase
-
Enclosure: TEFC
-
Frame Size: 48
-
Weight: 21.0 LB
-
Efficiency Group: 56
