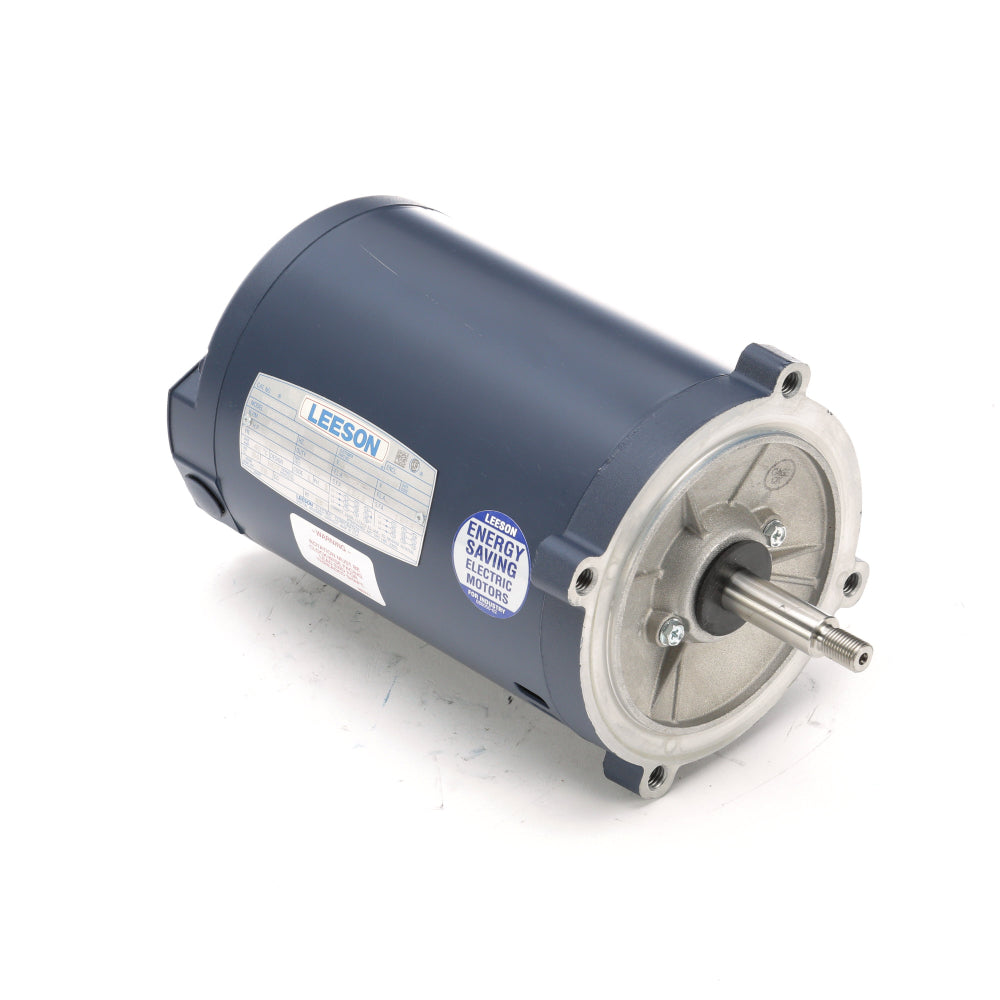

Leeson 101638.00 Jet Pump Motor, 1 HP, 3 Ph, 60 Hz, 230/460 V, 3600 RPM, S56J Frame

Leeson 101638 Jet Pump Motor, 1 HP, 3 Ph, 60 Hz, 230/460 V, 3600 RPM, S56J Frame

KEY FEATURES
NEMA 56 C face mounting flange
Threaded shafts made of 303 grade stainless steel
CCW rotation facing lead end
Double sealed bearings on shaft end
Terminal board with quick connects
Locked shaft end bearings
UL recognized and CSA certified

General Specifications
Packaged Length: 14.44 IN
Packaged Height: 10.88 IN
Weight: 25.00 LB
Packaged Width: 7.94 IN
Country of Origin: United States of America

Technical Specifications
• Electrical Type: Squirrel Cage Induction Run
• Starting Method: Across The Line
• Poles: 2
• Rotation: Reversible
• Resistance Main: 0 Ohms
• Mounting: Round
• Motor Orientation: Horizontal
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: J
• Overall Length: 11.44 in
• Frame Length: 6.75 in
• Shaft Diameter: 0.625 in
• Shaft Extension: 2.44 in
• Assembly/Box Mounting:F1 ONLY

Nameplate Specifications
• Output HP: 1 Hp
• Output KW: 0.75 kW
• Frequency: 60 Hz
• Voltage: 230/460 V
• Current: 3.0/1.5 A
• Speed: 3450 rpm
• Service Factor: 1.15
• Phase: 3
• Efficiency: 78 %
• Power Factor: 83
• Duty: Continuous
• Insulation Class: B
• Design Code: NO DESIGN CODE
• KVA Code: L
• Frame: S56J
• Enclosure: Drip Proof
• Thermal Protection: No Protection
• Ambient Temperature: 40 °C
• Drive End Bearing Size: 6203
• Opp Drive End Bearing Size: 6203
• UL: Recognized
• CSA: Y
• CE: N
• IP Code: 23
• Number of Speeds: 1
• Thermal Protection: No Protection
•Drive End Bearing Size: 6205
• UL: Recognized
•CE: N
• Ambient Temperature: 40 °C
• Opp Drive End Bearing Size: 6203
• CSA: Y
• IP Code: 55
