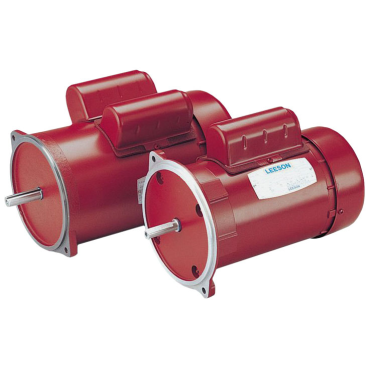

Leeson 101120.00 AC Single Phase Agricultural Duty Motors 1/2 HP

Product Description

The Leeson 101120.00 is an AC single phase agricultural duty motor designed for reliable performance in various applications. This motor operates at half a horsepower and can achieve speeds of up to one thousand seven hundred twenty-five revolutions per minute.

• Round mounting design
• TEFC enclosure for enhanced durability
• Replacement motor for auger drive systems

Product Highlights

This motor is ideal for agricultural settings, effectively powering equipment like poultry feed augers. It offers options for mechanical or solid-state starting switches, providing flexibility based on your operational needs.

Product Information

Standard Information

• Brand: Leeson
• MPN: 101120.00

Technical Specifications

• Power: 1/2 HP
• Voltage Rating: 115/208-230 V
• Speed: 1725 RPM
• Efficiency Group: 66
• Phase: Single Phase
• Poles: 4
• Frame: 48
• Weight: 25.0 LB
• Mounting: Round
• Full Load Amps: 8.4/4.1-4.2 A
• Insulation: F3
• Enclosure Designation: Totally Enclosed Fan Cooled
• Motor Application: Auger Drive
• Service Factor: 1.15
• Drive End Bearing: 6203
• Open End Bearing: 6203
• C Dimension: 10.72 in
• Rotation: Selective CCW
• Frame Material: Rolled Steel
