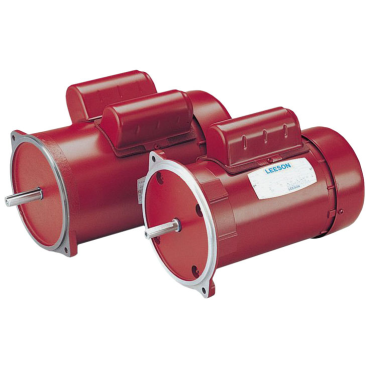

Leeson 101119.00 AC Single Phase Agricultural Duty Motors

Product Description

The Leeson 101119.00 is a single phase agricultural duty motor designed for various agricultural applications. This motor features a power output of three-fourths horsepower and operates at a speed of one thousand seven hundred twenty-five RPM. It is designed with a totally enclosed fan cooled (TEFC) enclosure, ensuring durability and protection from dust and moisture.

• Designed for poultry feed auger drive systems
• Special mounting options available
• Available in single phase configuration

Product Highlights

This motor is ideal for tasks requiring reliable and efficient performance in agricultural settings.

Product Information

Standard Information

• Brand: Leeson
• Model Number: 101119

Technical Specifications

• Power: 3/4 HP
• Frequency: 60 Hz
• Speed: 1725 RPM
• Frame Size: 48
• Phase: Single Phase
• Enclosure Type: TEFC
• Weight: 27.0 LB
• Voltage Rating: 115/208-230 V
• Efficiency Group: 70
• Service Factor: 1
• Insulation Class: F3
• Rotation: Selective CCW
• Full Load Amps: 10.8/5.3-5.4
• Drive End Bearing: 6203
• Open End Bearing: 6203
• Motor Application: Auger Drive
