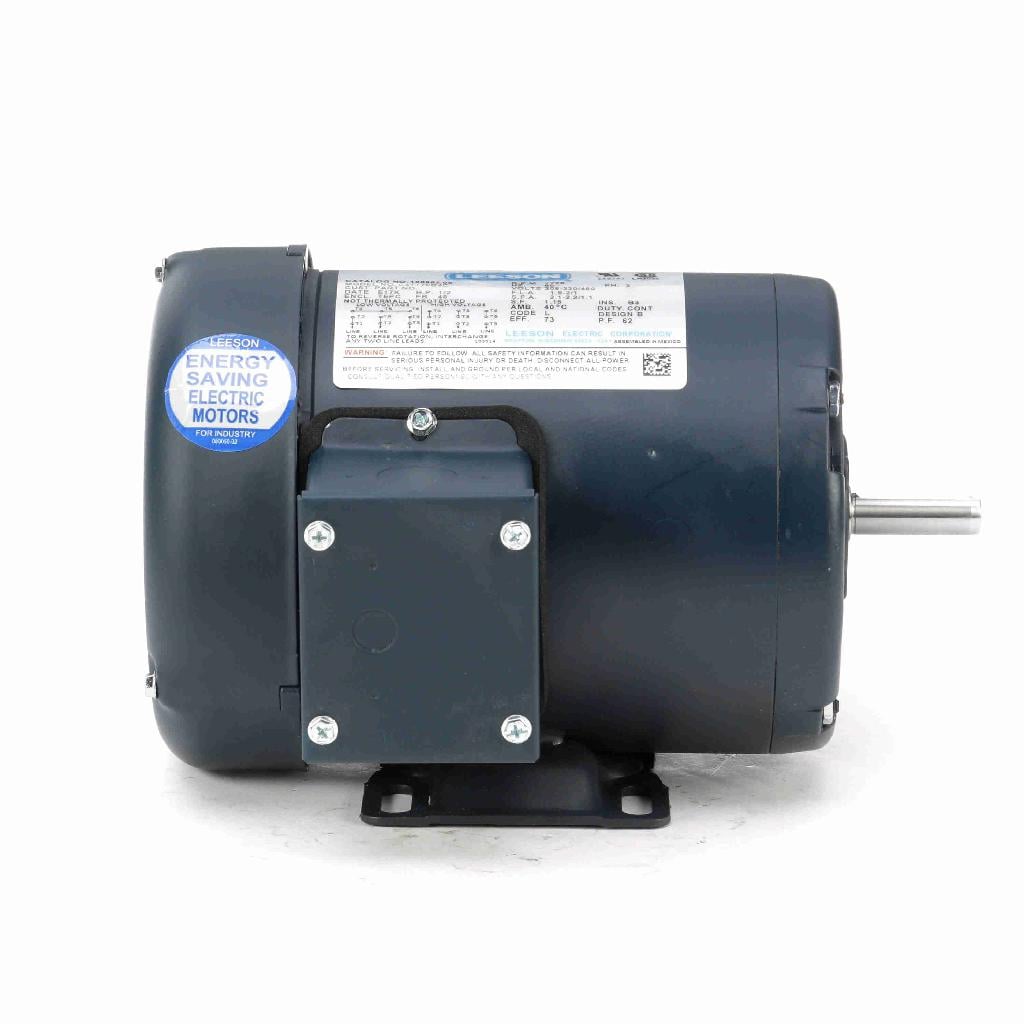

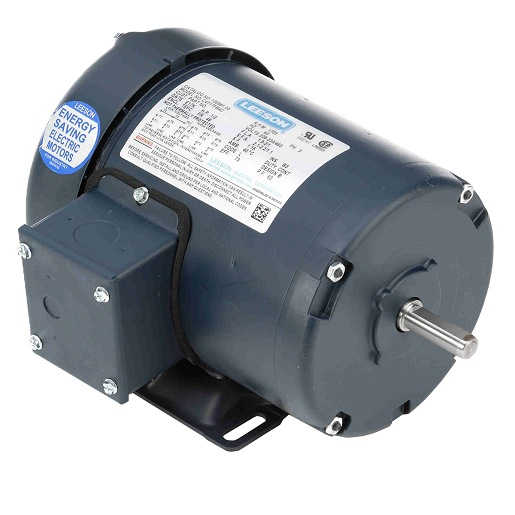

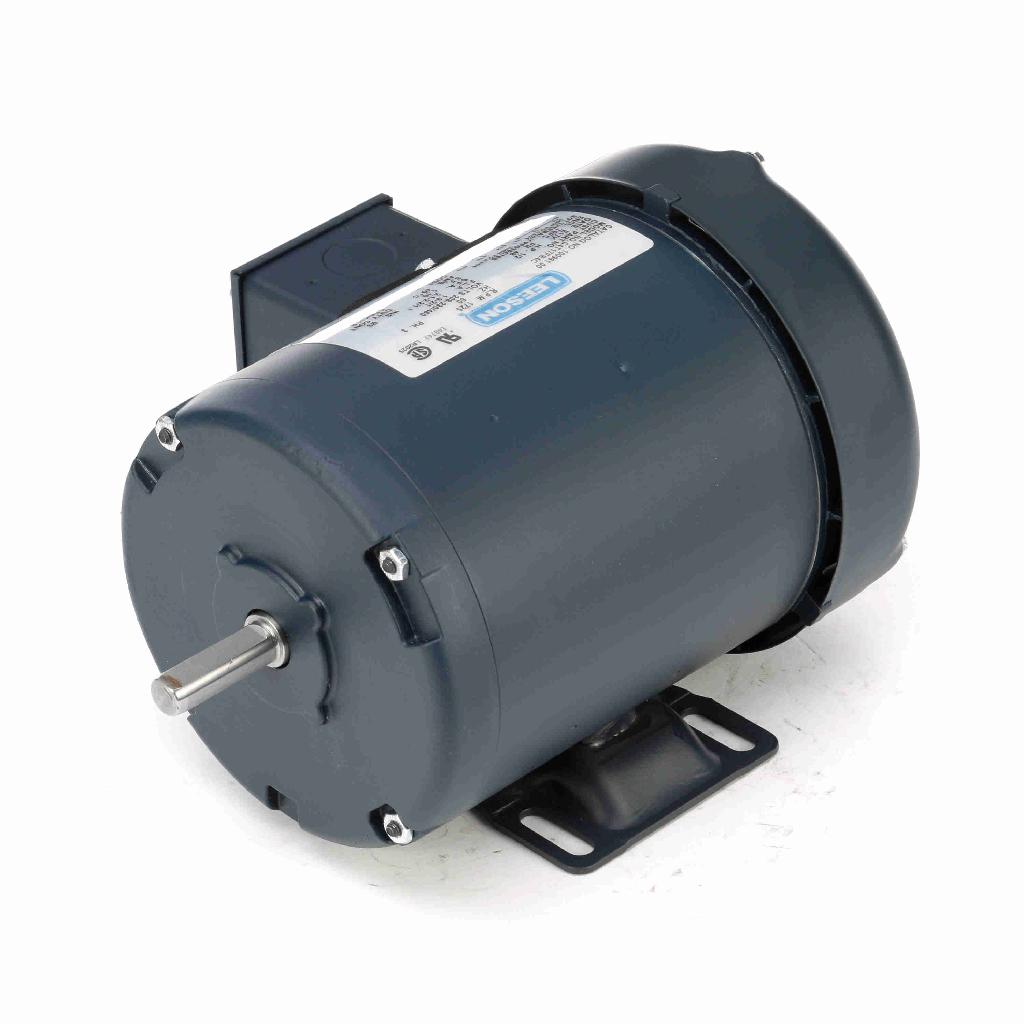

Leeson 100961 General Purpose Motor 0.50 HP 230/460 V 48 Frame

Product Description

The LEESON 100961 general purpose motor delivers 0.50 HP at 230/460 V and 1800 RPM. This three-phase motor features a 48 frame, TEFC enclosure, and a rigid base for horizontal mounting. It is designed for continuous duty and includes class B insulation, ensuring reliable performance in various applications. The motor is UL recognized and CSA certified.

• UL recognized component listing and CSA certification ensures safety for various applications.
• Continuous duty cycle design allows maximum operation at the rated power specifications.
• Class B Insulation protects motor for a maximum temperature rating.

Product Highlights

This general purpose AC motor is 0.50 HP, features a 48 frame, and operates at 230/460V. It is suitable for applications requiring a reliable and efficient motor.

Product Information

Standard Information

• Brand: LEESON
• Manufacturer Part Number: 100961
• Country of Origin: Mexico

Technical Specifications

• Phase: 3
• Output HP: 0.50 Hp
• Output KW: 0.37 kW
• Voltage: 230/460 V
• Speed: 1725 rpm
• Service Factor: 1.15
• Frame: 48
• Enclosure: TEFC
• Thermal Protection: No Protection
• Efficiency: 73 %
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: 2.0/1.0 A
• Power Factor: 62
• Duty: Continuous
• Insulation Class: B
• Design Code: B
• KVA Code: L
• Drive End Bearing Size: 6203
• Opp Drive End Bearing Size: 6203
• UL: Recognized
• CSA: Y
• CE: N
• IP Code: 43
• Number of Speeds: 1
• Electrical Type: Squirrel Cage Induction Run
• Starting Method: Across The Line
• Poles: 4
• Rotation: Reversible
• Resistance Main: 8.91 Ohms
• Mounting: Rigid Base
• Motor Orientation: Horizontal
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: NEMA 48
• Overall Length: 9.56 in
• Frame Length: 5.25 in
• Shaft Diameter: 0.500 in
• Shaft Extension: 1.5 in
• Assembly/Box Mounting: F1 ONLY
• Actual Rated Input Voltage: 208-230/460 V
• Rated Load (HP): 1/2
• AC Frequency Rating: 60 Hz
• AC Motor Type: Induction/Asynchronous
• Mounting Type: Foot-Mounted, Base-Mounted
• Brand: LEESON
• Reversible/Non-Reversible: Reversible
• Current Type: AC
• Model: 100961.00
• Nominal Rated Input Voltage: 460 V, 208 V, 230 V
• AC Phase: Three Phase
• Manufacturer Name: REGAL REXNORD
• Hertz: 60
• Sync RPM: 1800
• Frame Profile: NEMA
• Mounting Method: Rigid
• Base to Center Height - Millimeter: 76.2
• Base: Yes
• Efficiency Full Load: 73
• Inch - Metric: Inch
• Category - BDI: Three Phase AC Motors
• Product Group - BDI: M04104
• Noun: Motor
• Keyword String: Alternating Current General Purpose
• Manufacturer URL: https://www.regalrexnord.com
• Manufacturer Item Number: 100961.00
• Manufacturer Internal Number: 100961.00
• Base to Center of Shaft: 3 Inch | 76.2 Millimeter
