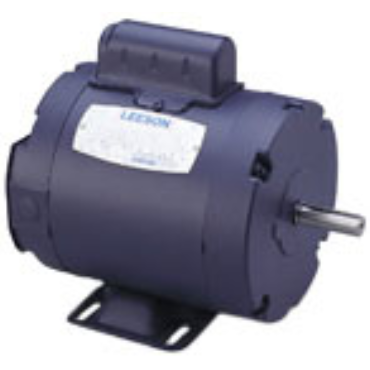

Leeson 100362.00 AC Single Phase Totally Enclosed Motors

Product Description

Leeson 100362.00 AC Single Phase Totally Enclosed Motor is designed for various general purposes. This motor features a TENV enclosure to protect against contaminants. It operates on single-phase power with a capacity of one-third horsepower and achieves a speed of three thousand four hundred fifty RPM.

• High temperature, moisture-resistant copper windings
• Dynamically balanced rotor for quiet operation
• Rigid mounting for various applications

Product Highlights

Ideal for HVAC systems, pump drives, and other general-purpose applications.

Product Information

Standard Information

• Brand: Leeson
• Model Number: 100362

Technical Specifications

• Enclosure: TENV
• Voltage Rating: 115/208-230 V
• Frame Size: 48
• Full Load Amps: 4/2
• Weight: 27.0 LB
• Efficiency Group: 69
• Service Factor: 1
• Rotation: Selective CCW
