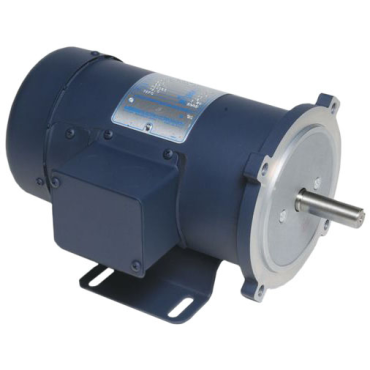

Leeson 098069.00 SCR Rated Permanent Magnet DC Motor

Product Description

The Leeson 098069.00 is a SCR rated permanent magnet DC motor designed for high efficiency. This motor is suitable for applications requiring adjustable speed and constant torque. It features a robust construction and is built to last.

• DC PM Motor for variable speed applications
• Rated at 1750 RPM and 3/4 HP
• 180 VDC armature voltage

Product Highlights

The Leeson 098069.00 is ideal for use with SCR controllers, making it perfect for scenarios that need consistent torque over varying speeds.

Product Information

Standard Information

• Brand: Leeson
• Part Number: 103381733

Technical Specifications

• HP: 3/4 hp
• Frame: SS56C
• Base Speed: 1750 rpm
• Field Voltage: 180 V
• Control Voltage AC Input: 230 V
• Winding: Permanent Magnet
• Mounting: C-Face - Removable Base
• Weight: 36.0 LB
• C Dimension: 13.81 in
• Enclosure: TEFC - Totally Enclosed Fan Cooled
• Service Factor: 1
