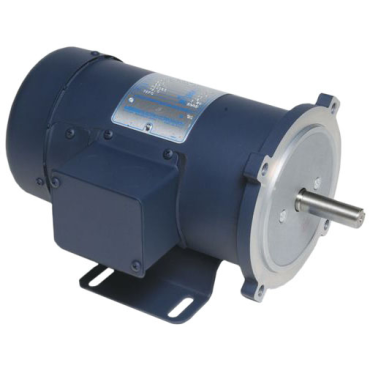

Leeson 098032.00 SCR Rated Permanent Magnet DC Motor 3/4 hp 1750 RPM

Product Description

Leeson 098032.00 is a SCR rated permanent magnet direct current motor designed for various applications requiring speed adjustment and consistent torque. This motor operates at 1750 RPM and has a power rating of three-quarters of a horsepower with a ninety volt DC armature. The compact C-face design allows for easy mounting.

• Three-quarters horsepower power rating
• Ninety volt DC armature voltage
• TEFC enclosure for protection against dust and moisture

Product Highlights

This motor is suitable for general purpose applications and comes with a heavy-duty removable base.

Product Information

Standard Information

• Brand: Leeson
• Model No.: 098032

Technical Specifications

• Rated Power: 3/4 hp
• Base Speed: 1750 RPM
• Winding Type: Permanent Magnet
• Frame: SS56C
• Armature Voltage: 90 V
• C Dimension: 13.81 inches
• Weight: 39.0 LB
• Service Factor: 1
• Field Weakened RPM: 1750 RPM
