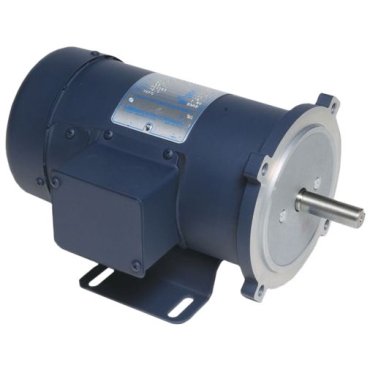

Leeson 098008.00 SCR Rated Permanent Magnet DC Motor 1/2 hp 1750 rpm

Product Description

The Leeson 098008.00 is a SCR Rated Permanent Magnet DC Motor designed for high voltage applications. It operates at one-half horsepower with a base speed of one thousand seven hundred fifty RPM. Commonly used in various industries, this motor is ideal for applications needing speed control and reversing capabilities.

• High voltage operation with adjustable speed
• Built for general-purpose use across industries
• Durable construction with easy maintenance

Product Highlights

This motor features a unique brush holder design for easy brush access and is fitted with oversized brushes for extended life. The robust construction ensures durability in various setups.

Product Information

Standard Information

• Brand: Leeson
• Part Number: 098008.00

Technical Specifications

• Frame: SS56C
• Power Rating: 1/2 hp
• Base Speed: 1750 rpm
• Armature Voltage: 180 V
• Field Voltage: 180 V
• Service Factor: 1
• Mounting Type: C-Face - Removable Base
• Weight: 25.0 LB
• Control Voltage AC Input: 230 V
