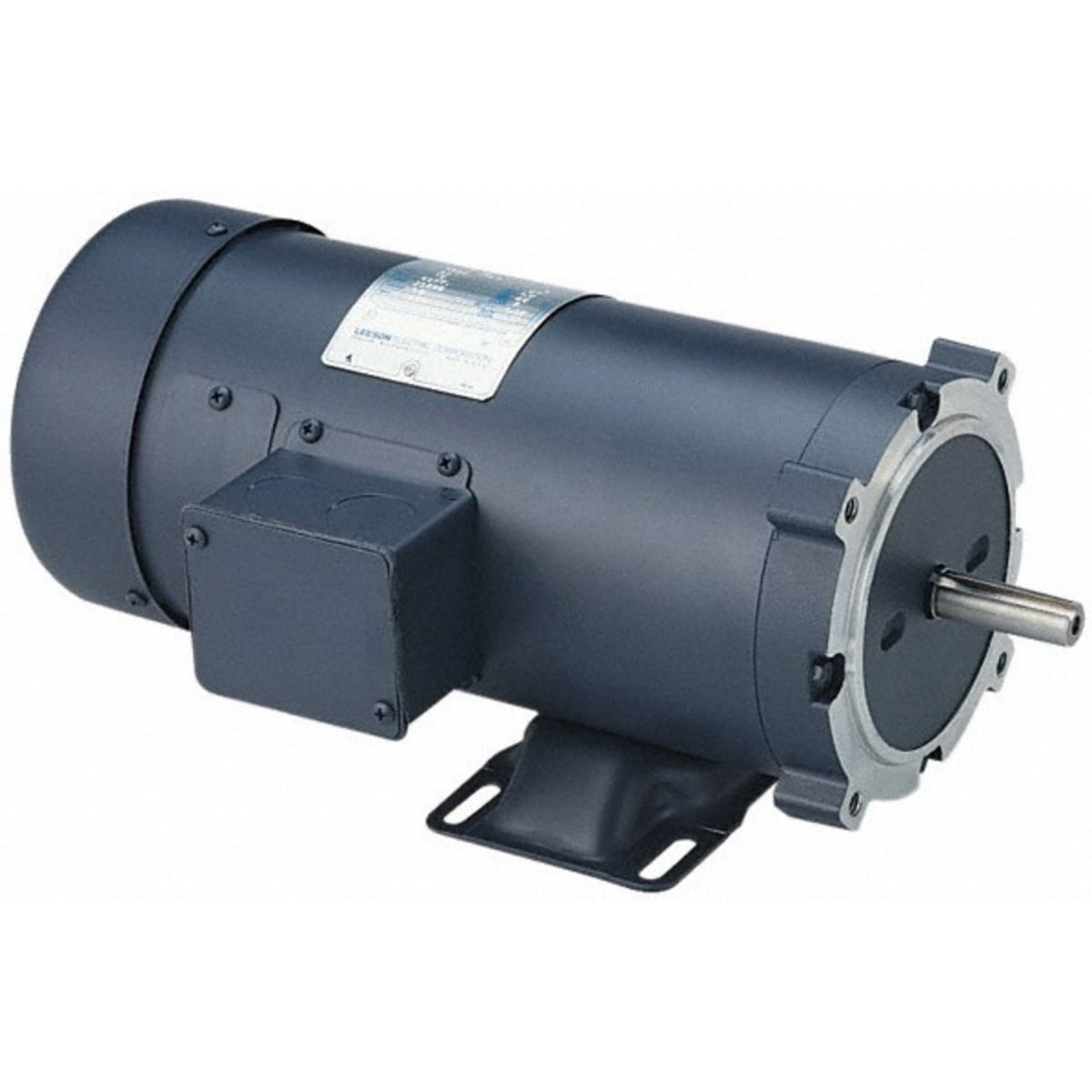

LEESON 098008.00 C-Face SCR Rated DC Motor, 1/2 HP, 1750 rpm, 180 VDC, 56C Frame

Product Description

The LEESON 098008.00 is a C-Face SCR rated DC motor, designed for various industrial applications. This motor provides robust torque at one hundred ninety-seven in-lb and is suited for continuous duty with a half horsepower rating. It operates at one hundred eighty volts DC and draws 2.5 amps at a speed of one thousand seven hundred fifty rpm. Its totally enclosed fan-cooled design makes it suitable for tough environments.

• Continuous duty rated for reliability
• Reversible with a removable base for easy mounting
• Insulation class F for thermal protection

Product Highlights

This motor features a rugged design with a rolled steel frame and sealed bearings, ideal for applications that include pumps, conveyors, and textile machinery.

Product Information

Standard Information

• Brand: LEESON
• MPN: 098008.00

Technical Specifications

• Power Rating: 0.5 HP
• Voltage Rating: 180 VDC
• Amperage Rating: 2.5 A
• Speed: 1750 rpm
• Frame Size: 56C
• Torque Rating: 197 in-lb
• Dimensions: 11.81 in L x 6.5 in W x 6.32 in H
• Enclosure Type: Totally Enclosed Fan Cooled
• Service Factor: 1
• Rotational Direction: Reversible
• Insulation Class: Class F
• Material: Rolled Steel
• Temperature Rating: 40 °C
• Bearing Type: Sealed
