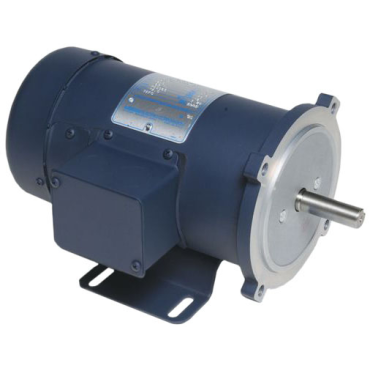

Leeson 098005.00 SCR Rated Permanent Magnet DC Motor

Product Description

The Leeson SCR Rated Permanent Magnet DC Motor with MPN 098005.00 is designed for high voltage applications typically utilizing an SCR controller. This motor suits cases that require variable speed and consistent torque across the entire speed spectrum.

• Field voltage of one hundred eighty volts
• Base speed of one thousand seven hundred fifty revolutions per minute
• Power rating of one-third horsepower

Product Highlights

Ideal for general-purpose applications, this motor provides reliable performance in environments demanding efficient speed control.

Product Information

Standard Information

• Brand: Leeson
• MPN: 098005.00
• Power Rating: 1/3 hp
• Armature Voltage: 180 V
• Enclosure Designation: TEFC - Totally Enclosed Fan Cooled

Technical Specifications

• Armature Amps Full Load: 1.7 A
• C Dimension: 11.31 in
• Frame: SS56C
• Weight: 26.0 LB
• Service Factor: 1
• Winding: Permanent Magnet
• Motor Application: General Purpose
• Control Voltage AC Input: 230 V
