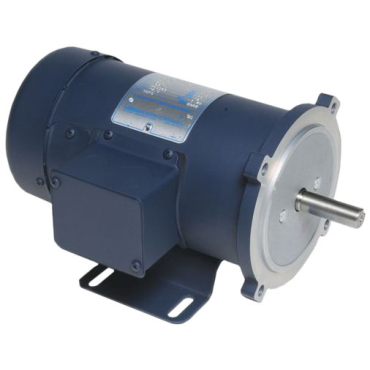

Leeson 098004.00 SCR Rated Permanent Magnet DC Motor 1/3 hp 1750 RPM

Product Description

The Leeson 098004.00 is a SCR-rated permanent magnet DC motor designed for high efficiency. It operates at a base speed of one thousand seven hundred fifty RPM, making it suitable for various applications requiring adjustable speed and consistent torque across the entire speed range.

• Powerful 1/3 horsepower design
• Convenient C-face mounting with a removable base
• Durable TEFC enclosure for reliable performance

Product Highlights

This motor features a unique brush holder design for easy servicing and oversized brushes to extend lifespan. It is particularly effective in applications where motor speed adjustments are essential.

Product Information

Standard Information

• Brand: Leeson
• MPN: 098004.00

Technical Specifications

• Mounting: C-Face - Removable Base
• Enclosure Designation: TEFC - Totally Enclosed Fan Cooled
• Base Speed: 1750 RPM
• Winding: Permanent Magnet
• Frame: SS56C
• Field Voltage: 90 V
• Service Factor: 1
• Motor Application: General Purpose
• Armature Amps Full Load: 3.5 A
• Control Voltage AC Input: 115 V
• C Dimension: 11.31 inches
• Weight: 26.0 LB
• EAN or UPC: 691720000953
