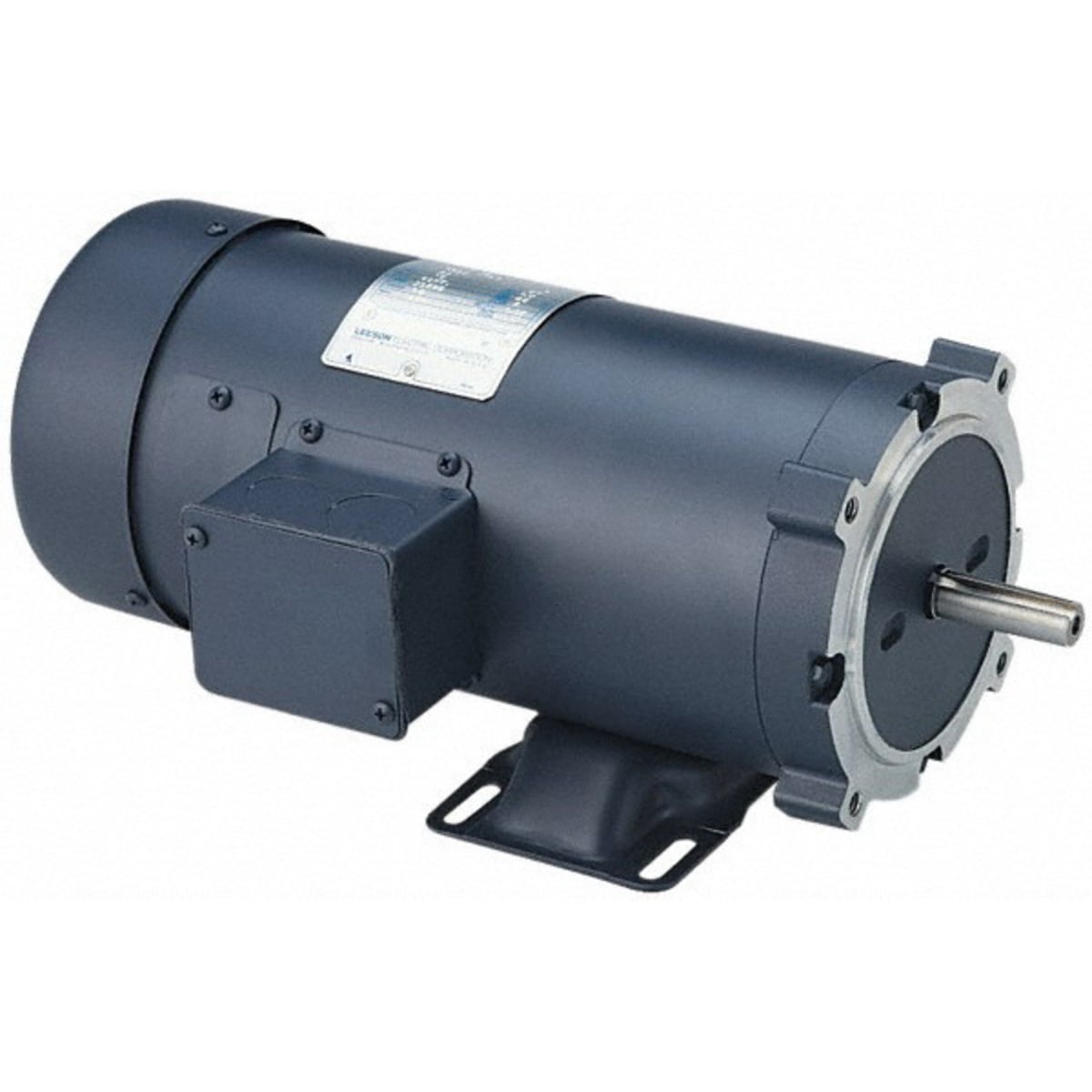

LEESON 098003.00 DC Motor 0.19 kW (4-Pole Continuous Duty) Replacement MPN

Product Description

LEESON 098003.00 is a 4-pole continuous duty DC motor. It has a power rating of 0.19 kW and operates on 180 VDC. This model provides a torque of 9 in-lb and achieves a speed of 1750 rpm.

• Meets UL and CE standards.
• Features a totally enclosed fan-cooled enclosure for optimal cooling.
• Reversible rotation for diverse applications.

Product Highlights

This DC motor is ideal for various applications, including pumps, conveyors, and textile machinery.

Product Information

Standard Information

• Brand: LEESON
• Manufacturer: Leeson Electric

Technical Specifications

• MPN: 098003.00
• Frame Size: SS56C
• Power Rating: 0.19 kW
• Voltage Rating: 180 VDC
• Amperage Rating: 1.4 A
• Speed Rating: 1750 rpm
• Torque Rating: 9 in-lb
• Dimensions: 11.31 in L x 6.32 in H
• Shaft Size: 0.625 in Dia x 2.06 in L
• Rotation: Reversible
• Enclosure Type: Totally Enclosed Fan Cooled
• Service Factor: 1
• Temperature Rating: 40 deg C
• Insulation Class: Class F
• Bearing Type: Ball
• Weight: 25 lb
