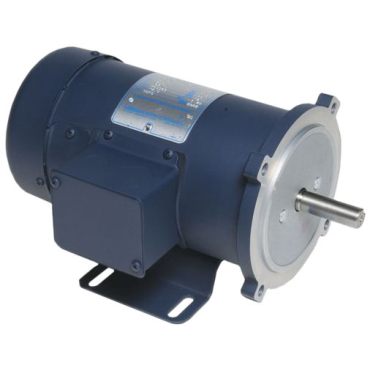

Leeson 098002.00 SCR Rated Permanent Magnet DC Motor 1/4 hp 90 VDC Armature

Product Description

The Leeson 098002.00 is a SCR Rated Permanent Magnet DC Motor designed for high voltage applications. It is typically used with an SCR controller for adjustable speeds and constant torque. This motor is ideal for applications requiring motor speed adjustment and reversing capabilities.

• High voltage permanent magnet motor for various industrial applications
• 1750 RPM and 1/4 hp suitable for a range of tasks
• TEFC design to protect against dust and moisture

Product Highlights

Product Information

Standard Information

• Brand: Leeson
• Part Number: 098002.00

Technical Specifications

• Model No.: 098002
• Field Voltage: 90 V
• Enclosure: TEFC
• Mounting: C-Face - Removable Base
• HP: 1/4 hp
• Armature Voltage: 90 V
• Field Weakened RPM: 1750 RPM
• C Dimension: 10.81 in
• Armature Amps Full Load: 2.5 A
• Frame: SS56C
• Motor Application: General Purpose
• Control Voltage AC Input: 115 V
• Base Speed: 1750 RPM
• Service Factor: 1
• Winding: Permanent Magnet
• Weight: 12.0 LB
• EAN or UPC: 691720000939
