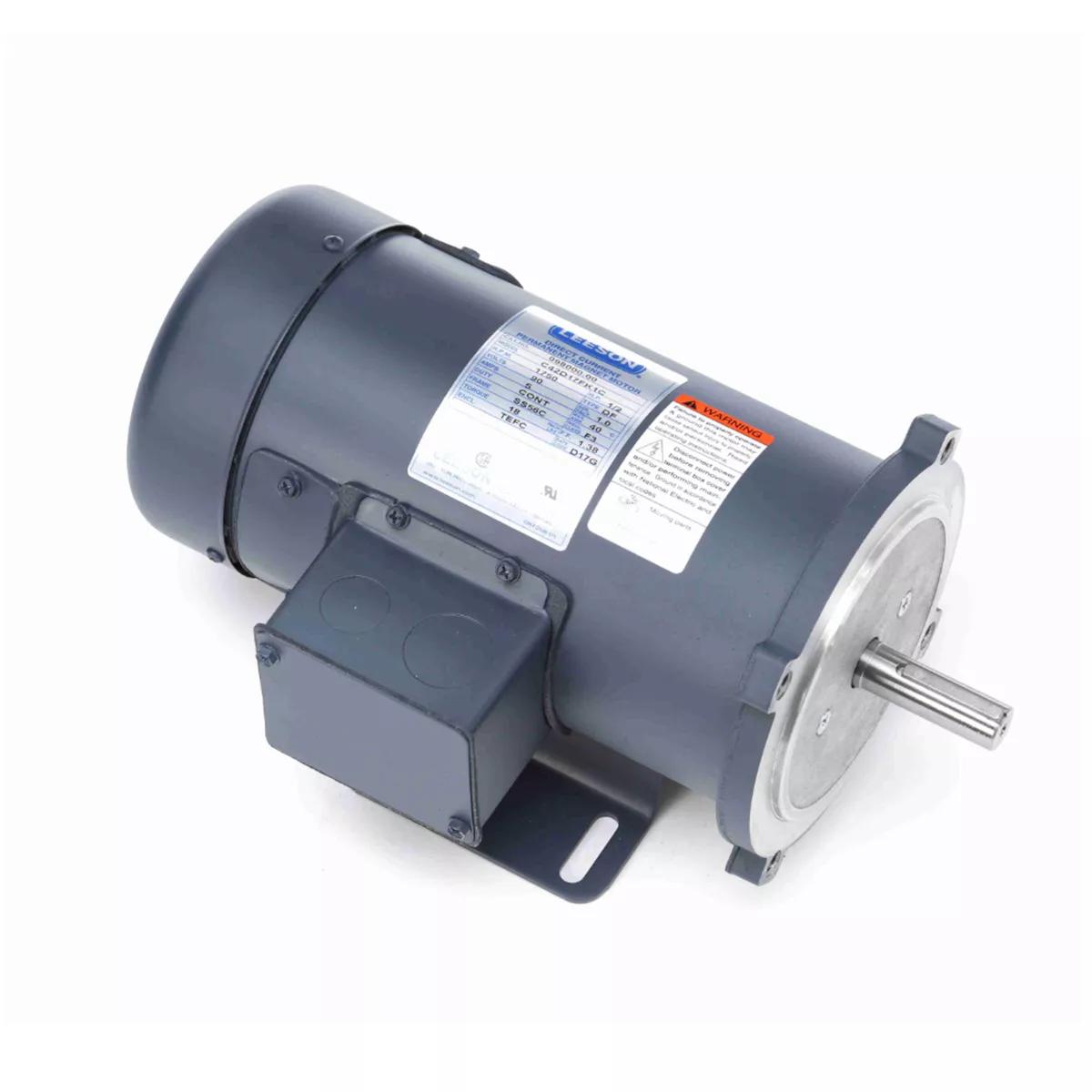

LEESON 098000.00 C-Face SCR Rated DC Motor 1/2 HP 1750 RPM

Product Description

The LEESON 098000.00 is a C-Face SCR rated DC motor. This motor offers a power rating of one-half horsepower and operates at a speed of one thousand seven hundred fifty revolutions per minute. It is designed to fit various industrial applications effectively.

• Standard C-Face mounting
• Reversible rotation capability
• Sealed bearing for durability

Product Highlights

This motor is suitable for applications such as pumps, conveyors, and medical equipment. It features a robust construction that supports reliable operation under varying conditions.

Product Information

Standard Information

• Brand: LEESON
• MPN: 098000.00

Technical Specifications

• Frame Size: 56C
• Speed: 1750 rpm
• Power Rating: 1/2 hp
• Voltage Rating: 90 VDC
• Amperage Rating: 5 A
• Torque Rating: 190 in-lb
• Service Factor: 1
• Enclosure Type: Totally Enclosed Fan-Cooled
• Material: Rolled Steel
• Dimensions: 11.81 in L x 6.5 in W x 6.32 in H
• Shaft Size: 5/8 in
• Rotation: Reversible
• Insulation Class: Class F
• Temperature Rating: 40 °C
