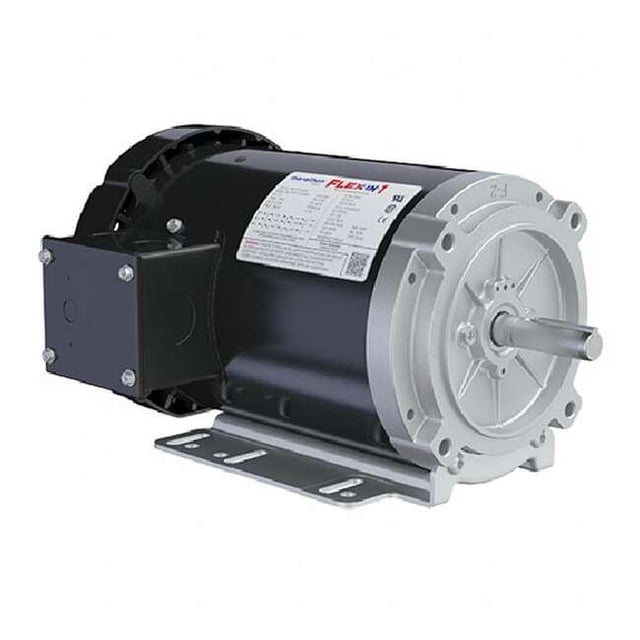

Leeson 056T17F15951 Flex-In-1 GP Motor 1 HP

Product Description

The LEESON 056T17F15951 Flex-In-1 GP Motor is a general-purpose AC motor with 1 HP and a 56HC frame size. This three-phase motor operates at 208-230/460V and 50/60 Hz. It features a TEFC enclosure and is designed with a NEMA frame profile. The motor is foot mounted and has a 5/8" shaft diameter.

• One FLEX-IN-1™ motor replaces 18 general purpose motors
• The patented FLEX-IN-1 motor is easily configured into three mounting styles: F1, F2 & F3
• Inverter duty capable - 10:1 CT for TEFC - 2:1 CT for DP

Product Highlights

General purpose 1 HP motor with a 56HC frame size, designed for versatile mounting and inverter duty applications.

Product Information

Standard Information

• Brand: LEESON
• Manufacturer Part Number: 056T17F15951
• Country of Origin: Mexico

Technical Specifications

• Phase: 3
• Output HP: 1 & 1 Hp
• Output KW: 0.75 & 0.75 kW
• Voltage: 208-230/460 & 190/380 V
• Speed: 1725 & 1425 rpm
• Service Factor: 1.15 & 1.00
• Frame: 56HC
• Enclosure: Totally Enclosed Fan Cooled
• Thermal Protection: No Protection
• Efficiency: 85.9 & 84 %
• Ambient Temperature: 40 °C
• Frequency: 60 & 50 Hz
• Current: 3.10-3.13/1.55 & 3.6/1.8 A
• Power Factor: 71.8
• Duty: Continuous
• Insulation Class: F
• Design Code: B
• KVA Code: P
• Drive End Bearing Size: 6203
• Opp Drive End Bearing Size: 6203
• UL: Recognized
• CSA: Y
• CE: Y
• IP Code: 43
• Number of Speeds: 1
• Electrical Type: Squirrel Cage Inverter Rated
• Starting Method: Line Or Inverter
• Poles: 4
• Rotation: Reversible
• Resistance Main: 11.8 Ohms
• Mounting: Bolt-on Base
• Motor Orientation: Horizontal Or Up Or Down
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: NEMA 56
• Shaft Diameter: 0.625 in
• Assembly/Box Mounting: F1 F2/F3 CAPABLE
• Inverter Load: CONSTANT 10:1
• Sync RPM: 1800
• Current Type: AC
• Frame Profile: NEMA
• Mounting Method: C-Face | Foot Mounted
• Base: Yes
• Efficiency Full Load: 85.9
• Inch - Metric: Inch
• Other Features: FLEX-IN-1 Series
• Standards: CE, CSA, UL
