Leeson 056T17F15950 Flex-In-1™ General Purpose Motor 0.75 & 0.75 HP

Product Description

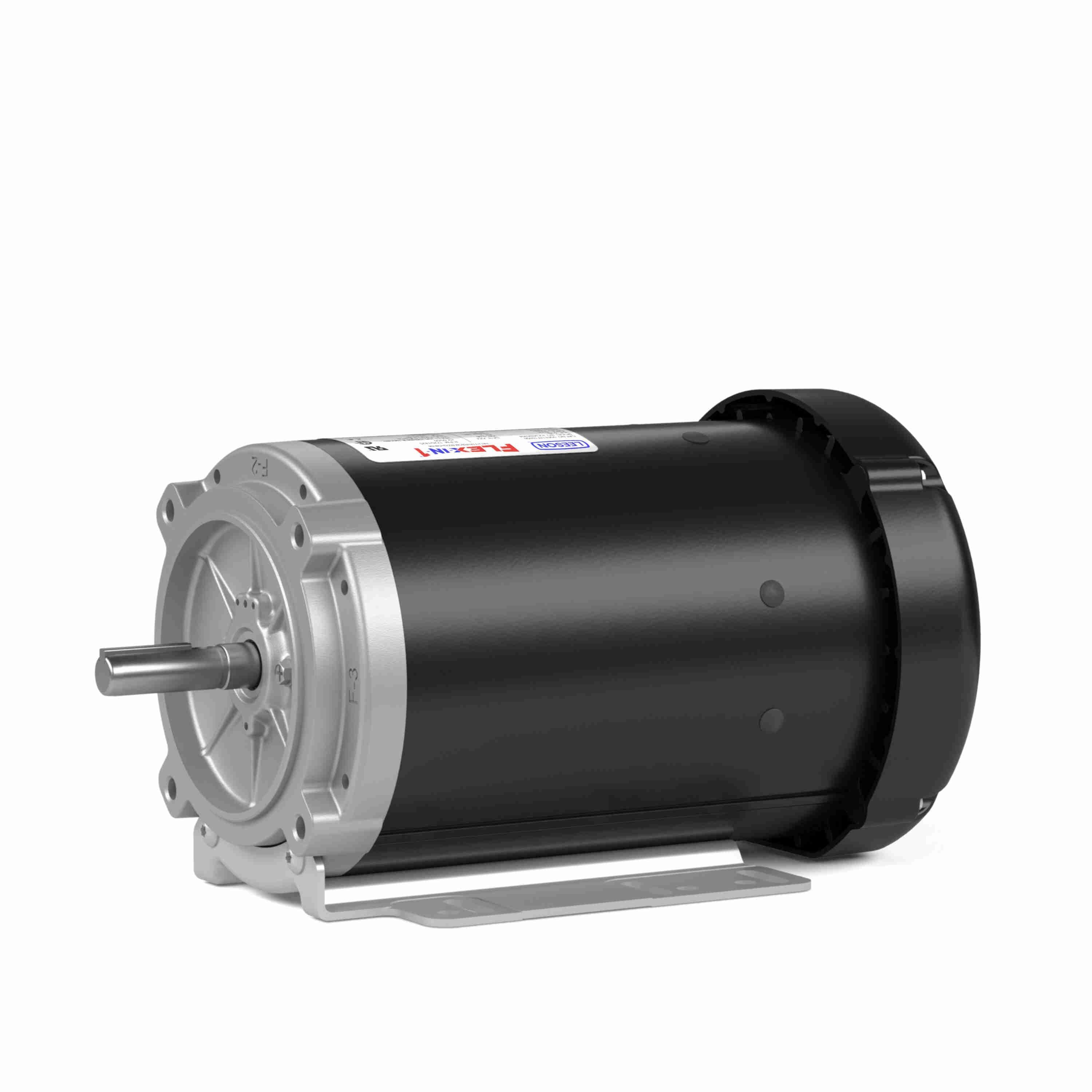

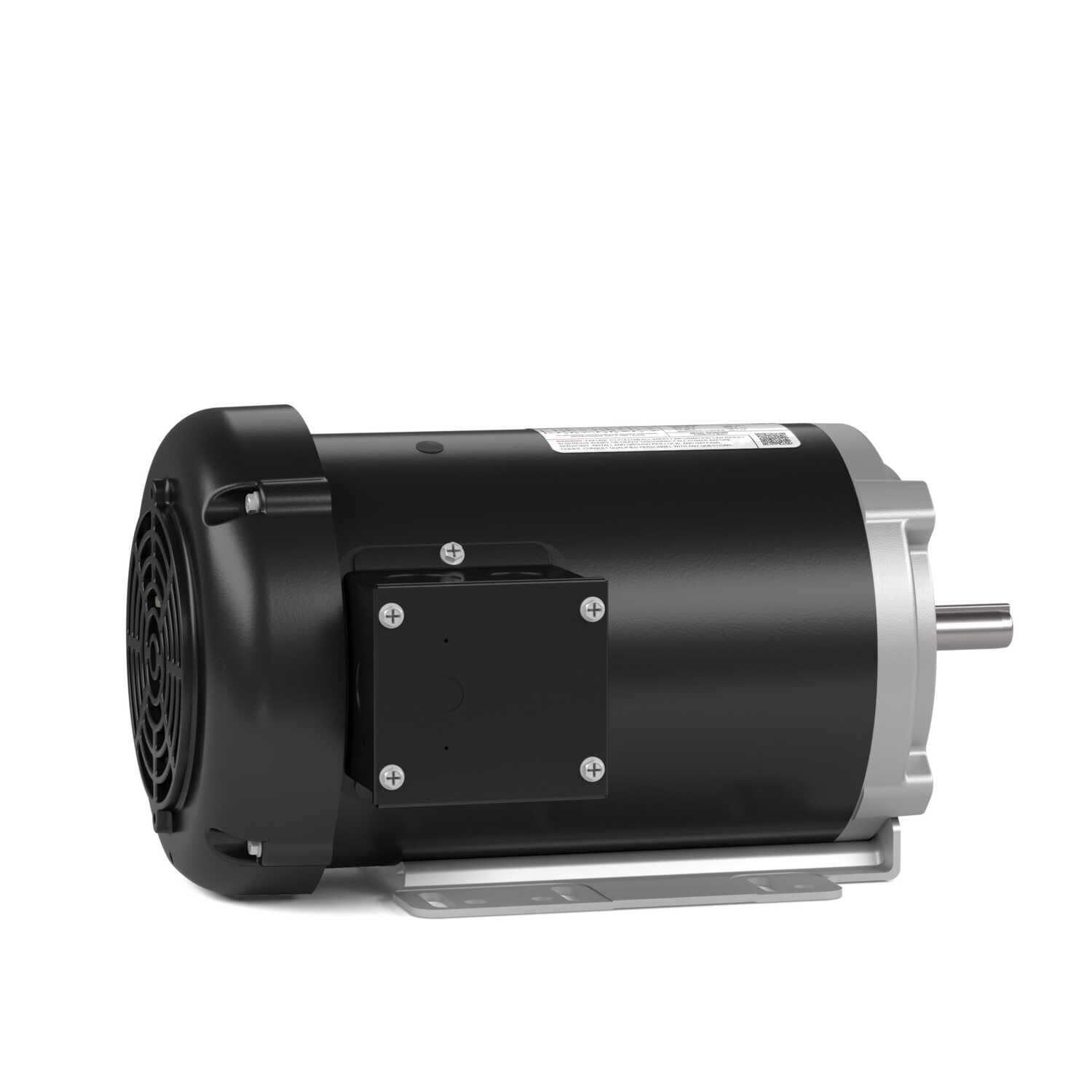

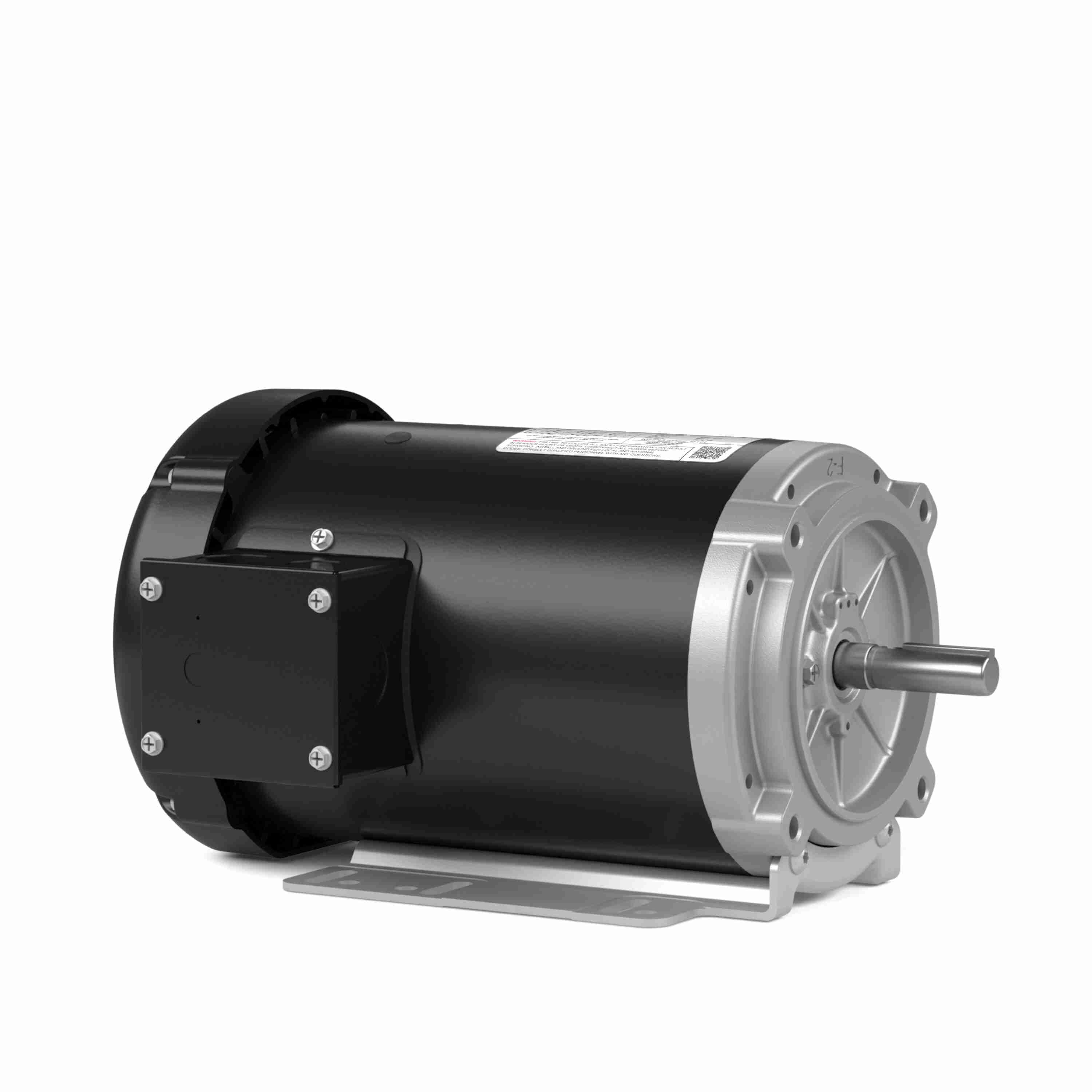

The LEESON 056T17F15950 Flex-In-1™ General Purpose Motor delivers 0.75 & 0.75 HP. This three-phase motor is designed for general-purpose applications. It operates at 230/460 & 190/380 V and 60 & 50 Hz, with speeds of 1725 & 1425 RPM. The motor features a 56C frame and a totally enclosed fan-cooled (TEFC) enclosure.

• One FLEX-IN-1™ motor replaces 18 general purpose motors
• Easily configured into three mounting styles: F1, F2 & F3
• Inverter duty capable - 10:1 CT for TEFC - 2:1 CT for DP

Product Highlights

This motor is ideal for various industrial applications requiring reliable and adaptable power. It is inverter duty capable and features multiple mounting configurations.

Product Information

Standard Information

• Brand: LEESON
• Manufacturer Part Number: 056T17F15950
• Country of Origin: Mexico

Technical Specifications

• Phase: 3
• Output HP: 0.75 & 0.75 Hp
• Output KW: 0.56 & 0.56 kW
• Voltage: 230/460 & 190/380 V
• Speed: 1725 & 1425 rpm
• Service Factor: 1.15 & 1.00
• Frame: 56C
• Enclosure: Totally Enclosed Fan Cooled
• Thermal Protection: No Protection
• Efficiency: 75.5 & 77 %
• Ambient Temperature: 40 °C
• Frequency: 60 & 50 Hz
• Current: 3/1.5 & 3/1.5 A
• Power Factor: 66.3
• Duty: Continuous
• Insulation Class: F
• Design Code: B
• KVA Code: L
• Drive End Bearing Size: 6203
• Opp Drive End Bearing Size: 6203
• UL: Recognized
• CSA: Y
• CE: Y
• IP Code: 43
• Number of Speeds: 1
• Electrical Type: Squirrel Cage Inverter Rated
• Starting Method: Line Or Inverter
• Poles: 4
• Rotation: Reversible
• Resistance Main: 23.2 Ohms
• Mounting: Bolt-on Base
• Motor Orientation: Horizontal Or Up Or Down
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: NEMA 56
• Shaft Diameter: 0.625 in
• Assembly/Box Mounting: F1 F2/F3 CAPABLE
• Inverter Load: CONSTANT 10:1
• Brand: LEESON
• MPN: 056T17F15950
• Model: 056T17F15950
• Country of Origin: MX
