Leeson 056T17F15949 General Purpose Motor 0.33 & 0.33 HP

Product Description

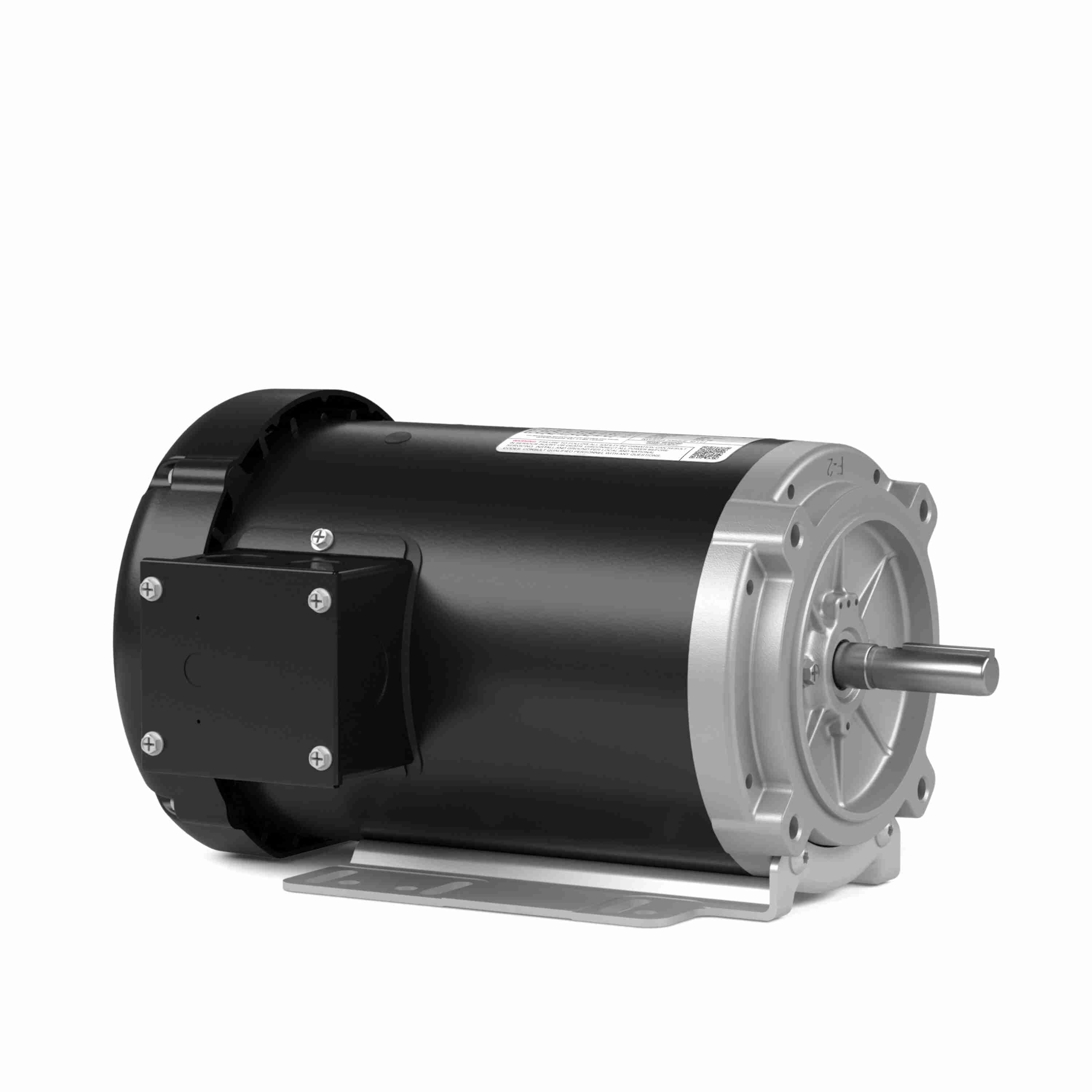

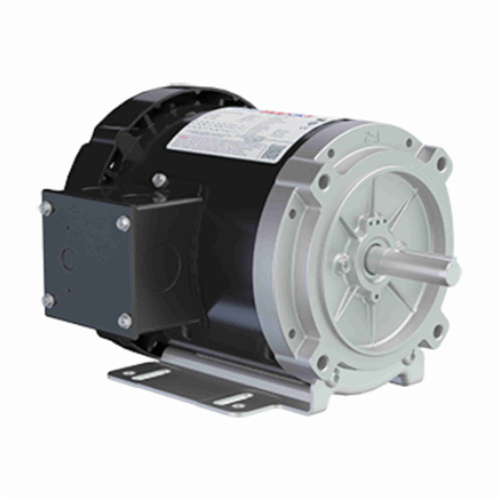

The LEESON 056T17F15949 is a squirrel cage inverter rated general purpose motor. This motor operates at 230/460 & 190/380 V and 60 & 50 Hz. It features a 56C frame, totally enclosed fan cooled enclosure and is designed for bolt-on base mounting. It delivers 0.33 & 0.33 HP at 1725 & 1425 RPM.

• Replaces 18 general purpose motors with FLEX-IN-1 design
• Easily configured into three mounting styles: F1, F2 & F3
• Inverter duty capable with 10:1 CT for TEFC and 2:1 CT for DP

Product Highlights

The LEESON 056T17F15949 motor is ideal for general purpose applications requiring a versatile and robust motor solution.

Product Information

Standard Information

• Brand: LEESON
• Manufacturer Part Number: 056T17F15949
• Country of Origin: Mexico

Technical Specifications

• Phase: 3
• Output HP: 0.33 & 0.33 Hp
• Output KW: 0.25 & 0.25 kW
• Voltage: 230/460 & 190/380 V
• Speed: 1725 & 1425 rpm
• Service Factor: 1.15 & 1.00
• Frame: 56C
• Enclosure: Totally Enclosed Fan Cooled
• Thermal Protection: No Protection
• Efficiency: 68 & 72 %
• Ambient Temperature: 104 °F
• Frequency: 60 & 50 Hz
• Current: 1.6/.8 & 1.6/.8 A
• Power Factor: 61.9
• Duty: Continuous
• Insulation Class: F
• Design Code: B
• KVA Code: N
• Drive End Bearing Size: 6203
• Opp Drive End Bearing Size: 6203
• UL: Recognized
• CSA: Y
• CE: Y
• IP Code: 43
• Number of Speeds: 1
• Electrical Type: Squirrel Cage Inverter Rated
• Starting Method: Line Or Inverter
• Poles: 4
• Rotation: Reversible
• Resistance Main: 44.4 Ohms
• Mounting: Bolt-on Base
• Motor Orientation: Horizontal Or Up Or Down
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: NEMA 56
• Shaft Diameter: 0.625 in
• Assembly/Box Mounting: F1 F2/F3 CAPABLE
• Inverter Load: CONSTANT 10:1
• Series: FLEX-IN-1 (General Purpose)
• RPM [Max]: 1725 RPM
• Motor Application: General Purpose
• Power Rating: 0.33 Hp, 0.25 KW
• Inch/Metric: Inch
