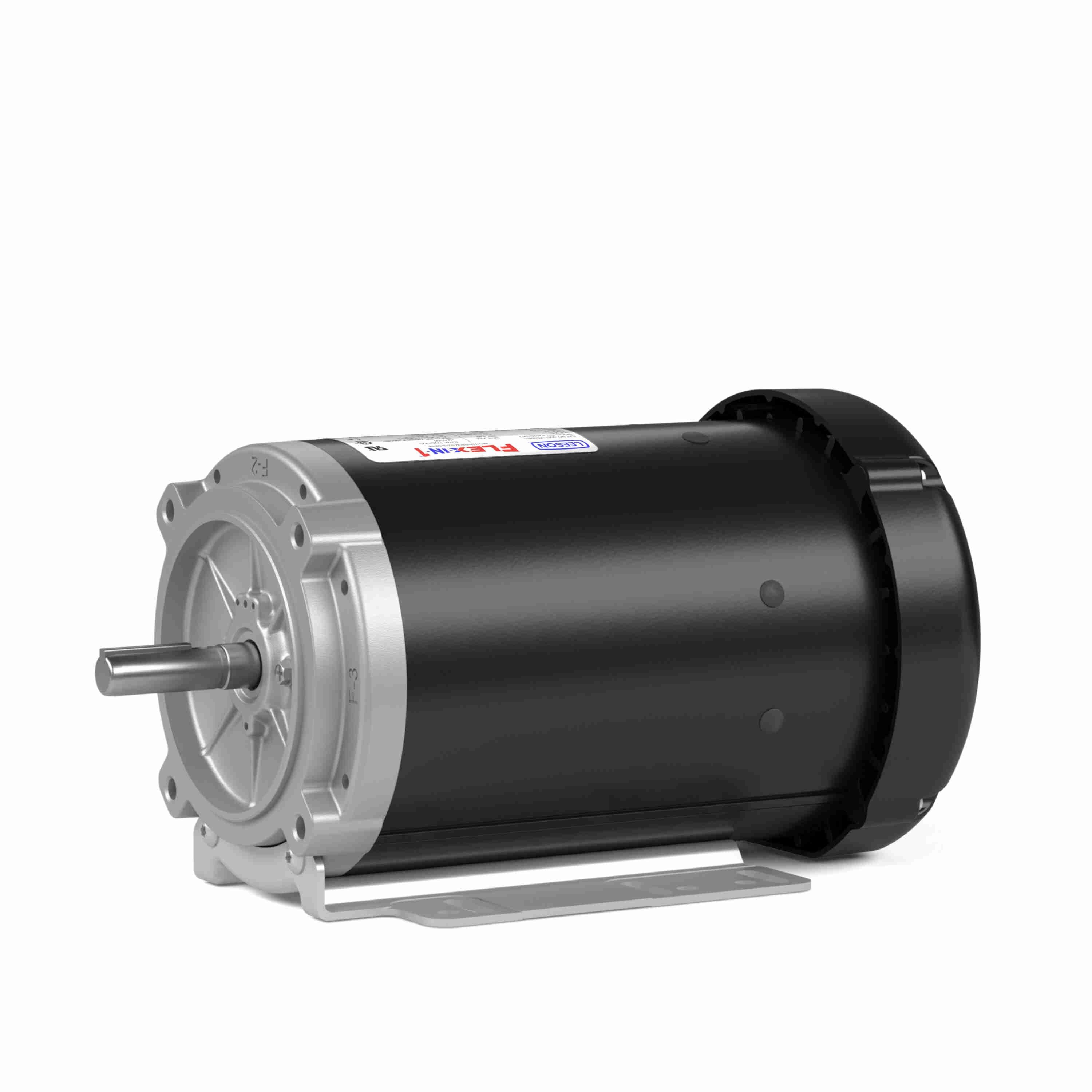

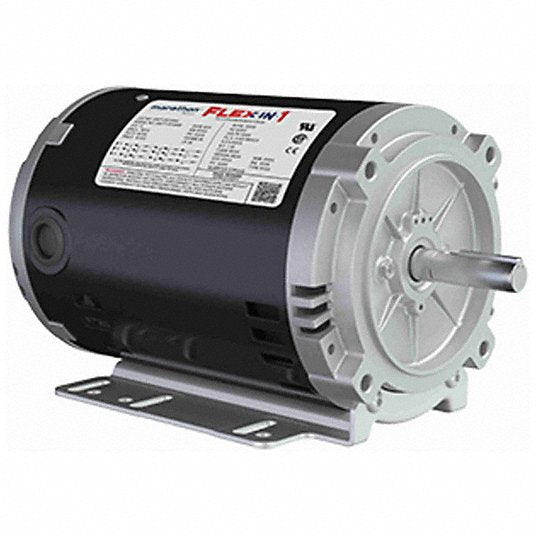

Leeson 056T17D15851 Flex-In-1 general purpose motor 2 & 2 hp (56HC Frame)

Product Description

The LEESON 056T17D15851 Flex-In-1™ motor replaces 18 general purpose motors. The patented FLEX-IN-1 motor is easily configured into three mounting styles: F1, F2 & F3. This motor is inverter duty capable with combination mounting holes in base. Light assembly may be required.

• One FLEX-IN-1™ motor replaces 18 general purpose motors
• Easily configured into three mounting styles: F1, F2 & F3
• Inverter duty capable - 10:1 CT for TEFC - 2:1 CT for DP

Product Highlights

The Leeson 056T17D15851 is designed for continuous duty and is suitable for a wide range of industrial applications. It operates at 230/460 & 190/380 V and 60 & 50 Hz.

Product Information

Standard Information

• Brand: LEESON
• Manufacturer Part Number: 056T17D15851
• Country of Origin: Mexico

Technical Specifications

• Phase: 3
• Output HP: 2 & 2 Hp
• Output KW: 1.5 & 1.5 kW
• Voltage: 230/460 & 190/380 V
• Speed: 1725 & 1425 rpm
• Service Factor: 1.15 & 1.00
• Frame: 56HC
• Enclosure: Drip Proof
• Thermal Protection: No Protection
• Efficiency: 86.5 & 85.5 %
• Ambient Temperature: 40 °C
• Frequency: 60 & 50 Hz
• Current: 6/3 & 6.6/3.3 A
• Power Factor: 74.5
• Duty: Continuous
• Insulation Class: F
• Design Code: A
• KVA Code: N
• Drive End Bearing Size: 6203
• Opp Drive End Bearing Size: 6203
• UL: Recognized
• CSA: Y
• CE: Y
• IP Code: 22
• Number of Speeds: 1
• Electrical Type: Squirrel Cage Inverter Rated
• Starting Method: Line Or Inverter
• Poles: 4
• Rotation: Reversible
• Resistance Main: 6.4 Ohms
• Mounting: Bolt-on Base
• Motor Orientation: Horizontal
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: NEMA 56
• Shaft Diameter: 0.625 in
• Assembly/Box Mounting: F1 F2/F3 CAPABLE
• Inverter Load: CONSTANT 2:1
• UPC: 691720115060
• Weight: 46.00 LB
• Packaged Length: 16.12 IN
• Packaged Width: 10.25 IN
• Packaged Height: 8.12 IN
• Motor Design: Three-Phase
• Nameplate RPM: 1,725
• Voltage Rating: 208 to 230/460, 190/380 V
• Amperage Rating: 6.2-6/3 & 6.6/3.3 A
• Usable @ 208V: Yes
• Motor Service Factor: 1.15
• Max. Ambient Temp.: 40 °C
• Motor Thermal Protection: None
• Duty Cycle: Continuous
• NEMA Design: A
• Motor Enclosure Design: Open Drip Proof
• Motor Shaft Rotation: CCW
• Motor Mounting Type: Universal
• Motor Mounting Position: Horizontal
• Inverter Rated: Yes
• Motor Shaft Design: Keyed
• Motor Frame Material: Steel
• Shaft Dia.: 5/8 in
• Shaft Length: 1-7/8 in
• Motor Bearings: Ball
• Overall Length: 14 in
• Nominal Efficiency: 86.5 %
• Standards: CE; CSA; UL
• RPM Range: 1,701-1,800
