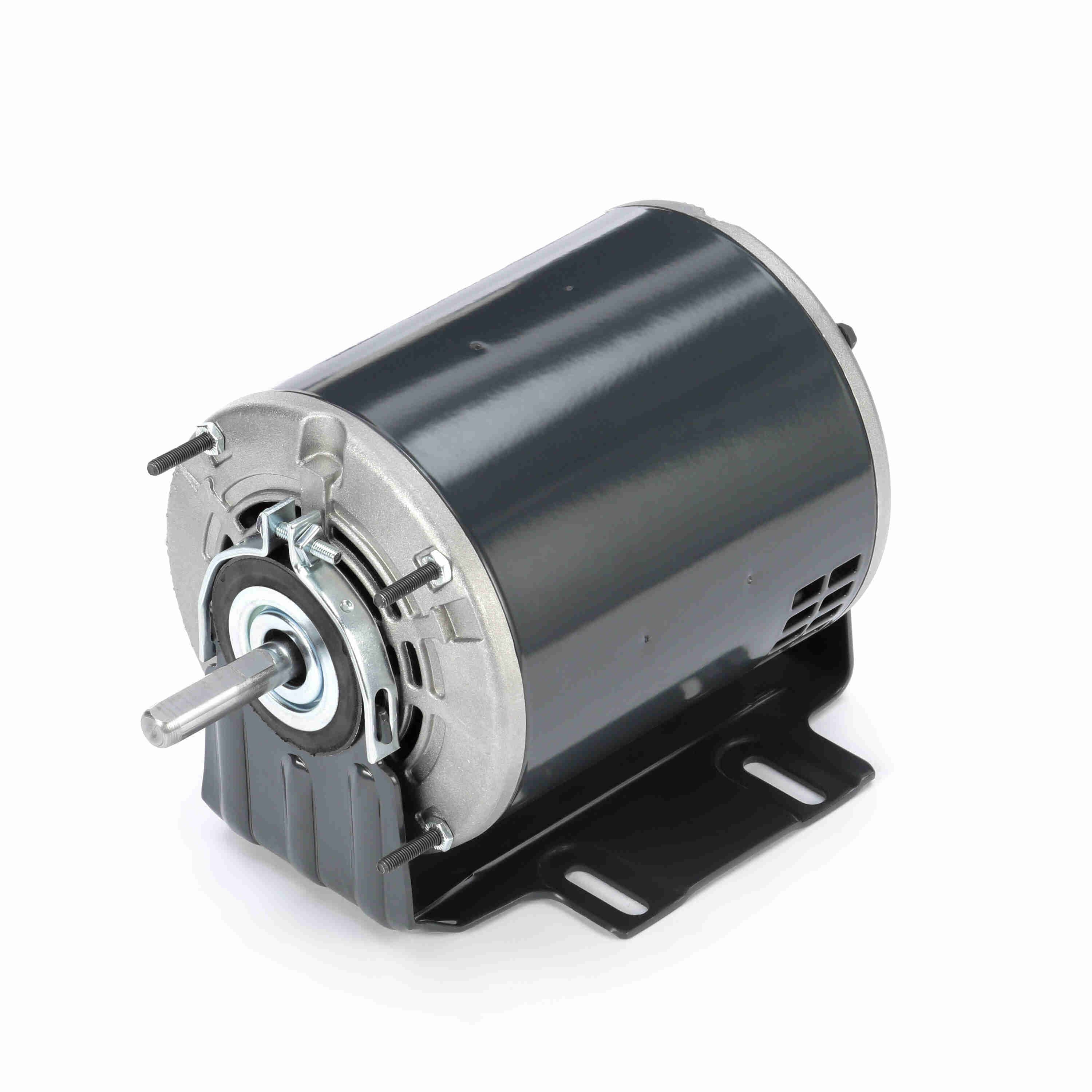

Leeson 056S17D2048 Fan and Blower Motor 0.33 HP 56Z Frame

Product Description

The LEESON 056S17D2048 is a 0.33 HP fan and blower motor designed for direct drive applications. This motor features a split-phase design and operates at 115V AC, 60 Hz. It is suitable for use in various fan and blower applications, offering reliable performance with its open drip-proof enclosure and continuous duty cycle.

• Ball bearings
• 3/4" thru-bolts, shaft end

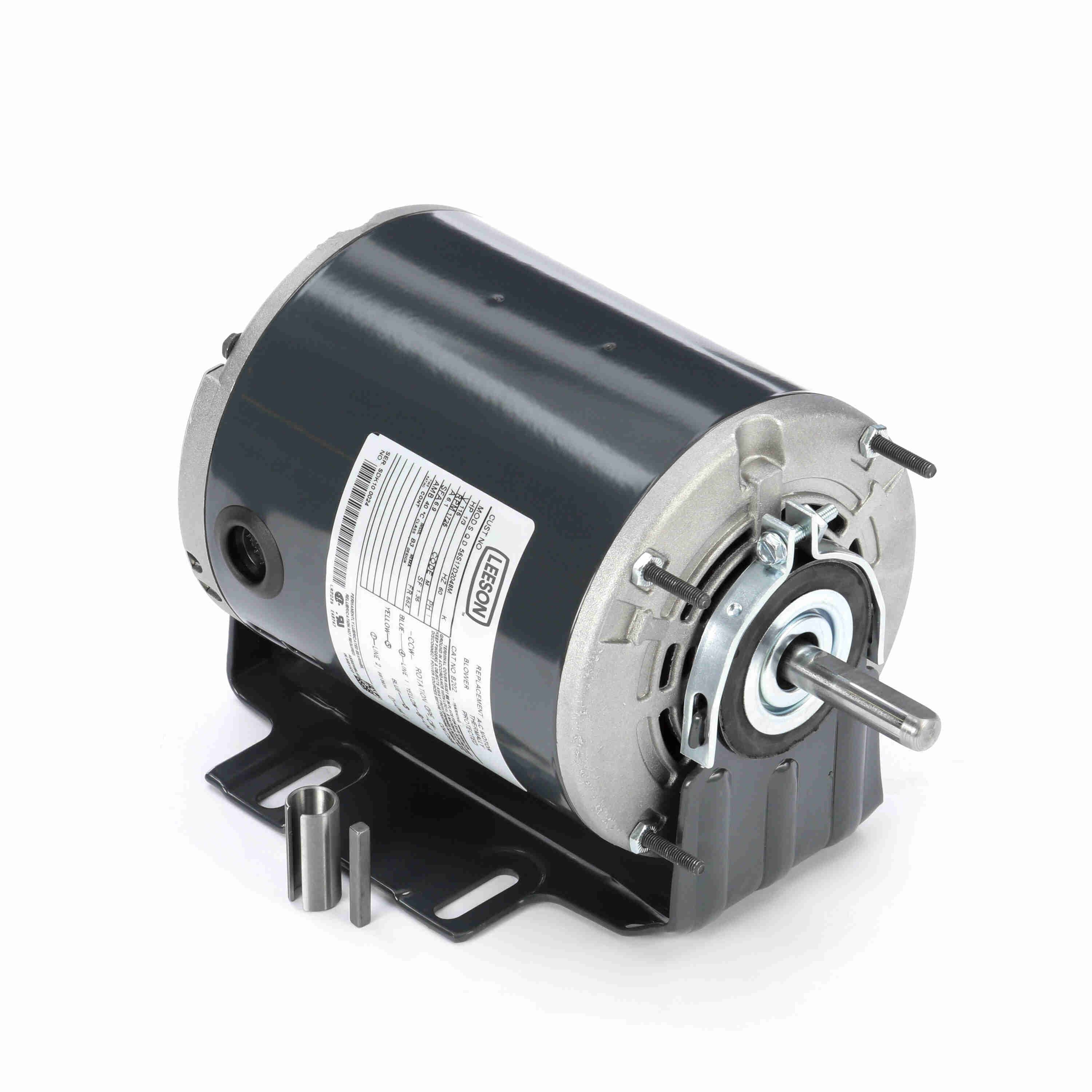

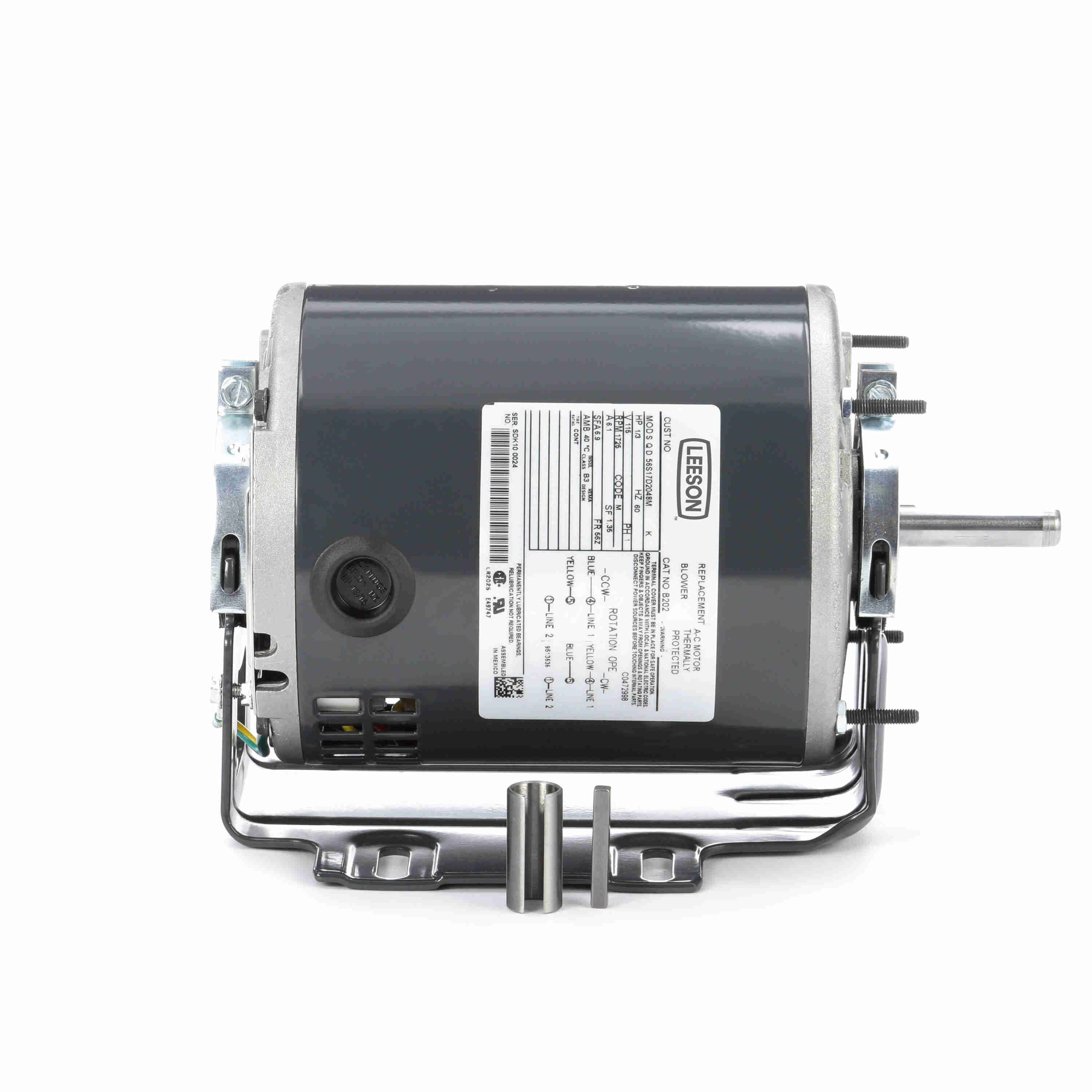

• 1/2" shaft with 5/8" adapter and key

Product Highlights

Direct drive blower motor with 1/3 hp, 1725 RPM, and 115V AC. Features a 56Z frame and open drip-proof design.

Product Information

Standard Information

• Brand: LEESON
• Manufacturer Part Number: 056S17D2048
• Country of Origin: Mexico

Technical Specifications

• Phase: 1
• Output HP: 0.33 Hp
• Output KW: 0.25 kW
• Voltage: 115 V
• Speed: 1725 rpm
• Service Factor: 1.35
• Frame: 56Z
• Enclosure: Drip Proof
• Thermal Protection: Automatic
• Efficiency: 62 %
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: 6.1 A
• Power Factor: 61.5
• Duty: Continuous
• Insulation Class: B
• Design Code: NO DESIGN CODE
• KVA Code: M
• Drive End Bearing Size: 6203
• Opp Drive End Bearing Size: 6203
• UL: Recognized
• CSA: Y
• CE: N
• IP Code: 22
• Number of Speeds: 1
• Electrical Type: Split Phase
• Starting Method: Across The Line
• Poles: 4
• Rotation: Selective Counterclockwise
• Resistance Main: 0 Ohms
• Mounting: Resilient Base - Extended Studs
• Motor Orientation: Horizontal
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Single Special Extension
• Overall Length: 9.72 in
• Frame Length: 5.75 in
• Shaft Diameter: 0.625 in
• Shaft Extension: 1.97 in
• Assembly/Box Mounting: F1 ONLY
• UPC: 722856039835
• Weight: 15.00 LB
• Packaged Length: 11.06 IN
• Packaged Width: 6.75 IN
• Packaged Height: 6.62 IN
• HTC: 8501.40.4040
• Brand: LEESON
• MPN: 056S17D2048
• Model: 056S17D2048
• Country of Origin: United States
• Application: Fan/Blower
• Sub Application: General Purpose
• Motor Design: Split-Phase
• Horsepower: 1/3 hp
• RPM: 1,725 RPM
• Nameplate Voltage: 115V AC
• Full Load Amps: 6.1 A
• Usable @ 208V: Not Usable at 208V
• Motor Thermal Protection: Auto
• Motor Shaft Rotation: CW/CCW
• Motor Enclosure Type: Open Drip Proof
• Mounting Type: Cradle Base
• Mounting Position: Horizontal
• Shaft Length: 1-31/32 in
• Shaft Design: Keyed
• Bearing Type: Ball
• Length Less Shaft: 7-3/4 in
• Body Diameter: 5.6 in
• Nominal Efficiency: 62 %
• Standards: CSA Certified; UL Listed
• Shaft Dia.: 5/8 in
• Item: HVAC Motor
• Power: 0.25 kW
• Rpm: 1800 RPM
• Starting Type: SPLIT PHASE
• Ambient Temp.: 40°C
• Conduit Box Position: F1 Only
• Nema Design: No Design Code
• Motor Mounting Type: Extended Studs, Resilient Base
• Voltage Compatibility: 115V AC
