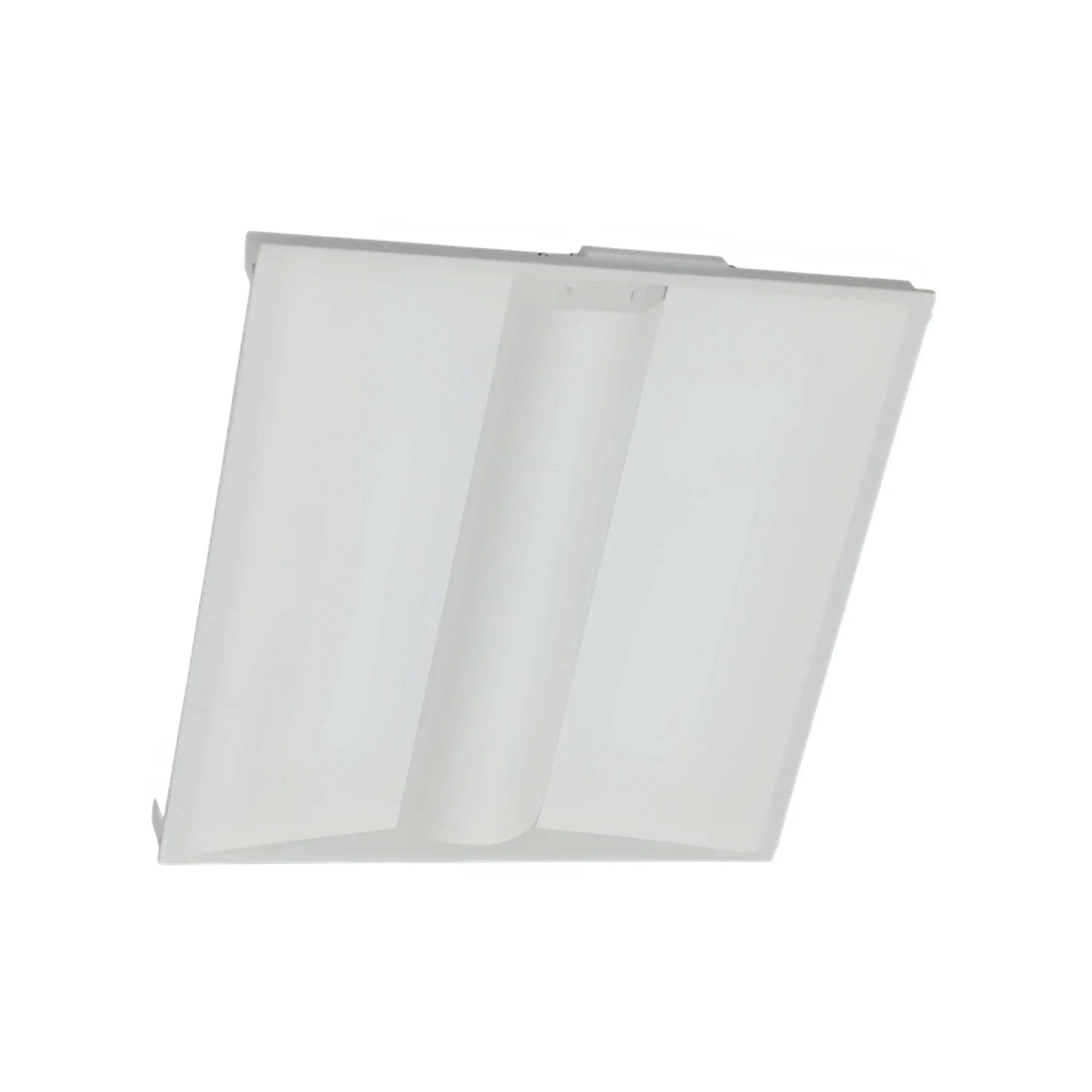

Ledvance VOLUME6A/S032UNHD8SC7/22U/WH 2x2 LED Troffer 20 | 24 | 28 | 32W

Product Description

The Ledvance VOLUME6A/S032UNHD8SC7/22U/WH 2x2 LED Troffer delivers efficient performance for various lighting applications. This dual-selectable volumetric troffer provides economical illumination for offices, retail spaces, hallways, healthcare, multipurpose rooms, and hospitality areas. With field-adjustable wattage (20W/24W/28W/32W) and color temperature settings (3500K/4000K/5000K), it offers flexibility. It operates on 120-347V and has a rated life of 150,000 hours.

• 2x2 volumetric troffer design with dual selectability for T-grid ceiling installations
• Field-adjustable wattage: choose between 20W/24W/28W/32W to customize light output for specific applications
• Field-adjustable CCT: adjust between 3500K/4000K/5000K to create the ideal environment for different tasks

Product Highlights

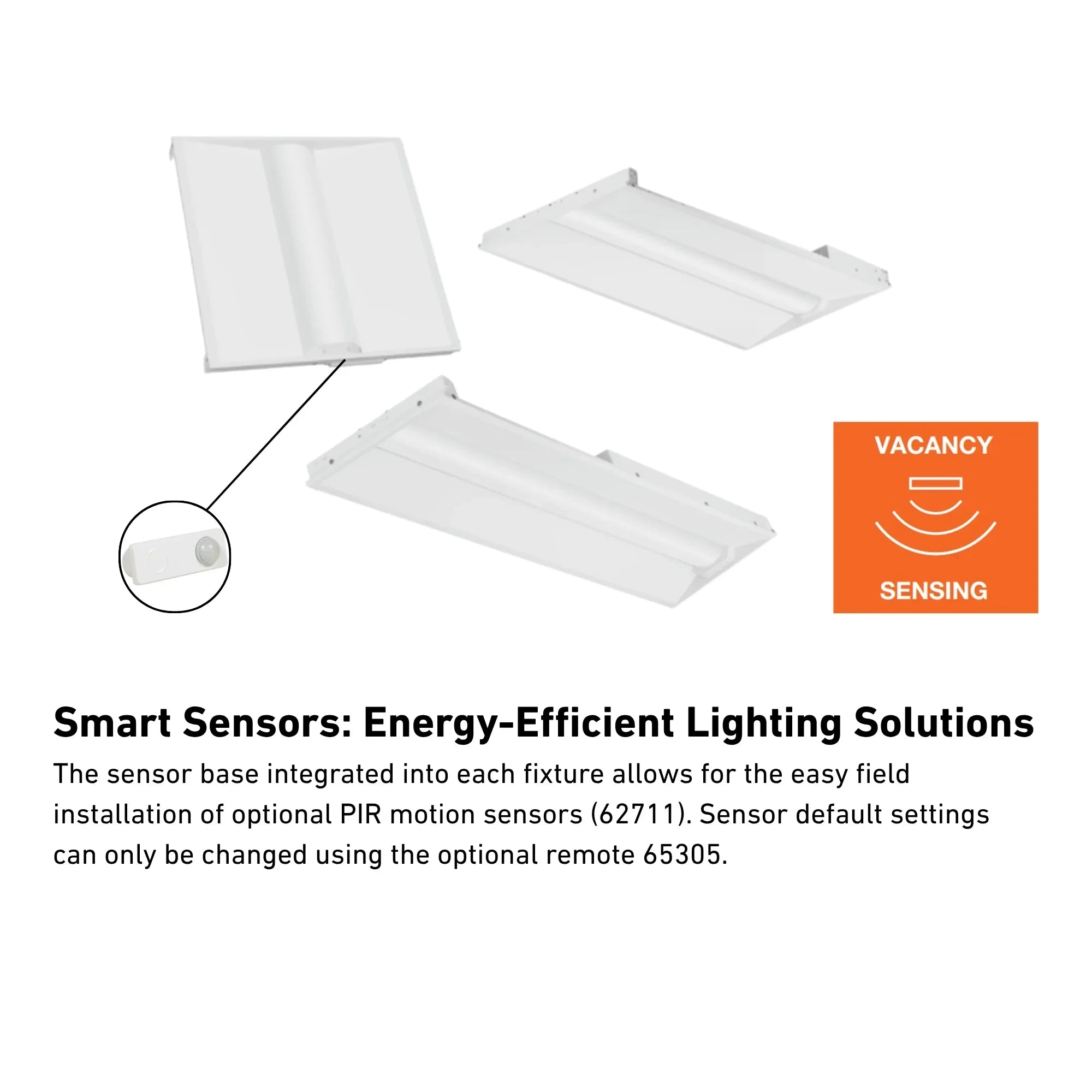

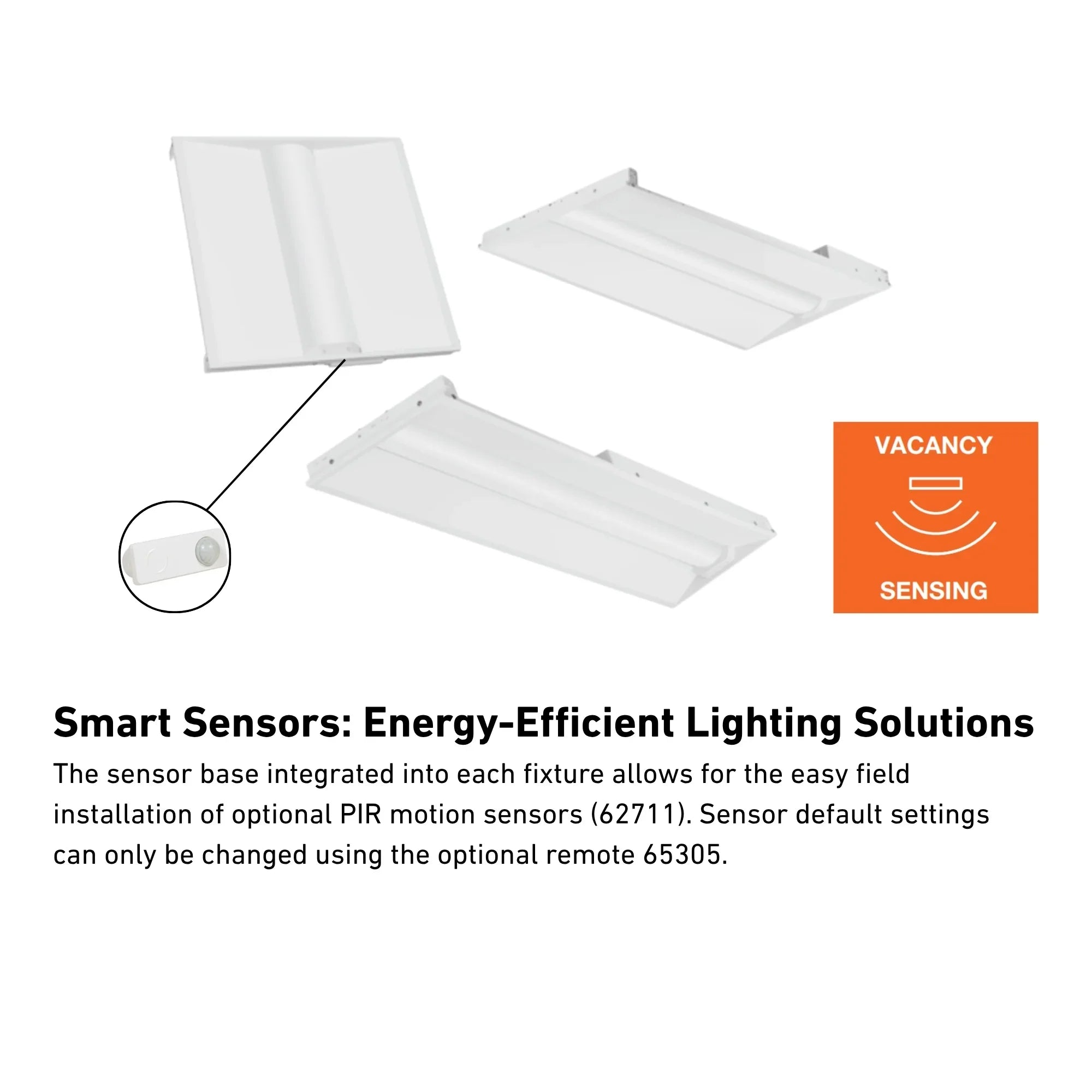

Maximum output of up to 4,000 lumens with 80+ CRI and efficacy up to 125 lm/W. Built-in sensor base for optional PIR motion sensors.

Product Information

Standard Information

• Brand: LEDVANCE
• Manufacturer Part Number: VOLUME6A/S032UNHD8SC7/22U/WH

Technical Specifications

• Brand: Ledvance
• Manufacturer Part Number: VOLUME6A/S032UNHD8SC7/22U/WH
• DLC Product ID: S-NSRVA2
• Lumens: 4000 lm
• Wattage: 20/24/28/32W Selectable
• Input Voltage: 120-347V
• Dimmable: 0-10V
• Color Temperature: 3500K, 4000K, 5000K Selectable
• Rated Hours: 150,000 Hours
• Minimum Operating Temperature: -4 Degrees F
• CRI: 80+
• Special Features: CCT Selectable, Wattage Selectable
• Secondary MPN: 62533
• Certifications: cETLus Listed, RoHS Compliant, DLC Listed, FCC
• Finish: White
• Efficacy: 125 lm/W
• Series: 6A

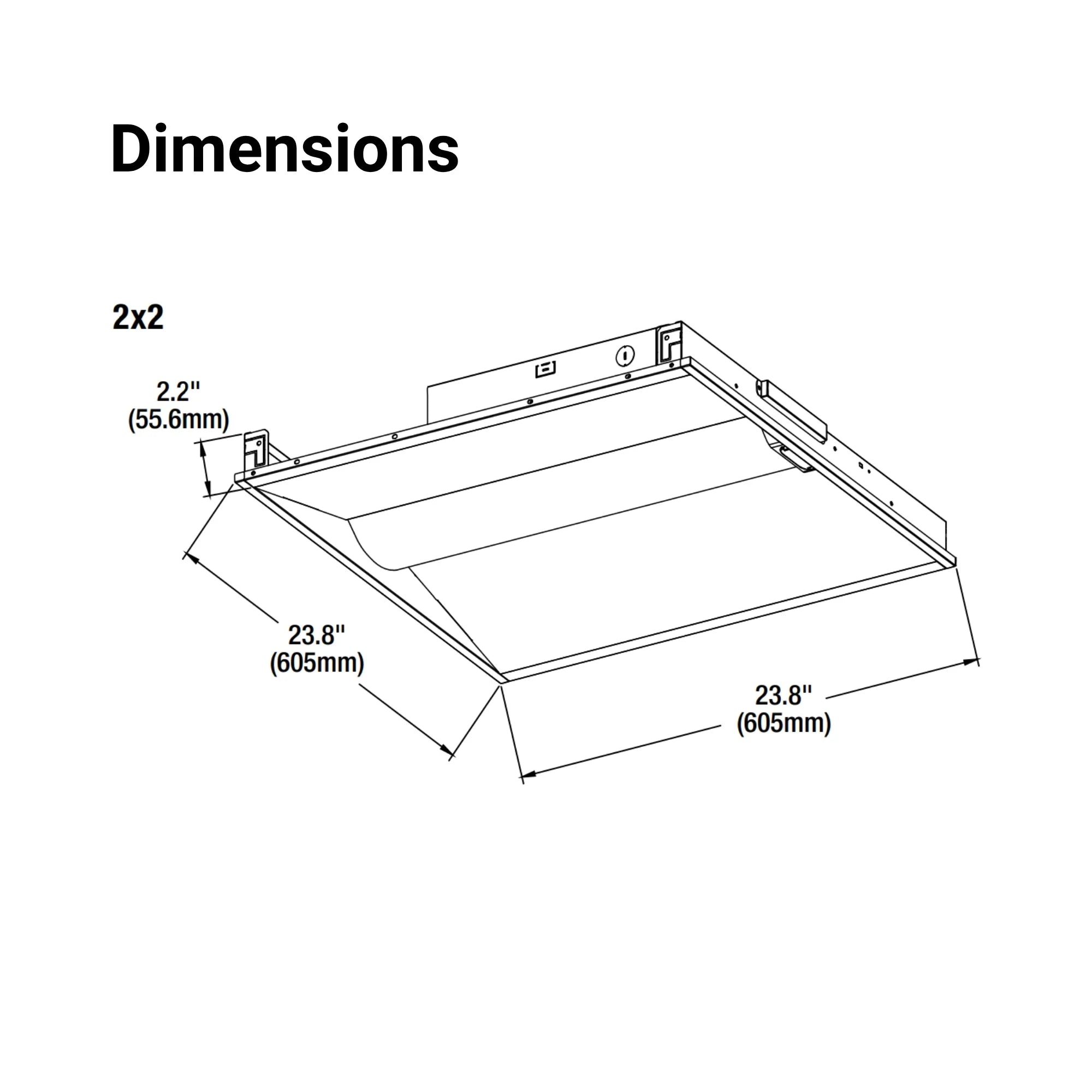

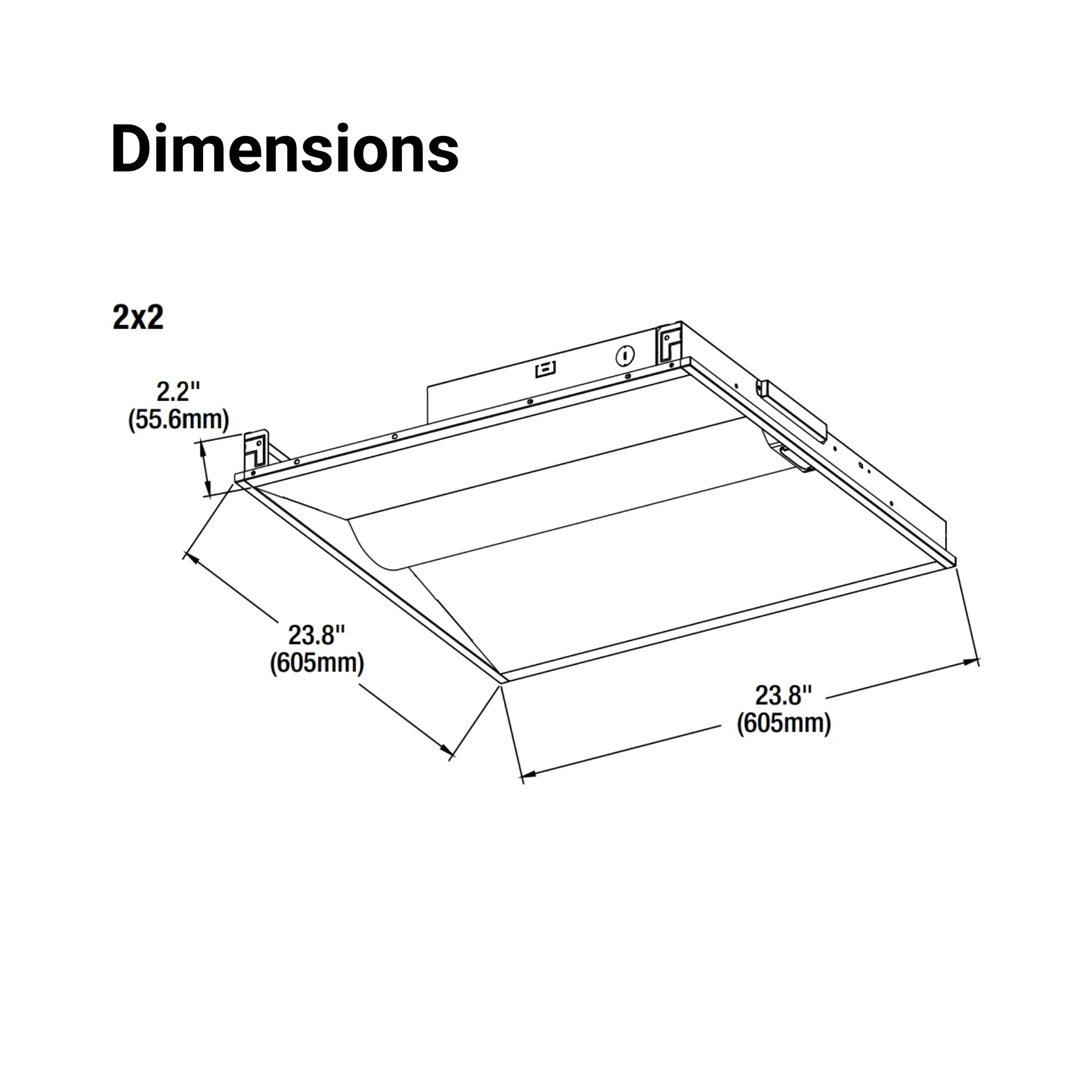

• Size: 2x2
• Sensor Type: Optional Field Installable PIR or Bluetooth Sensors
• Material: Steel
• Family: Dual Selectable Volumetric Troffer 6A
• Enclosure Rating: Damp Rated
