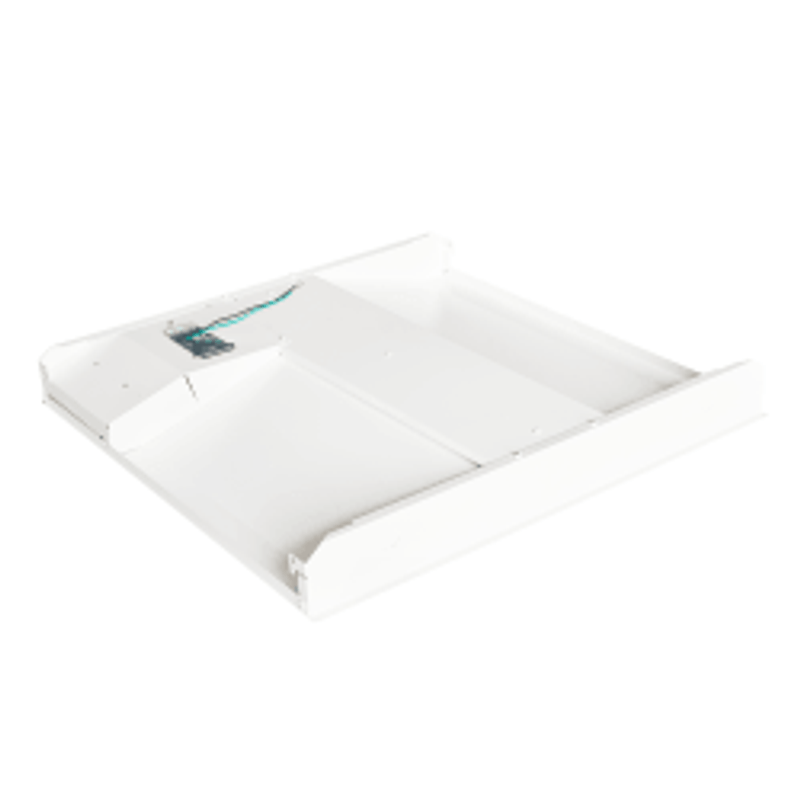

Ledvance VOLUME5AS030UNVD84022UWH/61513 ValueLED Dimmable Volumetric Troffer 20/25/30 W 2 ft x 2 ft

Product Description

The LEDVANCE VOLUME5AS030UNVD84022UWH/61513 is a Sylvania ValueLED Dimmable Volumetric Troffer designed for various indoor applications. This LED lamp fixture operates on 120 to 277 VAC and offers selectable wattage options of 20, 25, or 30 W. It provides a light output of 125 Lumens/W with a 4000 K color temperature and a CRI of >80. The steel housing ensures durability, and it is suitable for ceiling mounting.

• Lumen selectability increases the versatility of this product.
• All models are DLC Premium listed to maximize rebate opportunities.
• Ideal in retrofit applications offering up to 61% energy savings when compared to traditional lighting technologies.

Product Highlights

Dimmable LED troffer with selectable wattage, high efficacy, and steel housing for versatile indoor lighting.

Product Information

Standard Information

• Brand: LEDVANCE
• Manufacturer Part Number: VOLUME5AS030UNVD84022UWH/61513
• Country of Origin: China

Technical Specifications

• Average Life: 50000 hours
• Dimming Type: 0-10V
• CRI: >80
• Color Temperature: 4000K
• Wattage: 20/25/30 W
• Housing Material: Steel
• Lamp Type: LED
• Efficacy: 125 Lumens/W
• Lumens: 2500/3125/3750
• MPN: VOLUME5AS030UNVD84022UWH/61513
• Mounting Type: Recessed Ceiling
• Certifications: cULus Listed, DLC QPL Premium Listed, FCC Certified, RoHS Compliant
• Dimmable: Yes
• Input Voltage: 120-277 VAC
• UPC: 46135615139
• Country of Origin: China
• Power Factor: >0.9
• Total Harmonic Distortion: <20%
• Installation: Lay-In Grid Ceilings
• Fixture Type: Volumetric Troffer
• Finish: White
