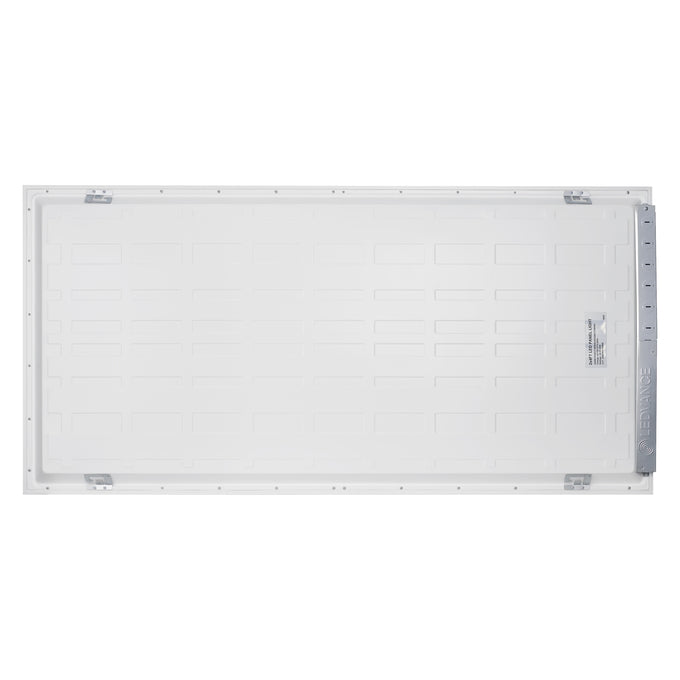

Ledvance panelf3bs045unvd8sc724gwh/65898 value class dual selectable panel 30/35/45w 2x4

Product Description

The LEDVANCE PANELF3BS045UNVD8SC724GWH/65898 is a Value Class Dual Selectable Panel designed for versatile lighting applications. This 2x4 panel offers selectable wattages of 30W, 35W, or 45W, operating on 120-277V. It provides selectable lumen outputs of 3300, 4000, or 5000 lumens, and selectable color temperatures of 3500K, 4000K, or 5000K. Featuring 0-10V dimming and an 80+ CRI, it ensures adaptable and quality illumination.

• Selectable Wattage (30W, 35W, 45W) for energy optimization
• Wide Voltage Range (120-277V) with 0-10V Dimming capability
• Selectable Color Temperature (3500K, 4000K, 5000K) and Lumens (3300, 4000, 5000)

Product Highlights

Versatile 2x4 LED panel with adjustable wattage, lumen output, and color temperature for diverse indoor lighting needs.

Product Information

Standard Information

• Brand: LEDVANCE
• Manufacturer Part Number: PANELF3BS045UNVD8SC724GWH/65898

Technical Specifications

• Manufacturer: LEDVANCE
• Wattage: 30/35/45W
• Input Voltage: 120-277V
• Dimming Type: 0-10V
• Lumen Output: 3300/4000/5000
• CRI: 80+
• Color Temperature: 3500/4000/5000K
• Panel Size: 2x4
• Standard: DLC
• Power Factor: ≥0.90
• Total Harmonic Distortion: < 20 %
• Efficacy: 105 lm/W
• Length: 47.8 in
• Height: 1.6 in
• Width: 23.82 in
• Finish: White
• Housing Material: Aluminum|Steel
• Mercury Content: 0.0 mg
• Connectors: WAGO
• Mounting Type: Recessed/Suspended/Surface
• Environment: Indoor
• Replaceable Light Source: No
• Average Rated Life: 50000 hours
• Certifications: FCC; cETLus
• Family Brand Name: Value Class
