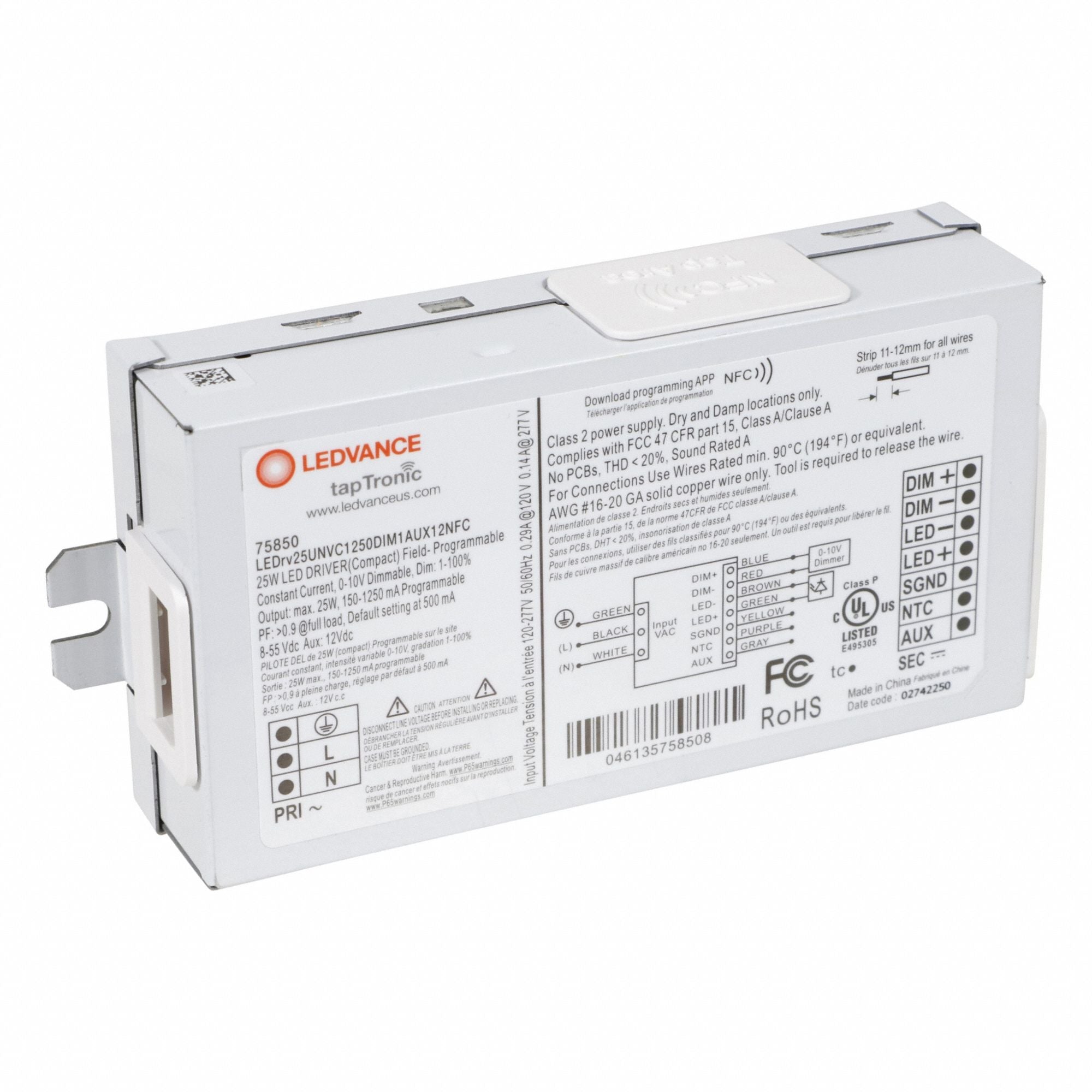

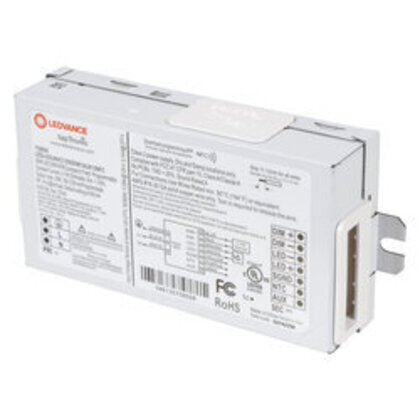

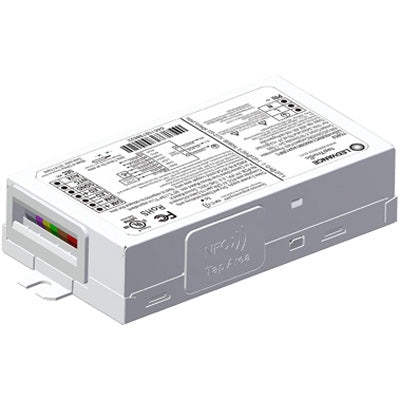

Ledvance LEDrv25UNVC1250DIM1AUX12NFC tapTronic compact NFC LED driver field programmable 25W 150-1250mA 75850

Product Description

The LEDVANCE LEDrv25UNVC1250DIM1AUX12NFC is a 25W NFC Compact Constant Current LED Driver. This field-programmable unit offers a current range of 150-1250mA and supports 0-10V dimming with a 1-100% range. Designed for linear, compact, and outdoor applications, it operates on 120V-277V input and provides a 12V auxiliary output. Its Near Field Communication (NFC) interface allows for quick output customization via a free app, even without power.

• Field Programmable
• 150-1250mA Current Range
• 0-10V Dimming

Product Highlights

Field-programmable constant current LED driver with NFC for quick output customization in various applications.

Product Information

Standard Information

• Brand: LEDVANCE
• Manufacturer Part Number: LEDrv25UNVC1250DIM1AUX12NFC
• Country of Origin: China

Technical Specifications

• Brand: LEDVANCE
• Manufacturer Part Number: LEDrv25UNVC1250DIM1AUX12NFC
• Secondary Part Number: 75850
• Power Output: 25W
• Input Voltage: 120V-277V
• Output Voltage: 8V-55V
• Output Current Range: 150-1250mA
• Dimming Method: 0-10V
• Dimming Range: 1-100%
• Auxiliary Output: 12V
• Driver Type: Constant Current
• Programming Method: NFC (Near Field Communication)
• Certifications: RoHS Compliant, FCC, cULus Listed, CA T-24, CFR, cUL class P
• Ambient Temperature - Maximum: 50 °C
• Ambient Temperature - Minimum: -30 °C
• Case Form Factor: Compact
• Case Temperature - Maximum: 80 °C
• Driver Class: Class 2
• Frequency: 50/60 Hz
• LED Driver Protection: Over-Temperature Protection
• Number of Bulbs Supported: 1
• Total Harmonic Distortion - Maximum: 20 %
• Environmental Rating: Damp Location
• Default Current Setting: 500mA
• Series: tapTronic
