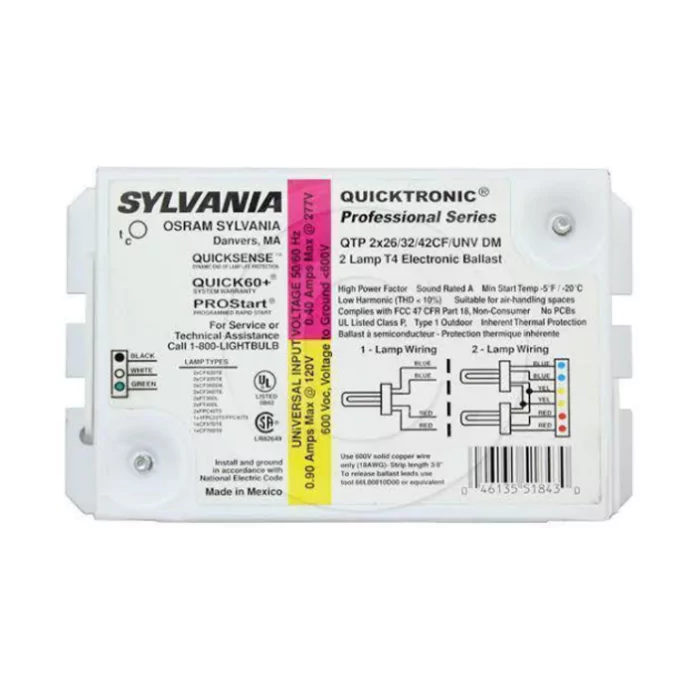

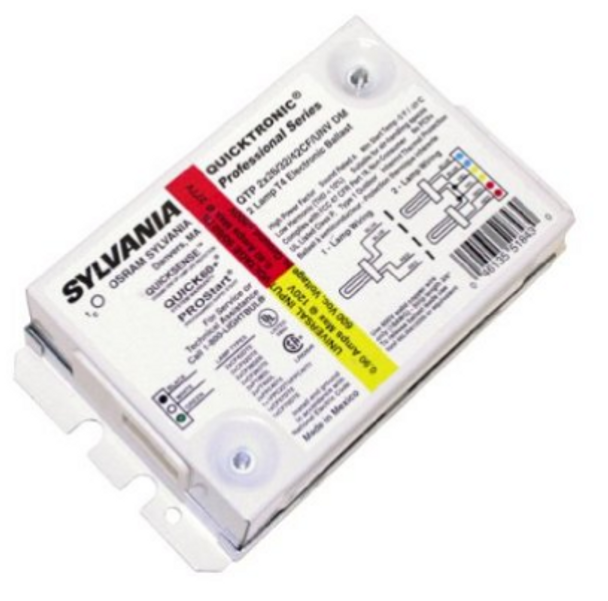

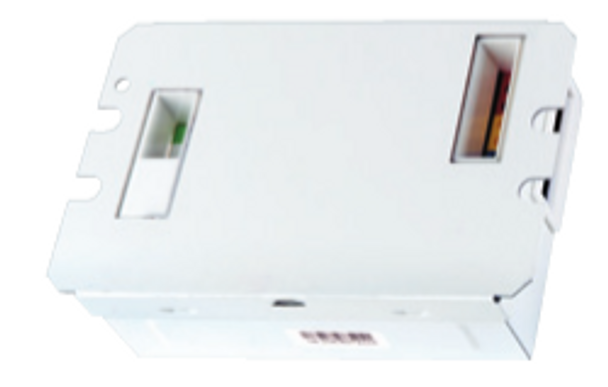

LEDVANCE 51843 LEDVANCE Sylvania QTP2x26/32/42CF/UNV DM Electronic Ballast

Product Description

The LEDVANCE Sylvania QTP2x26/32/42CF/UNV DM (51843) is an electronic ballast that powers compact fluorescent lamps. It can operate two lamps ranging from twenty-six to forty-two watts. The ballast supports both DULUX D/E and T/E lamp types and ensures full lumen output.

• Operates two 26W, 32W, or 42W CFL lamps.
• Features universal input voltage (120-277V).
• Employs programmed rapid start for effective operation.

Product Highlights

This electronic ballast is designed with dual entry and color-coded connectors, ensuring easy installation. It has a durable metal enclosure for added protection in various environments. Suitable for both indoor and outdoor installations, it meets various certification standards.

Product Information

Standard Information

• Brand: Sylvania
• Manufacturer Part Number: 51843

Technical Specifications

• Input Voltage: 120-277V
• Number of Lamps: 1, 2
• Lamps Supported: (2) CF26W, (2) CF32W, (2) CF42W, (1) FT57W, (1) FT70W, (2) FT36DL, (2) FT40DL, (2) FPC40T5
• Start Method: Programmed Rapid Start
• Starting Temperature: -4°F, -20°C
• Dimensions: 4.95 inches L x 2.93 inches W x 1.35 inches H
• Certifications: Class P, CSA, NEMA Premium, Outdoor Type 1, Sound Rated: A, UL
• Warranty: 5 Year
• Fixture Type: Compact Fluorescent
• Total Maximum Wattage: 26
• Wiring Method: Plug-In Connectors
• Total Harmonic Distortion (THD): < 10%
• Sound Rating: A
• Primary Lamp Type: 26W DD/E, T/E
• Power Factor: > 0.98
• Nominal Voltage (V): 120.00
• Ballast Factor: 1
