LEDtronics RPLH16-02-04-02 Panel Indicator 130 VDC/120 VAC 5/8 inch Dia RPLH16-02-04-02

Product Description

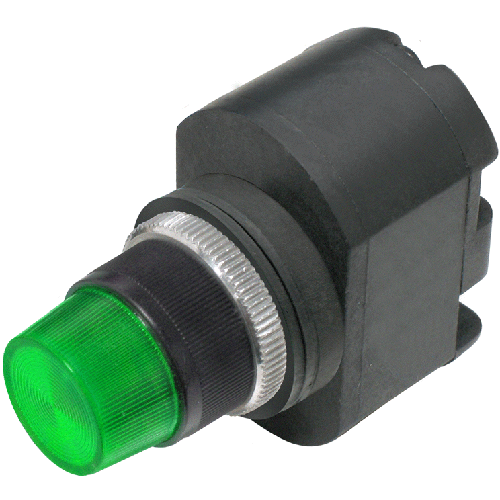

LEDtronics Panel Indicator, MPN RPLH16-02-04-02, is suitable for various industrial applications. It operates on both 130 VDC and 120 VAC. This cylindrical indicator features a clear green lens and is designed for panel mounting, providing functionality and visibility in various settings.

• Amperage Rating: 0.014 A
• Power Consumption: 1.8 W
• Average Lifespan: 100,000 hours

Product Highlights

This product features a durable polycarbonate lens and is resistant to shock and vibration. It is suitable for applications in industrial controls, signaling, and visual factory controls.

Product Information

Standard Information

• Manufacturer: LEDtronics
• Product Name: RPLH16-02-04-02 LEDTRONICS CLEAR GREEN

Technical Specifications

• Amperage Rating: 0.014 A
• Application: Industrial Controls, Panel Mount Retrofit Applications, Visual Factory Controls
• Average Life: 100,000 hr
• Base: 5/8 inch Diameter Relampable Rear Mount
• Beam Angle: 63 degrees
• Color: Aqua Green
• Enclosure: NEMA 3/4/4X/5/6/12
• Environmental Conditions: -22 to +122 degrees F, 5% to 95% Non-Condensing Relative Humidity
• Lamp Type: LED
• Lens Color: Clear Green
• Lens Material: Polycarbonate
• Lumens: 3.16
• Mounting Type: Panel
• Voltage Rating: 130 VDC/120 VAC
• Wattage: 1.8 W
