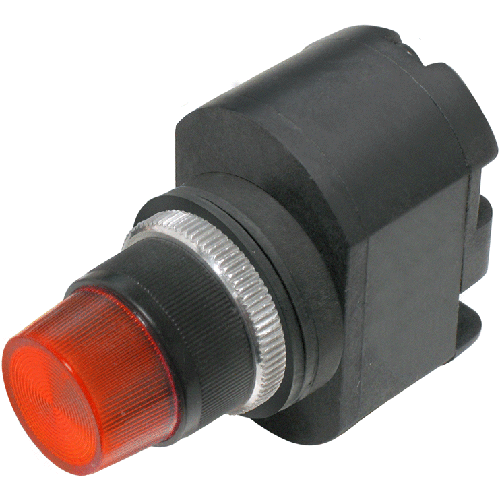

LEDtronics RPLH16-02-01-02 PilotLED Panel Indicator 130 VDC/120 VAC

Product Description

LEDtronics PilotLED Panel Indicator, MPN RPLH16-02-01-02, is designed for panel mounting in industrial applications. This product operates at 130 VDC/120 VAC and has a low current draw of 0.014 A. It features a cylindrical fluted clear lens with a clear red lens that provides visibility in various environments.

• IP65 rated for dust and water resistance
• Long average life of up to one hundred thousand hours
• Designed for easy installation and maintenance

Product Highlights

This panel indicator is built for reliability and is suitable for control lighting, visual factory controls, and signaling solutions.

Product Information

Standard Information

• Product Name: LEDtronics PilotLED Panel Indicator
• Brand: LEDtronics

Technical Specifications

• Amperage Rating: 0.014 A
• Voltage Rating: 130 VDC/120 VAC
• Wattage: 1.8 W
• Average Life: 100000 hr
• Lens Color: Clear Red
• Beam Angle: 63 deg
• Mounting Type: Panel
• Environmental Conditions: -22 to +122 deg F
• Enclosure: NEMA 3/4/4X/5/6/12
