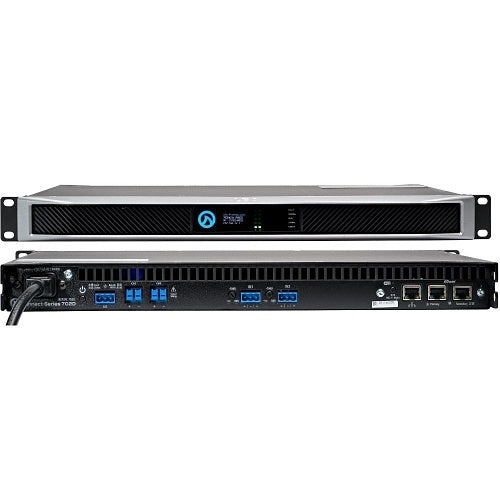

LEA Professional CONNECT702D Dante CONNECT Series 2-Channel Amplifier 700W per Channel

Product Description

LEA Professional CONNECT702D is an Internet of Things enabled amplifier designed for professional audio applications. This amplifier meets the needs of small and medium installations. It supports both direct HiZ (70V or 100V) and LoZ connections. Users can connect using built-in Wi-Fi, existing Wi-Fi networks, or Ethernet via a local area connection.

• Web browser-based UI—compatible with any device without the need to download software.
• Selectable Direct LoZ and HiZ channels for flexible installation.
• Smart Power Bridge technology allows for doubling the power without sacrificing an additional amplifier channel.

Product Highlights

This amplifier also integrates cloud connectivity for control and monitoring through personal devices. It features a robust Analog Devices DSP with capabilities for multiple routing and EQ adjustments.

Product Information

Standard Information

• Brand: LEA Professional
• Country of Origin: Costa Rica

Technical Specifications

• MPN: CONNECT702D
• Power Output: 700W per channel
• Audio Channels: 2
• Operating Voltage: 100V AC to 240V AC
• Weight: 7.50 lb
• Frequency Response: 20 Hz to 20 KHz
• Class: D
• Total Harmonic Distortion (THD): 0.1%
• Limited Warranty: 3 years
