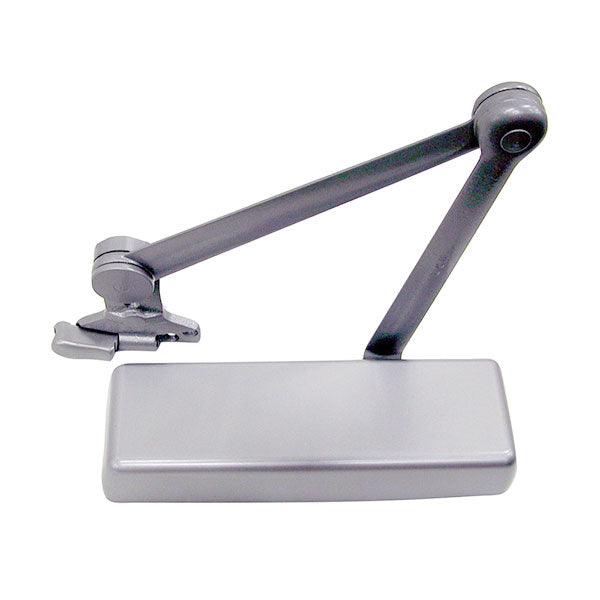

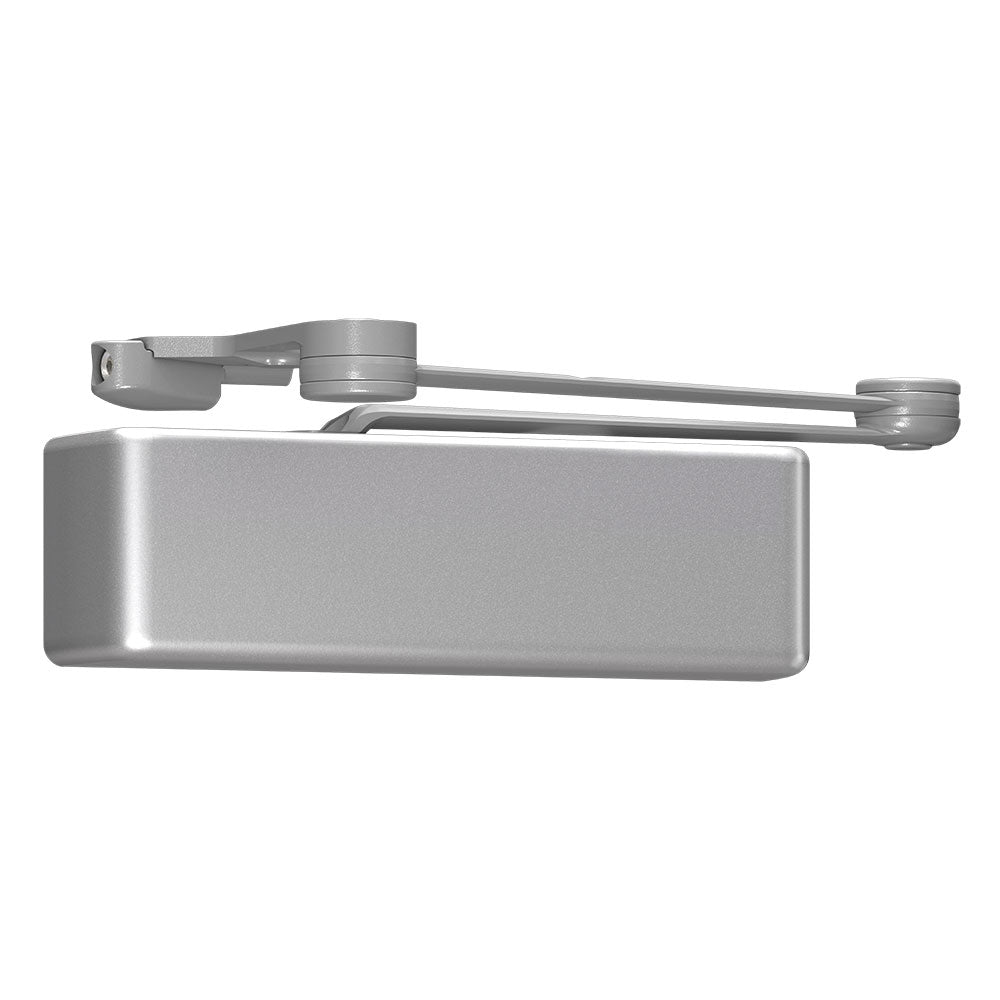

LCN CLOSERS 4040XP-SCUSH-MTBLK Door Closer with Spring CUSH Heavy Duty Parallel Arm

Product Description

The LCN CLOSERS 4040XP-SCUSH-MTBLK is a Grade 1 door closer designed for surface mounting with a spring cush arm. This unit is ideal for commercial, industrial, and institutional use, offering a swing of one hundred ten degrees and an adjustable spring size ranging from one to six. Its robust design includes a solid forged steel main arm and forearm, suitable for more demanding applications.

• Solid forged steel construction with a spring-loaded stop
• Adjustable spring size from 1 to 6 with a patented green dial
• Applicable for interior doors up to five feet wide and exterior doors up to four feet wide

Product Highlights

Durable and reliable door closer with features for ease of use and installation, ideal for heavy-duty applications.

Product Information

Standard Information

• Brand: LCN
• Usage: Heavy Duty

Technical Specifications

• Mounting Options: Parallel Arm (Push Side)
• Body Construction: Cast Iron Body
• Spring Size: Adjustable Spring Size 1-6
• Fluid: All Weather Liquid X Fluid
• Door Application: Hollow Metal or Wood
• Handing: Non-Handed
• Certifications: Tested and certified under ANSI Standard A156.4 – Grade-1
• Fire Rating: UL and cUL Listed – up to 3 Hours (Non-Rated with Hold Open Arms)
• Cover: Full Cover
• Fasteners: Standard Universal Screw Pack includes Self Reaming and Tapping Screws (SRT), Machine Screws, Wood Screws and Thru Bolts
• Buy American Act Compliance: Meets Buy American Act – Made in USA
• Closer Series: 4040XP Series
• Material: Cast Iron
• Length: 16 inches
• Depth: 4.5 inches
• Width: 6 inches
• Subcategory: Surface Mount Closers
• Closer Type: Surface Mounted Closer
• Hazardous Material: NO
• Hold Open: No
• Manufacturer Warranty: Limited 30 Year Warranty
• Mounting Style: Surface Mounting
• UL Listing Type: UL 10C Rated
