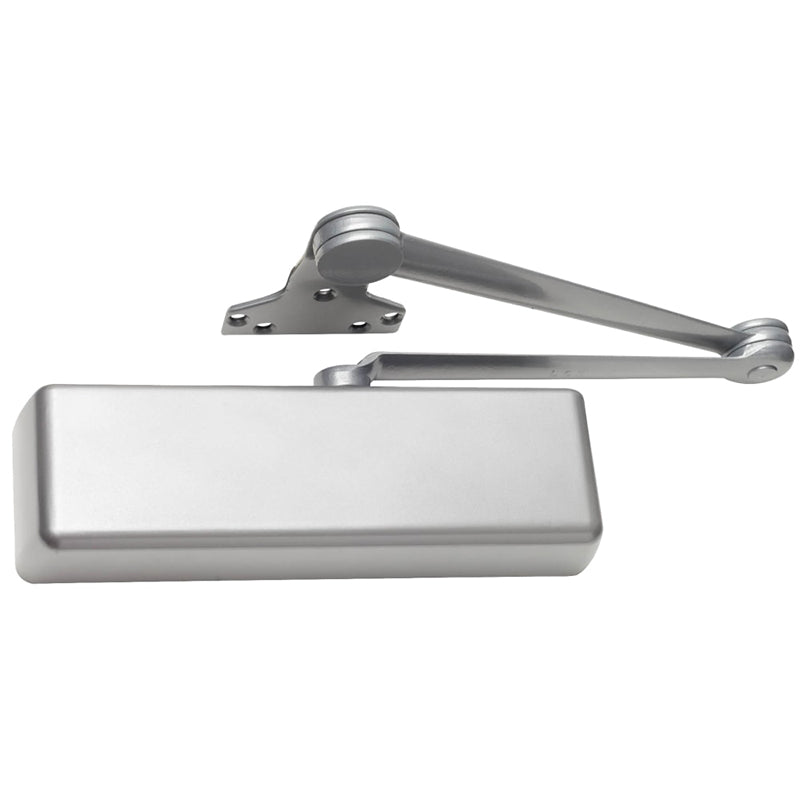

LCN CLOSERS 4040XP-EDA Surface Door Closer With Extra Duty Arm Push Side Mounting

Product Description

The LCN CLOSERS 4040XP-EDA is a surface door closer that features an extra duty arm designed for push side mounting. This unit allows for a 180-degree swing and offers an adjustable size range from 1 to 6. Built for high-traffic environments, it is equipped with a durable plastic cover and operates with a cast iron cylinder that includes a full-complement bearing along with all-weather Liquid X fluid.

• Features a sturdy Extra Duty Arm for Push Side Mounting
• Offers a 180-degree swing
• Adjustable size range of 1-6

Product Highlights

This door closer is ideal for commercial applications, providing longevity and reliability.

Product Information

Standard Information

• Manufacturer: LCN
• Grade: Grade 1

Technical Specifications

• UL Listing: UL 10C
• Origin: USA
• BAA Qualified: Yes
• Installation: Commercial
• Fire Rating: 3 Hours {A}
• ADA Compliance: Yes
• ANSI: A156.4
• Limited Warranty: 30 Years
• Handing: Non-Handed
• Type: Surface
• Mounting Group: Hydraulic
• Closer Size: 1 to 6
• Cold Weather Fluid: Yes
• Material: Cast Iron
• Mounting Hole Pattern: 1 inch Diagonal Mounting with 2-1/4 inch Spacing
• Spring Size: Adjustable 1-6 Size
