Product Description

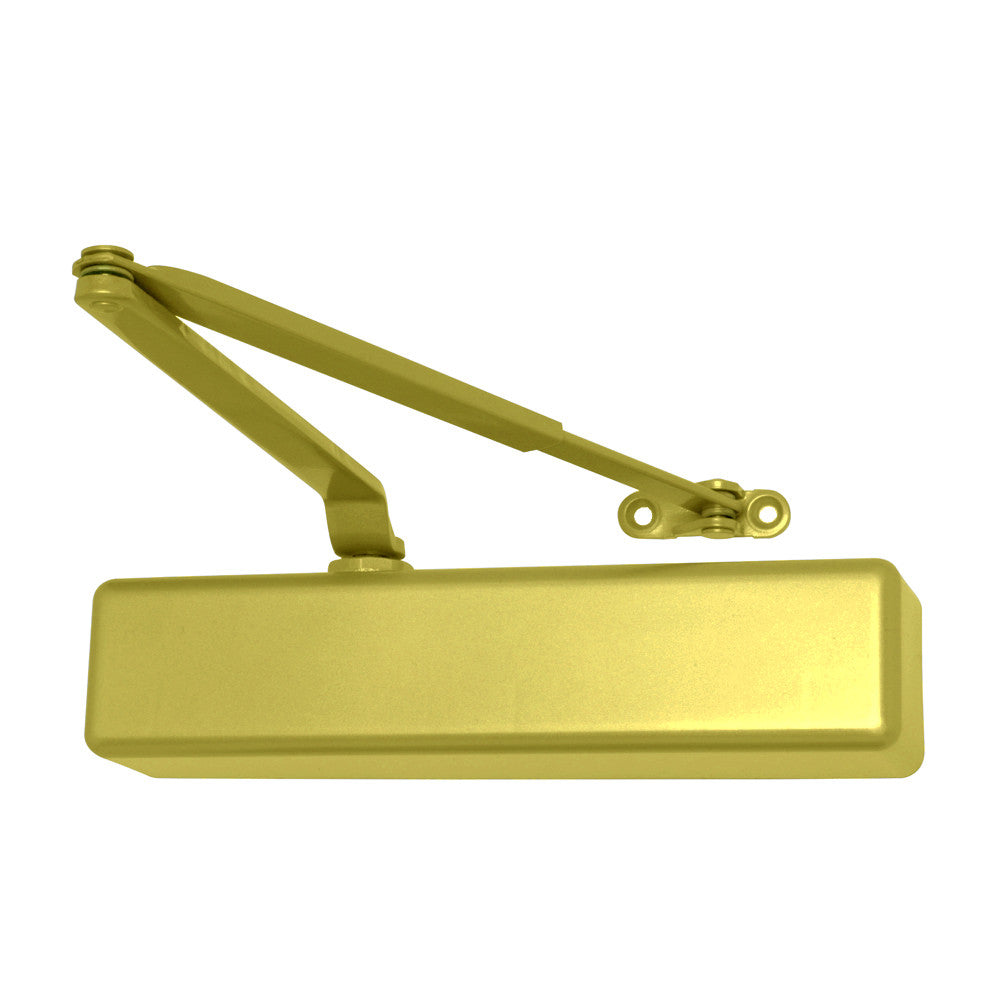

The LCN CLOSERS 1461-RW/PA-BRASS is a universal medium-duty closer designed for maximum versatility in commercial and institutional applications. It meets ANSI/BHMA A156.4 Grade 1 and ADA reduced opening force requirements. The closer installs quickly and accurately with peel-n-stick templates and features the LCN Green Dial for spring force adjustments. It is cUL and UL listed for self-closing doors without hold-open.
- Universal medium-duty closer designed for commercial and institutional applications
- Meets ANSI/BHMA A156.4 Grade 1 and ADA reduced opening force requirements
- cUL and UL listed for self-closing doors without hold-open
Product Highlights

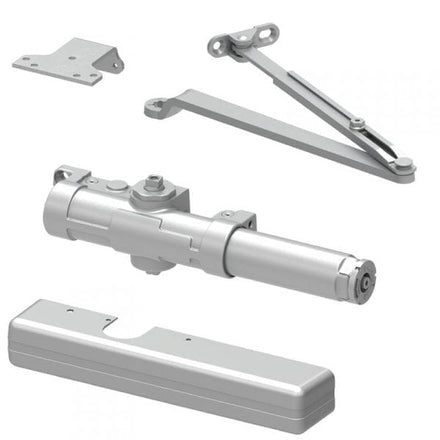

The LCN 1461 series door closer is versatile, durable, and easy to install, suitable for interior and exterior doors in various settings.
Product Information
Standard Information
-
Brand: LCN CLOSERS
-
Manufacturer Part Number: 1461-RW/PA-BRASS
-
Country of Origin: USA
Technical Specifications
-
Brand: LCN
-
Finishes: 693 Black (Powder Coated), 689 Aluminum (Powder Coated), 691 Light Bronze (Powder Coated), 696 Brass (Powder Coated), 695 Dark Bronze (Powder Coated)
-
Templating (Hole Pattern): 1" x 7-1/2"
-
Usage: Medium Duty
-

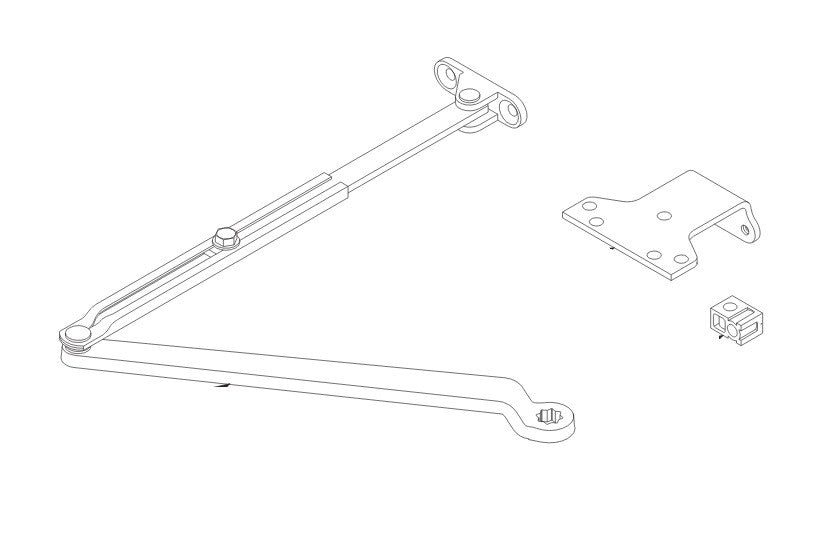

Mounting Options: Parallel Arm (Push Side), Regular (Pull Side), Top Jamb (Push Side)
-
Body Construction: Cast Iron Body
-
Spring Size: Adjustable Spring Size 1-6
-
Fluid: All Weather Fluid
-
Handing: Non-Handed
-
Door Application: Hollow Metal, Wood or Aluminum
-
Certifications: Grade 1 - ANSI A156.4, UL 10C, ADA, 100 Hour Salt Spray, Meets BAA - Buy American Act
-
ADA Compliance: Meets ADA requirements - A117.1 Accessibility Code
-
Fire-Rating: UL and cUL Listed - up to 3 Hours (Non-Rated with Hold Open Arms)
-
Cover: Slim Cover Standard (Full Cover Optional)
-
Fasteners: Self Reaming and Tapping Screws (SRT)
-
Product Type: Door Closer
-
Series: 1461
-
Finish: Brass
-
Mount Type: Surface Mount
-
Material: Cast Iron
-
Color: Matte Brass
-
Rec. use: Interior
-
Compatibility: Interior and Exterior Doors
