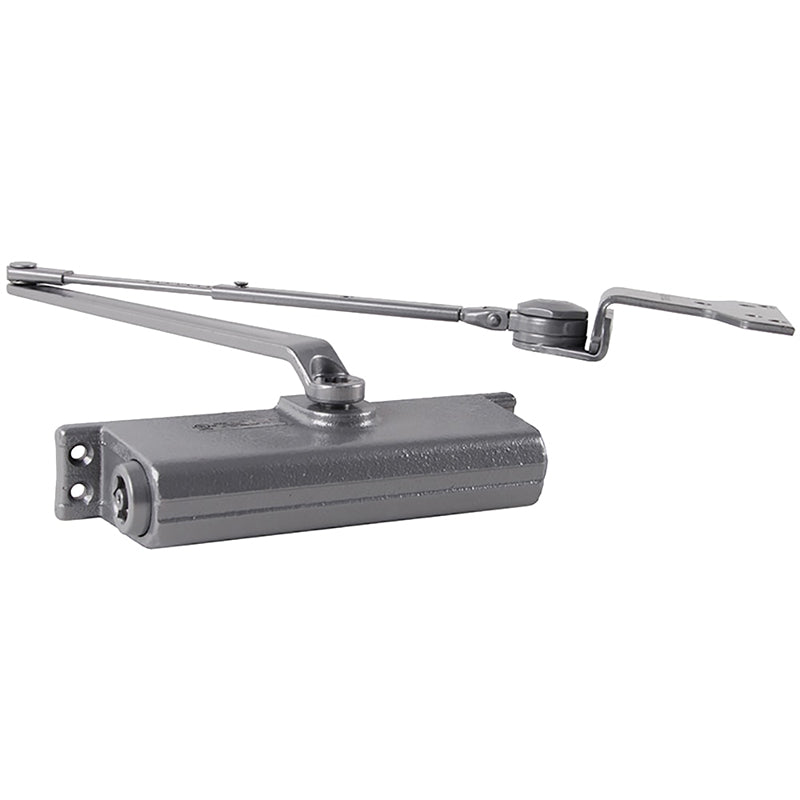

LCN CLOSERS 1261-HW/PA-AL HW/PA Hold Open Arm with Parallel Arm Shoe Door Closer

Product Description

The LCN CLOSERS 1261-HW/PA-AL is a durable door closer designed for commercial applications. It incorporates a hold-open arm and parallel arm shoe for versatile use. The construction uses cast iron and an all-weather fluid, ensuring longevity and reliability. This surface-mounted unit is non-handed and allows for spring power adjustments from size one to size five. It is shipped pre-set to size three for immediate installation.

• Tested and certified under ANSI Standard A156.4, grade one
• Constructed with cast iron and all-weather fluid
• Spring power adjustable from size 1 through size 5

Product Highlights

This door closer is suitable for light to medium-duty applications where a hold-open feature is desired. It is ideal for various commercial settings.

Product Information

Standard Information

• Manufacturer: LCN
• Grade: Grade 1

Technical Specifications

• Installation: Commercial
• Origin: USA
• Unit of Measure: Each
• Base Material: Cast Iron
• UL Listing Type: UL10C
• ANSI Number: A156.4
• BAA Qualified: Yes
• Limited Warranty: 20 Years
• Type: Surface
• Technology: Hydraulic
• Mounting Location: Push or Pull Side
• Mounting Style: Tri Mount
• Hold Open: Yes
• Degree Hold Open: 180 Deg.
• Closer Size: 1 to 5
• Arm Type: Hold Open Arm
• Hand: Non-Handed
• Degree Swing: 180 Deg.
• Cover: No
• Screw Type: Self Reaming and Tapping Screws
• Cold Weather Fluid: Yes
• Product Type: Surface Closers
