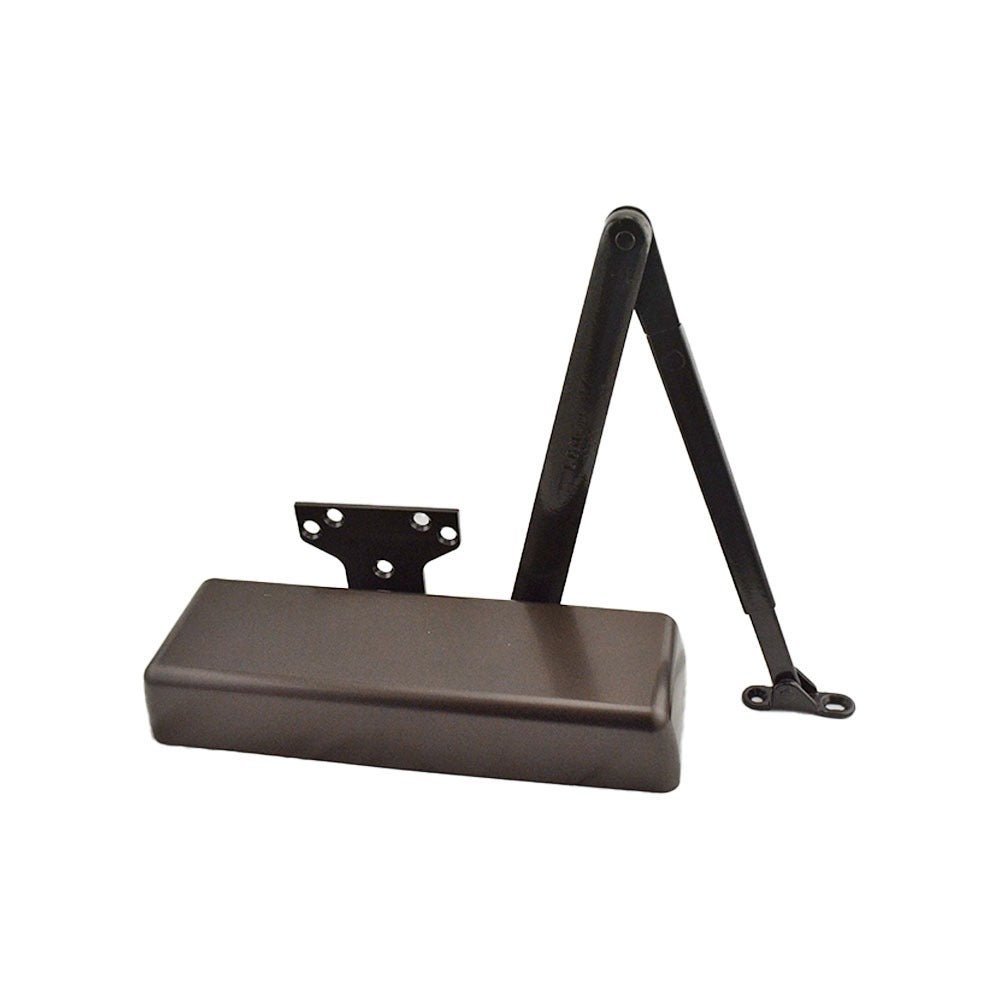

Lcn 4041DELRWPADKBRZ Parallel Arm Door Closer Dark Bronze

Product Description

The LCN 4041DELRWPADKBRZ is a surface-mounted, parallel arm door closer with a built-in delay feature, designed for heavy-duty commercial and institutional door applications. Part of the LCN Super Smoothee 4040 series, this closer delivers adjustable closing force across sizes 1 through 6, allowing installers to dial in the correct closing speed and latching action for a wide range of door weights and widths. It includes TBSRT thru bolts for a secure mounting connection and ships in a 695 Dark Bronze finish. The unit weighs 11.4 pounds and measures 15.7 inches in length, 4.6 inches in width, and 4.3 inches in height.

This closer is suited for high-traffic commercial installations including schools, hospitals, government buildings, and correctional facilities. The parallel arm configuration is commonly specified where the door closer must mount on the push side of the door or where a standard top-jamb or regular arm mount is not practical. The built-in delay function holds the door open momentarily before initiating the closing cycle, which is useful in high-traffic corridors and accessible entry applications. Installation is typically performed by a licensed door hardware technician or commercial locksmith.

Key Features

• Adjustable closing force from size 1 to size 6 to accommodate a broad range of door weights and widths
• Integrated delay feature holds the door open before initiating close cycle
• Parallel arm surface-mount configuration for push-side door installations
• Includes TBSRT thru bolts for secure, vibration-resistant mounting
• 695 Dark Bronze finish for commercial aesthetic consistency
• Heavy-duty construction rated for high-traffic institutional environments

Compatibility

Designed as an OEM-style surface-mounted door closer replacement or new installation unit for commercial hollow metal and wood doors requiring a parallel arm, adjustable-size closer with delay function.

Installation Notes

Installation should be performed by a qualified door hardware technician or commercial locksmith familiar with ANSI/BHMA standards for door closers. Disengage all power to any electrified hardware in the door assembly before beginning work. Confirm door and frame construction can support thru-bolt mounting before drilling. Adjust spring tension and sweep, latch, and delay valves only after the closer is fully mounted and the door is hung at correct alignment.
