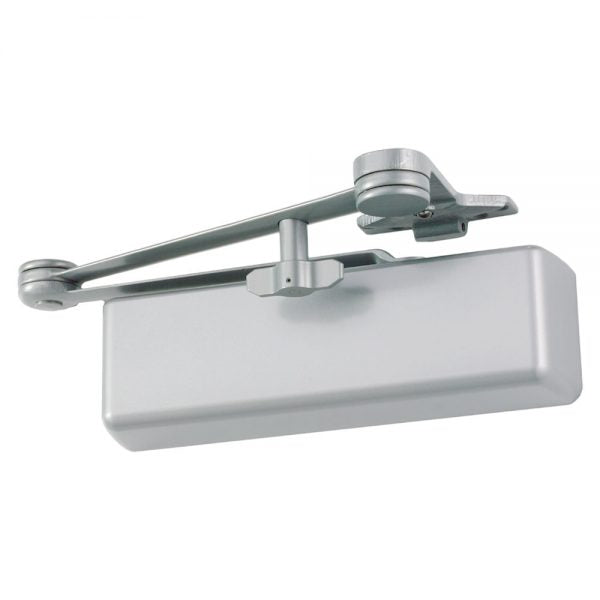

LCN 4040XP-HCUSH-AL HCUSH Door Closer with CUSH-N-STOP Heavy Duty Hold Open Parallel Arm

Product Description

The LCN CLOSERS 4040XP-HCUSH-AL is designed for heavy-duty use in high-traffic areas. This product is suitable for both commercial and institutional doors. It features an adjustable spring size ranging from one to six and is equipped with a patented green dial for easy adjustments. The closer supports interior doors up to five feet wide and exterior doors up to four feet wide.

• Includes CUSH-N-STOP arm and a full cover.
• Tested for high-traffic usage in commercial and industrial settings.
• Adjustable spring size from 1-6.

Product Highlights

This door closer is ideal for heavy-duty applications, providing durability and flexibility to withstand constant use.

Product Information

Standard Information

• Brand: LCN
• Finishes: Available in various powder-coated finishes including aluminum, light bronze, black, dark bronze, and brass.

Technical Specifications

• Templating (Hole Pattern): Two and one-quarter inches by five inches.
• Certifications: ANSI Standard A156.4 – Grade-1 certified.
• Body Construction: Cast iron body for durability.
• Spring Size: Adjustable from one to six.
• Handing: Non-handed design.
• Fluid: Compatible with all-weather liquid X fluid.
• Fire Rating: Non-rated with hold open arm.
• Mounting Options: Parallel arm installation (push side).
• Cover: Features a full cover.
• Door Application: Suitable for hollow metal or wood doors.
• Usage: Heavy duty.
• Material: Aluminum.
• Exterior Finish: Aluminum.
