LCN 4040XP-CUSH-AL CUSH Door Closer with CUSH-N-STOP Heavy Duty Parallel Arm

Product Description

The LCN CLOSERS 4040XP-CUSH-AL is a heavy-duty door closer designed for high-traffic environments. This closer is ideal for commercial, industrial, and institutional applications. Its reliable construction features a solid forged steel main arm and forearm with a soffit shoe stop for added durability. The included 4040XP-3077CNS Cush-N-Stop arm allows for smooth door operation.

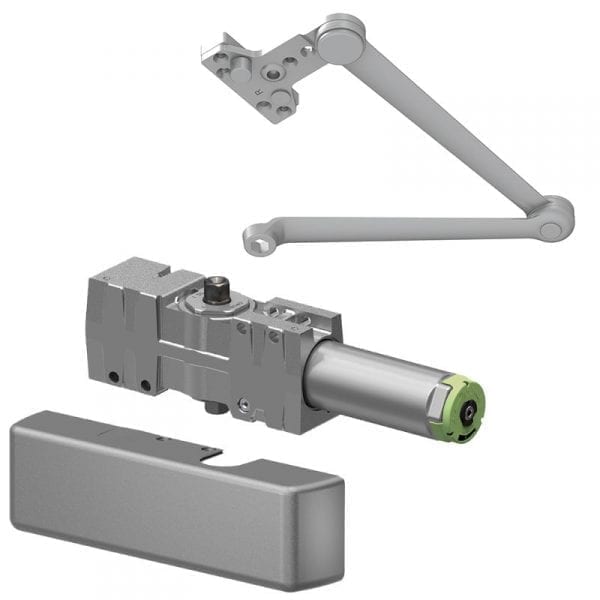

• Includes 4040XP-3077CNS Cush-N-Stop Arm
• Solid forged steel main arm and forearm with a stop in the soffit shoe
• Adjustable spring size from 1 to 6

Product Highlights

This closer meets demanding performance standards, ensuring a long-lasting solution for various door types.

Product Information

Standard Information

• Brand: LCN
• Finishes: 689 Aluminum, 691 Light Bronze, 693 Black, 695 Dark Bronze, 696 Brass

Technical Specifications

• Templating (Hole Pattern): 2-1/4 inches x 5 inches
• Usage: Heavy Duty
• Mounting Options: Parallel Arm (Push Side)
• Body Construction: Cast Iron Body
• Spring Size: Adjustable Spring Size 1-6
• Fluid: All Weather Liquid X Fluid
• Door Application: Hollow Metal or Wood
• Handing: Non-Handed
• Certifications: ANSI Standard A156.4 – Grade-1
• Fire Rating: UL and cUL Listed – up to 3 Hours
• Cover: Full Cover
• Fasteners: Standard Universal Screw Pack
• Material: Aluminum
