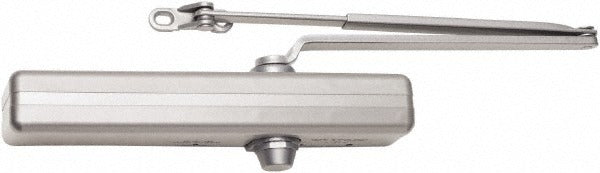

Lcn 1461-RW/PA 689 Door Closer Damper Hydraulic

Product Description

The LCN 1461-RW/PA 689 is a hydraulic door closer damper designed for commercial and institutional door applications. Built with a cast iron housing and finished in aluminum, this unit provides controlled door closing action through hydraulic resistance. The regular arm configuration mounts on the pull side of the door and is non-handed, meaning it installs on either the left- or right-hand swing without requiring a separate part. The housing measures 72.00 millimeters in height and 60.00 millimeters in depth. The unit weighs 10 pounds. Licensed contractors and facility maintenance professionals are the typical installers for this type of hardware.

This door closer damper is suited for standard commercial door openings requiring controlled, manual-close operation. The non-handed design simplifies inventory management for contractors and building service teams working across multiple door orientations. The 1461 series is a recognized product line for interior and exterior commercial door applications in office, institutional, and light industrial environments. The pull-side mount configuration is common on doors where the closer body is installed on the side toward the person pulling the door open.

Key Features

• Hydraulic operation provides smooth, controlled door closing action
• Cast iron housing for durability in high-cycle commercial applications
• Non-handed design installs on left- or right-hand swing doors without modification
• Pull side mount configuration suits standard commercial door installations
• Maximum opening angle of 180 degrees
• Aluminum finish for a clean appearance on standard commercial hardware

Compatibility

Designed as an OEM-style replacement or new-installation door closer for standard commercial doors with a regular arm pull-side mount configuration within the LCN 1461 series.

Installation Notes

Installation is typically performed by a licensed door hardware technician or general contractor. Ensure the door frame and door face are structurally sound before mounting. Follow the template provided by the manufacturer for proper hole placement, and verify that fastener length is appropriate for the door and frame material. Consult applicable building codes for required closing force and accessibility compliance before final adjustment.
