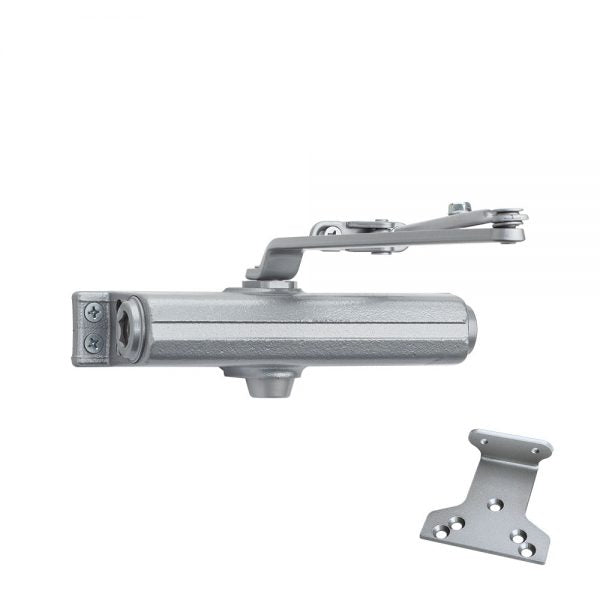

LCN 1261-RW/PA-DKBZ Rw/PA Door Closer Adjustable Spring Size 1-5

Product Description

The LCN CLOSERS 1261-RW/PA-DKBZ is built for light- to medium-duty applications. It is suitable for the standard commercial footprint. This door closer follows ANSI/BHMA A156.4 Grade 1 and ADA reduced opening force standards. It is listed as cUL and UL for self-closing doors without hold-open features and comes with a limited warranty of 20 years.

• Designed for light- to medium-duty applications.
• Meets ANSI/BHMA A156.4 Grade 1 and ADA requirements.
• Adjustable spring size ranges from 1 to 5.

Product Highlights

This door closer is universal and non-handed, providing flexibility in installation.

Product Information

Standard Information

• Brand: LCN
• Usage: Standard Duty

Technical Specifications

• Finishes: 689 Aluminum, 691 Light Bronze, 693 Black, 695 Dark Bronze, 696 Brass
• Templating (Hole Pattern): Three-fourth inches by nine and one-sixteenth inches
• Mounting Options: Parallel Arm, Regular, Top Jamb
• Spring Size: Adjustable Spring Size 1-5
• Fluid: All Weather Fluid
• Door Application: Hollow Metal, Wood, or Aluminum
• Handing: Non-Handed
• Body Construction: Cast Iron
• Certifications: ANSI Standard A156.4, Grade-1
• ADA Compliance: Meets A117.1 Accessibility Code
• Fire Rating: UL and cUL Listed, up to three hours
• Fasteners: Universal Screw Pack includes various screws
• Warranty: 20 Year Limited
• Buy American Act Compliance: Meets BAA
• Height: Four and one-fourth inches
• Length: Fifteen and three-fourths inches
• Width: Six inches
