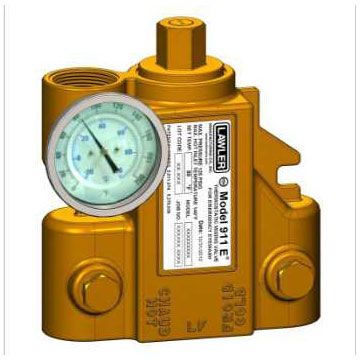

Lawler 8429-10 911E - 1-1/4 Emergency Mixing Valve for Drench Showers and Eye/Facewash Units

Product Description

Lawler 911E is a mid capacity emergency mixing valve designed for drench showers and eye/facewash units. It features one and one-quarter inch NPT inlets and outlets and operates within a temperature range of seventy to ninety degrees Fahrenheit. This valve supports a maximum inlet pressure of one hundred twenty-five psi and a recommended operating pressure of sixty-five psi. An integral cold water bypass is included, with a flow rate between two to twenty-five gallons per minute at thirty psi. The 911E valve can be installed in existing emergency shower setups.

• Meets ASSE 1071 certification for emergency fixtures.
• Compatible with various emergency shower systems.
• Constructed from brass for durability.

Product Highlights

Reliable valve for ensuring safe water temperature in emergency situations.

Product Information

Standard Information

• Brand: Lawler
• Model: 911E

Technical Specifications

• MPN: 8429-10
• Valve Application: Tempered Water for Emergency Fixtures
• Body Material: Brass
• Valve Connection: FPT
• Inlet Connection Size: 1-1/4
• Outlet Connection Size: 1-1/4
• Minimum Flow GPM: 2 GPM
• Minimum Outlet Temperature: 70
• Maximum Outlet Temperature: 90
• Max Pressure: 125 psi
• Point-of-Use Certified: Yes
• Point-of-Source Certified: Yes
• ASSE Classification: 1071
• Weight: 15.00
