Lawler 8334-36 911 1-1/4 inches Brz Mixing Valve 70-90F 2-60 GPM

Product Description

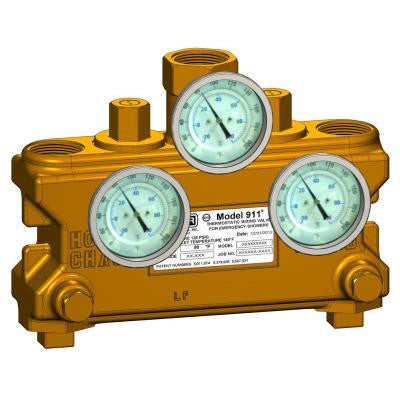

The LAWLER 8334-36 911 is a 1-1/4" bronze mixing valve designed for emergency shower and eyewash stations. It maintains a temperature range of 70-90F with a flow rate of 2-60 GPM. The valve features redundant thermostatic elements and a positive hot water shut-off. It also has an integral cold water bypass for added safety.

• High capacity emergency mixing valve
• For combination shower and eye/facewash stations
• Contains two thermostatic elements
• Provides tepid water at times of failure

Product Highlights

This valve ensures safe tepid water delivery during emergencies, meeting ANSI Z358.1-2014 standards. It's easily installed and tested in existing emergency shower applications.

Product Information

Standard Information

• Brand: LAWLER
• Manufacturer Part Number: 8334-36

Technical Specifications

• Brand: Lawler
• Model: 911
• MPN: 8334-36
• Valve Application: Tempered Water for Emergency Fixtures
• Body Material: Brass
• Valve Connection: FPT
• Inlet Connection Size: 1-1/4"
• Outlet Connection Size: 1-1/4"
• Minimum Flow GPM: 2 GPM
• Minimum Outlet Temperature: 70
• Maximum Outlet Temperature: 90
• Max Pressure: 125 psi
• Point-of-Use Certified: Yes
• Point-of-Source Certified: Yes
• ASSE Classification: 1071
• Series: 911
• Application: Emergency
• Certification/s: ASSE 1071, Lead Free
• Connection Type: NPT
• Rated Flow at 10 PSI: 35 GPM"
• Rated Flow at 45 PSI: 72 GPM"
• Temperature Range: 70°F – 90°F
