Lau Parts DD11-10A Blower Wheel Squirrel Cage 11-3/4 inches x 10-5/8 inches x 1/2 inches CW Replacement MPN

Product Description

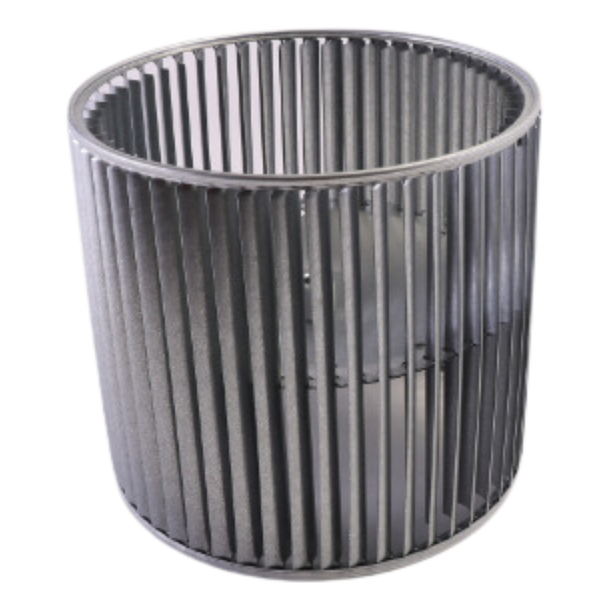

The LAU PARTS DD11-10A blower wheel, part number 02694111, is a replacement "DD" Preslok wheel for direct drive blowers. It is dynamically balanced and forward curved, incorporating the Preslok center disc construction for positive blade retention. Constructed of galvanized, cold-rolled steel, this wheel offers higher RPM capability and industry-proven reliability.

• Dynamically balanced
• Forward curved
• Preslok center disc construction for positive blade retention
• Made of galvanized, cold-rolled steel

Product Highlights

This blower wheel features a 1/2" bore, CW rotation, and measures 11-3/4" in diameter and 10-5/8" in length. It has 53 blades and a max RPM of 1550.

Product Information

Standard Information

• Brand: LAU PARTS
• Manufacturer Part Number: DD11-10A

Technical Specifications

• Bore Size: 1/2"
• Rotation: CW Rotation as viewing bore end. Concave
• Outside Diameter: 11-3/4", Length 10-5/8"
• Number of blades: 53
• Max RPM: 1550
• Type: Concave, Double Inlet, Direct Drive
