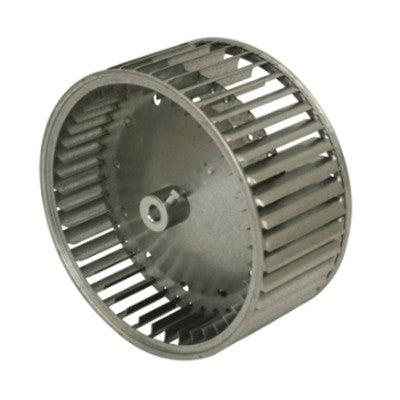

Lau Parts DD10-7A Blower Wheel Squirrel Cage 10-5/8 inches x 7-1/8 inches x 1/2 inches CW 013325-01

Product Description

The LAU PARTS DD10-7A blower wheel, also known as a squirrel cage, is a replacement "DD" Preslok wheel designed for direct drive blowers. Dynamically balanced and forward curved, it incorporates a Preslok center disc for positive blade retention, offering higher RPM capability. The wheel is constructed from galvanized, cold-rolled steel. Rotation is determined by viewing the hub (bore) end.

• Designed for direct drive blowers
• Constructed from galvanized, cold-rolled steel
• Features a 1/2" bore size with CW rotation when viewing the bore end

Product Highlights

This blower wheel is dynamically balanced with a forward curved design, ensuring reliability and performance.

Product Information

Standard Information

• Brand: LAU PARTS
• Manufacturer Part Number: DD10-7A
• Country of Origin: United States

Technical Specifications

• Hub Bore Size: 1/2 Inch
• Rotation: CW
• Center Disc: Convex
• Max. RPM: 1750
• Outer Diameter: 10-5/8 Inch
• Width: 7-1/8 Inch
• Blade Inner Diameter: 8-7/8 Inch
• Hub Diameter: 1-1/4 Inch
• Hub Inner Height: 1-15/16 Inch
• Blades: 48
• Compatible Brand: Lau
• Type: Blower Wheel
• Model Number: 013325-01
• Brand: Lau
• MPN: 01332501
• Product Type: Blower Wheel
• Country of Origin: United States
