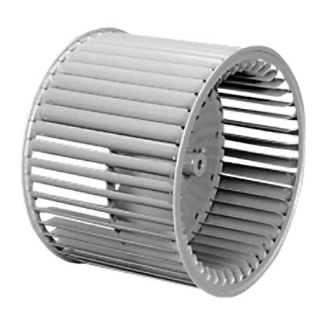

Lau Hvac LAU02694009 Blower Wheel 11-3/4 in Dia x 9-1/2 in W

Product Description

The LAU HVAC LAU02694009 is a blower wheel designed for HVAC applications. This double inlet wheel features precise blade spacing for consistent alignment and balance. It is a forward curved wheel that provides quiet performance and includes a Preslok center disc with a special hub for use with direct drive blowers. The blower wheel has 53 blades and a CW rotation.

• Double inlet with precise blade spacing and consistency in alignment and balance
• Quiet performance, forward curved wheel
• Preslok centre disc with a special hub for use with direct drive blowers

Product Highlights

This blower wheel is suitable for heating and AC applications, featuring a strong construction with two hubs and a center disc mechanically attached to each blade.

Product Information

Standard Information

• Brand: LAU HVAC
• Manufacturer Part Number: LAU02694009

Technical Specifications

• Dimensions: 11-3/4 in Dia x 9-1/2 in W
• Finish: Galvanized
• Series: DD11-9A Series
• Speed Rating: 1550 rpm
• Temperature Rating: 200 deg F
