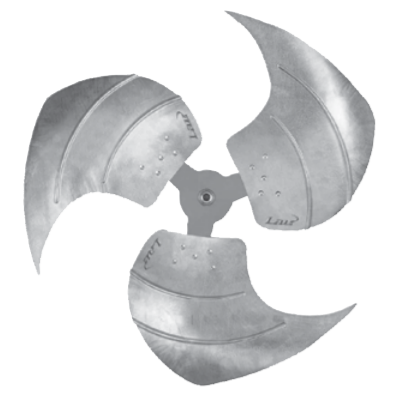

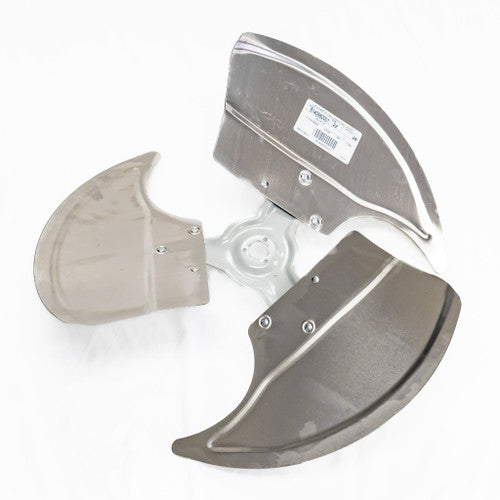

Lau 6140660001 3-Blade Swept Fan (22 inch 28 degree CW Interchange Hub)

Product Description

Lau 6140660001 is a 3-blade swept fan blade assembly (Cobra blade) designed for air conditioner condensers, heat pumps, chillers, and packaged outdoor units. The blade measures 22 inch diameter with a 28 degree pitch and clockwise rotation, and it uses an interchangeable hub; hub is sold separately. Constructed from high-strength aluminum, the design reduces turbulence and lowers noise; performance example: 3981 CFM at 1140 RPM and 0.30 in. w.c.

• Three-blade swept design; 22 inch diameter, 28 degree pitch, clockwise rotation
• Interchangeable hub (hub sold separately); compatible hub bores: 1/4, 5/16, 3/8, 1/2, 5/8, 3/4 inch
• High-strength aluminum Cobra design; 3981 CFM and 1/2 HP at 1140 RPM and 0.30 in. w.c.

Product Highlights

Cobra high static efficiency 3-blade propeller for condensers and heat pumps with interchangeable hub compatibility and reduced turbulence for lower noise.

Product Information

Standard Information

• Brand: LAU
• Manufacturer Part Number: 6140660001
• Country of Origin: Mexico

Technical Specifications

• Brand: Lau
• Manufacturer Part Number: 6140660001
• Product Name: 3-Blade Swept Fan (Cobra Blade)
• Blade Count: 3
• Diameter: 22 inch
• Pitch: 28 degree
• Rotation: Clockwise (CW)
• Hub Type: Interchangeable hub (hub sold separately)
• Hub Bore Options: 1/4 inch; 5/16 inch; 3/8 inch; 1/2 inch; 5/8 inch; 3/4 inch
• Material: High-strength aluminum
• Applications: Air conditioner condensers, HVAC heat pumps, commercial chillers, packaged outdoor units
• CFM: 3981 CFM @ 1140 RPM and 0.30 in. w.c.
• Horsepower: 1/2 HP @ 1140 RPM and 0.30 in. w.c.
• Design: Cobra high static efficiency (HSE)
• Country of Origin: Mexico
