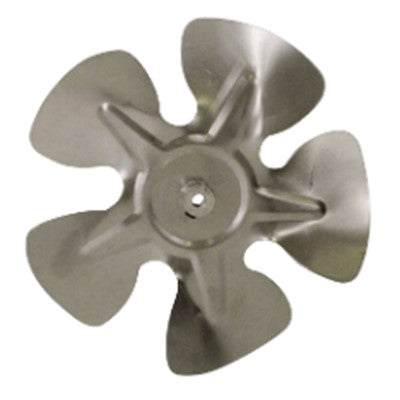

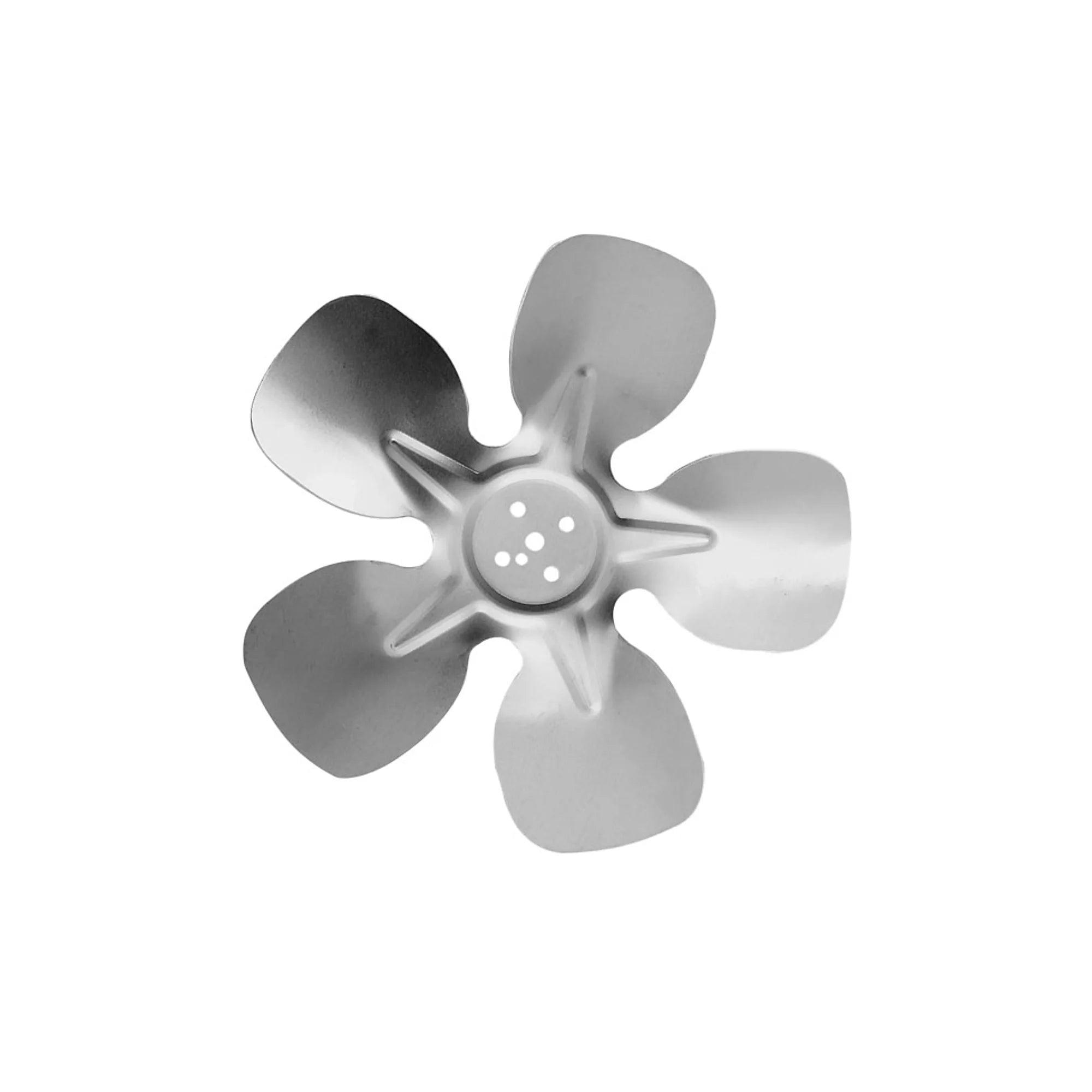

Lau 60835001 5 blade fan blade 7 inches 27°

Product Description

The LAU 60835001 is a 7-inch, 5-blade fan blade designed for efficient air movement. This 1-piece propeller features a 27-degree pitch and a 5/16 inch bore size, operating with a clockwise (CW) rotation. Constructed from aluminum blades with a painted steel spider, it is suitable for applications such as fan coils, heaters, small appliances, freezers, refrigerators, industrial air circulators, exhaust fan units, and large condensing units, capable of reaching a maximum of 3600 RPM.

• Features a 7-inch diameter with 5 blades for effective air circulation.
• Equipped with a 27-degree pitch and a 5/16 inch hub bore size.
• Constructed from durable aluminum blades with a painted steel spider.

Product Highlights

Durable aluminum fan blade with a fixed hub, designed for clockwise rotation in various HVAC and appliance applications.

Product Information

Standard Information

• Brand: LAU
• Manufacturer Part Number: 60835001
• Country of Origin: USA

Technical Specifications

• Material: Aluminum blades with painted Steel spider
• Diameter: 7 inches
• Bore Size: 5/16 inches
• Number of Blades: 5
• Pitch: 27 degrees
• Rotation: Clockwise (CW)
• Type: 1-Piece
• Maximum RPM: 3600 RPM
• Hub Type: Fixed
