LAU 4C1233CCW Condenser Fan Blade

Product Description

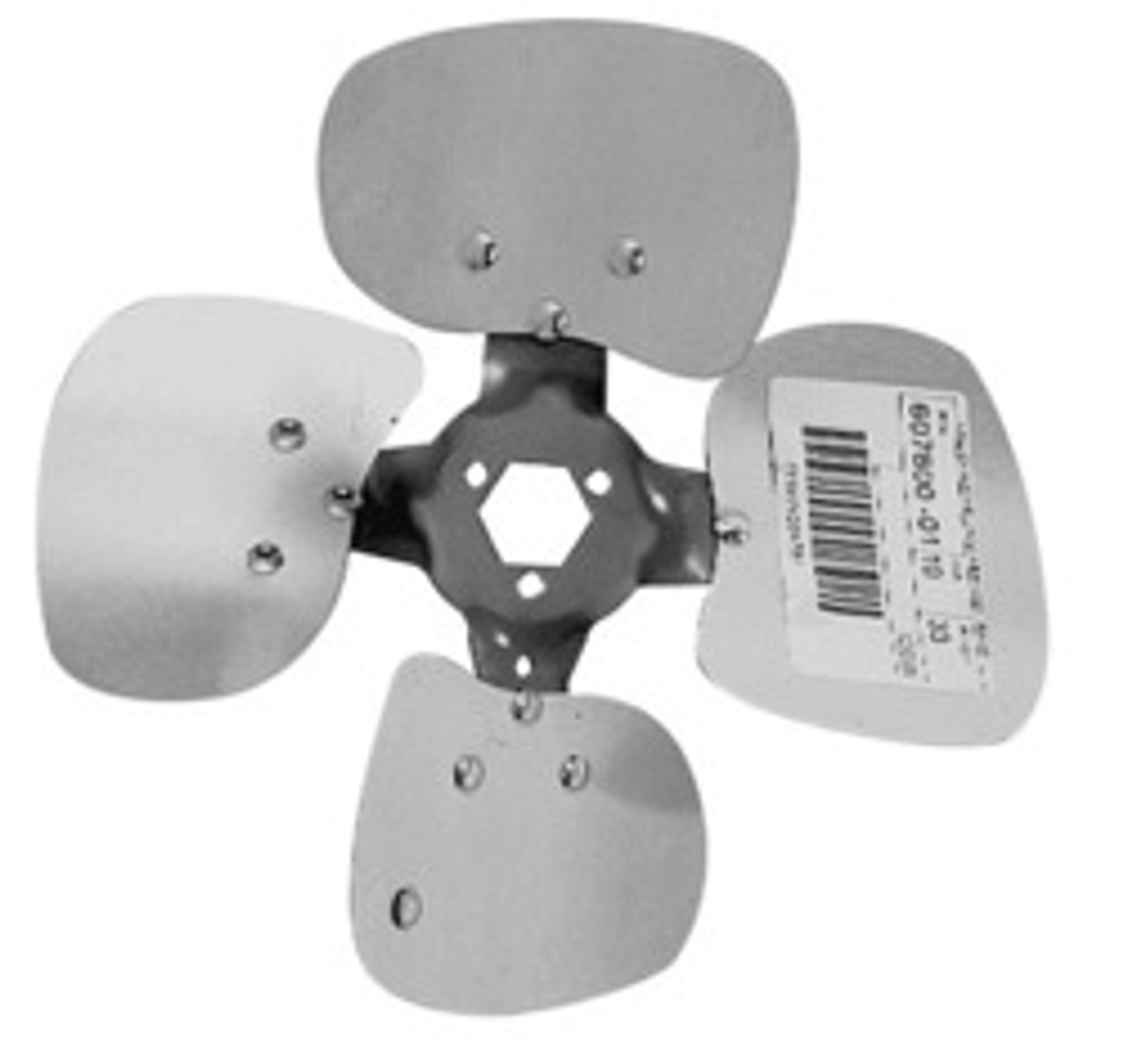

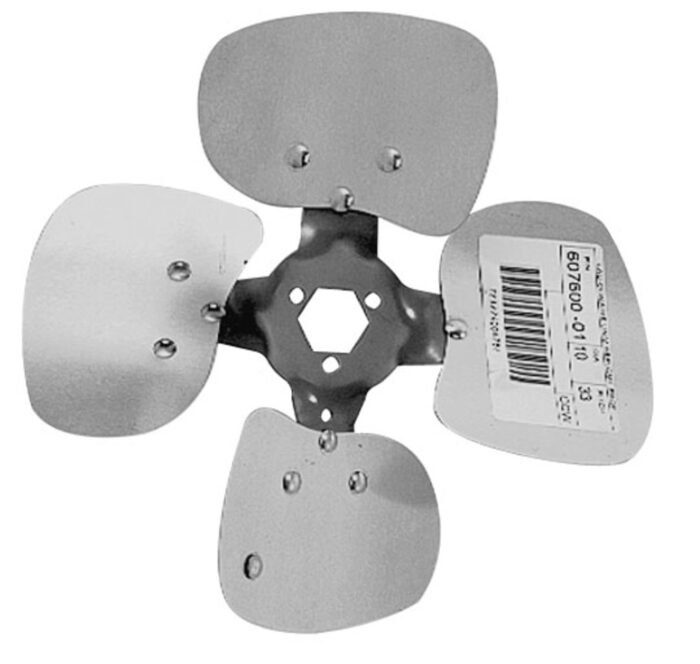

The LAU 4C1233CCW is a four-wing condenser fan blade used in air conditioning and heating systems. This blade is made from aluminum and has a diameter of twelve inches. It features a pitch of thirty-three degrees and is designed to rotate counterclockwise. The blade is compatible with an interchangeable hub, making it flexible for various uses. Its depth ranges from two and a half inches to three and three eighths inches.

• Four-wing design for efficient airflow
• Constructed from durable aluminum
• Requires an interchangeable hub for installation

Product Highlights

This product is reliable for HVAC applications, ensuring optimal performance and longevity.

Product Information

Standard Information

• Manufacturer Part Number: 4C1233CCW
• Material: Aluminum

Technical Specifications

• Blade Diameter: 12 inches
• Blade Depth: 3-3/8 inches
• Number of Blades: 4
• Rotation: Counterclockwise
• Pitch Degrees: 33
• RPM: 1075/1550/1725
• Static Pressure 0.0 Bhp: 0.032/0.087/0.119
• Static Pressure 0.0 Cfm: 953/1369/1508
• Static Pressure 0.3 Bhp: 0.062/0.129/0.163
• Static Pressure 0.3 Cfm: 326/919/1172
• Hub Type: Requires interchangeable hub
• Weight: 10.00 lbs
