LAU 3F1423CCW Free Air Fan Blade 14 Inch Replacement MPN

Product Description

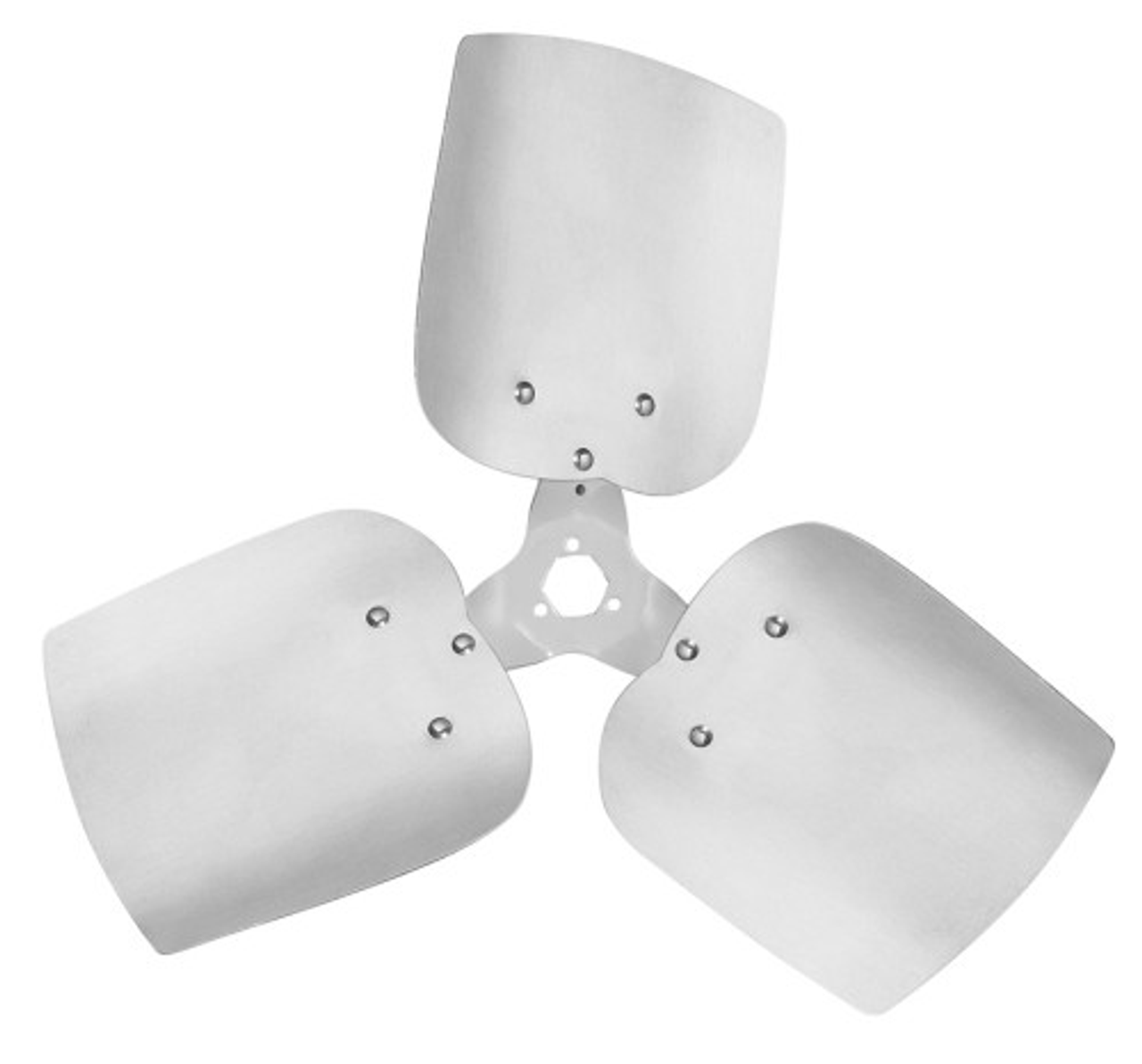

The LAU 3F1423CCW is a free air fan blade with a diameter of fourteen inches. It has a pitch of twenty-three degrees and a blade depth of two and a half inches. The rotation of the blade is counterclockwise (CCW). Made from aluminum, this fan blade is designed for use with an interchangeable hub that is sold separately.

• Diameter: fourteen inches
• Pitch: twenty-three degrees
• Rotation: counterclockwise (CCW)

Product Highlights

This fan blade is suitable for various ventilation and cooling applications. It plays a key role in providing optimal airflow in different settings, including industrial and commercial spaces.

Product Information

Standard Information

• Weight: thirty pounds
• Material: aluminum

Technical Specifications

• Rotation: CCW
• Diameter: fourteen inches
• Pitch: twenty-three degrees
• Blade Depth: two and a half inches
• Blade Quantity: three
• RPM: 1075/1550/1725
• Static Pressure 0.0 Bhp: 0.019/0.033/0.048
• Static Pressure 0.0 Cfm: 740/1080/1210
• Hub Type: Interchangeable (not included)
