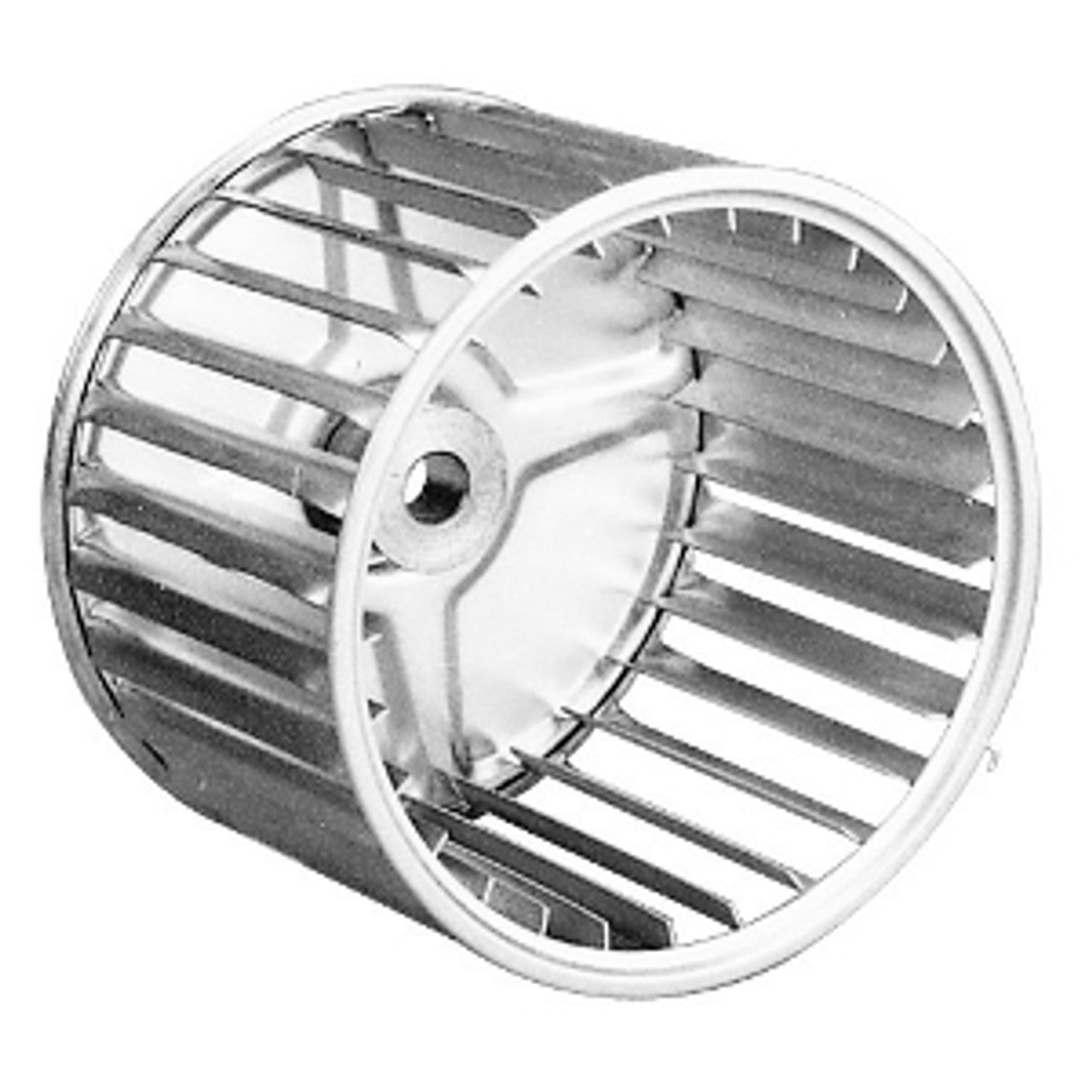

Lau 020491-24 Single Inlet Blower Wheel, 7-7/16 Diameter, 2-3/4 Width, 1/2 Bore

The Lau 020491-24 is a single inlet blower wheel made for direct drive applications. This wheel has a 7-7/16 diameter and a 2-3/4 width with a 1/2 bore. The Lau 020491-24 is rated for a max RPM of 1650 and CW rotation.

Typical applications for this blower wheel are packaged terminal air conditioner (PTAC) systems, room air conditioners, fan coil units, draft inducers, power burners, and heaters.

NOTE: The bore can be bored out to fit odd or larger sizes up to 5/8. Also, two of these single inlet blower wheels can be combined to replace a double inlet wheel.

Specifications:

Product Type: Blower Wheel
Inlet Type: Single Inlet
Application: Direct Drive
Diameter: 7-7/16 (in.)
Width: 2-3/4 (in.)
Bore Size: 1/2 (in.
Rotation: Clockwise
Max RPM: 1650
DEM Reference: NOHP
