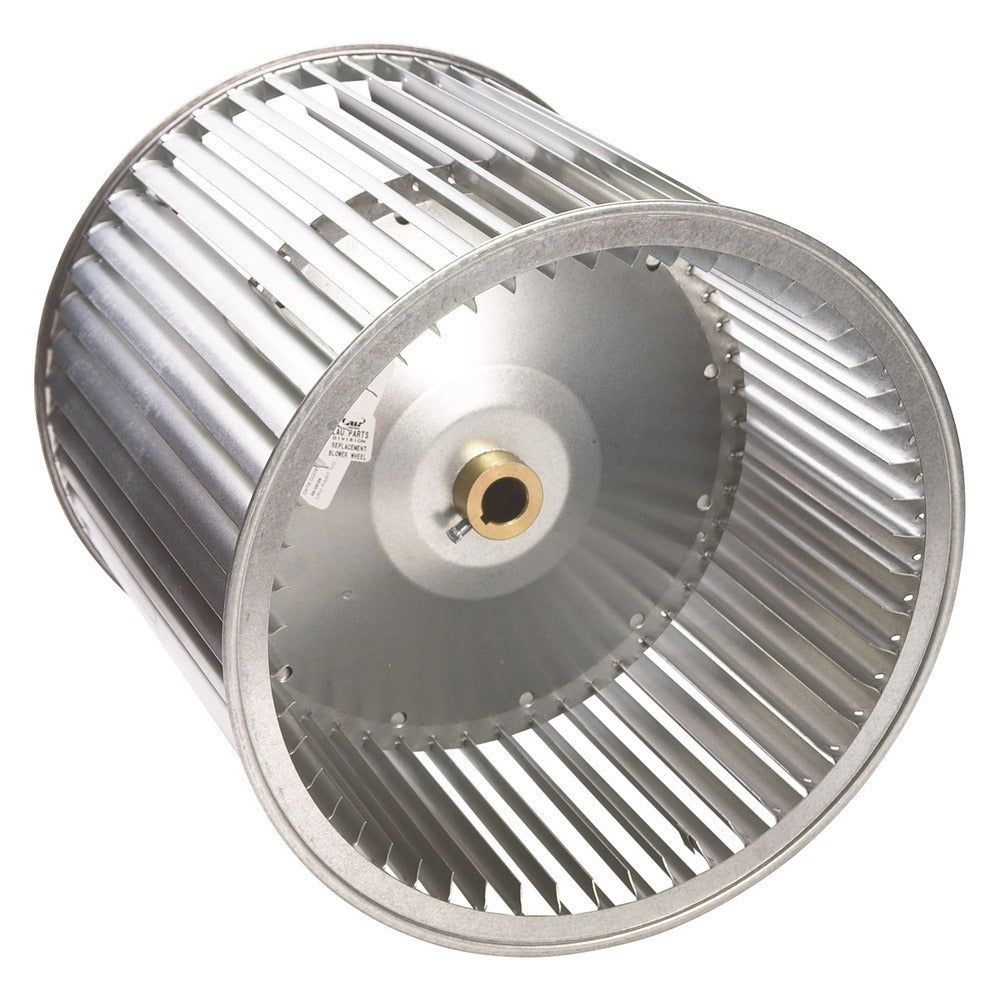

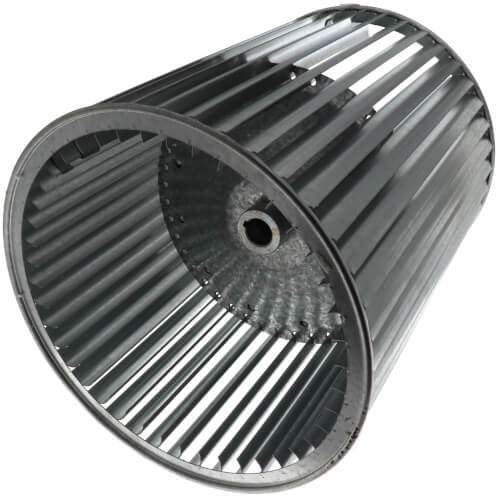

Lau 008747-16 Belt Drive Double Inlet Blower Wheel 13-3/16 Inch Dia x 15 Inch W Wheel 1 Inch Bore

Product Description

The Lau 008747-16 is a belt drive double inlet blower wheel designed for efficient airflow in HVAC applications. This component features a diameter of thirteen point one nine inches and a width of fifteen inches. The bore size is one inch. The rotation can be set in both clockwise and counter-clockwise directions. It is made from galvanized steel for durability.

• Diameter: Thirteen point one nine inches
• Bore Size: One inch
• Speed: One thousand one hundred RPM

Product Highlights

This blower wheel is ideal for air conditioning and heating systems.

Product Information

Standard Information

• Manufacturer: Lau
• Type: Belt Drive, Double Inlet

Technical Specifications

• Finish: Galvanized
• Rotation: Both CCW/CW
• Bore Size: One inch
• Keyway Size: One quarter by one eighth inch
• Maximum Operating Temperature: Two hundred degrees Fahrenheit
• Application: Air Conditioning and Heating
